Idle Air Control Kit – Billet 2 Port Housing With 2 Screw Style Motor Diameter: 10mm (3/8″)

Precision Idle Management: Billet 2-Port Idle Air Control (IAC) Kit

Maintaining a stable idle in a high-performance engine is a complex task for any standalone ECU integration. Aggressive camshafts, high-flow injectors, and varying electrical loads (like cooling fans) all conspire to stall the engine at low RPM. The Idle Air Control Kit – Billet 2 Port is the professional solution for remote idle management. Featuring a CNC-machined billet aluminum housing and a high-precision 10mm (3/8″) screw-style stepper motor, this kit allows the ECU to bypass the throttle blades with surgical accuracy. This ensures a rock-steady idle whether the engine is cold-starting or idling in gear after a high-load track session.

Engineering Principles: Stepper Motor Airflow Logic

The heart of this kit is the 4-wire bipolar stepper motor. Unlike simpler solenoid-based IACs that are either open or closed, a stepper motor moves in tiny, incremental “steps.” This Analogue-to-Digital interface (via the ECU’s stepper control channels) provides thousands of positions for the internal pintle. The 2-port billet housing is designed to be mounted remotely, which is critical for engines using individual throttle bodies (ITBs) or custom intake manifolds where a standard IAC cannot be mounted. By plumbing the two ports to a common vacuum manifold, the ECU can regulate the exact amount of “bypass air” needed to maintain the target RPM. The billet construction ensures that the housing won’t warp or leak under high vacuum, providing a permanent solution for fuel map calibration stability.

Operational Benefits for High-Performance Tuning

A properly configured IAC system is vital for drivability. With this kit, the tuner can program “Idle Up” targets for air conditioning, power steering, or high alternator loads. During fuel map calibration, the ECU can use the IAC to prevent RPM “dips” when coming to a stop, a common issue with lightweight flywheels. Furthermore, the screw-style motor provides a positive mechanical seal when closed, preventing unwanted air leaks that could lead to a “hanging” idle. This level of control is essential for LS-swap, 2JZ, and RB26 builds that need to behave like a factory car during daily driving while still producing four-digit power numbers.

Installation and Harness Integration

This kit is designed for universal application and includes a high-quality plug and pins for seamless harness integration. The 4-wire motor must be wired to the dedicated IAC stepper outputs on a Haltech Elite or Nexus series ECU. The billet housing features 2 ports that are typically plumbed using 3/8″ or -6 AN lines to the intake plenum. It is important to ensure that the air being bypassed is filtered, typically by drawing air from the intake pipe before the throttle body but after the air filter. The compact design and robust mounting holes allow the unit to be tucked away in the engine bay for a clean, professional look.

Technical Specifications

Summary & Includes

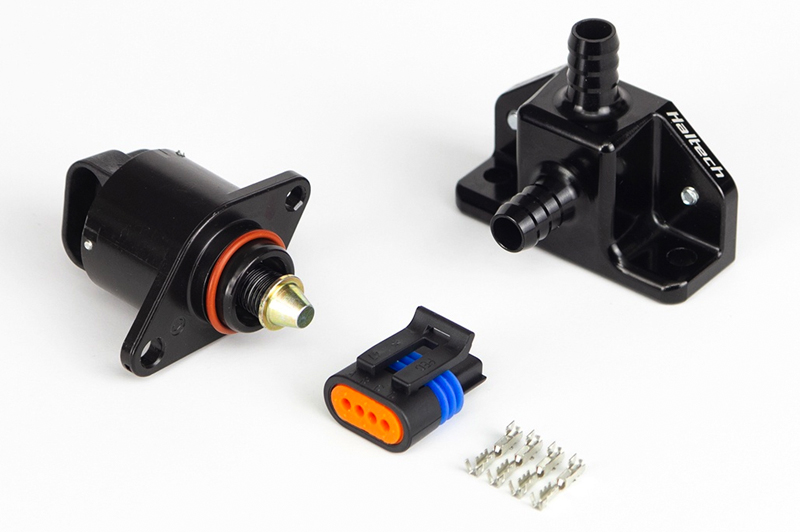

The Idle Air Control Kit is the definitive solution for remote idle management. Includes: Billet Housing, Stepper Motor, and Matching Plugs/Pins for wiring. Note: Remote plumbing requires additional hoses and fittings based on your manifold setup.
