Knock Sensor – Genuine Bosch

Engine Sentinel: Genuine Bosch Knock Sensor

In the high-stress environment of high-boost or high-compression engines, detonation is the single greatest threat to mechanical longevity. The Genuine Bosch Knock Sensor is the industry’s most trusted piezoelectric sentinel, providing the high-fidelity acoustic feedback required for professional detonation protection. Unlike cheap imitations, this Bosch sensor is engineered to filter out the benign mechanical “noise” of the engine, allowing the standalone ECU integration to identify the specific frequency spikes associated with abnormal combustion. It is a critical component for tuning RB26, 2JZ, and K-swap engines, where operating near the knock limit is necessary to extract maximum power.

Engineering Principles: Piezoelectric Resonant Detection

The Bosch knock sensor operates on the Piezoelectric principle. Inside the sensor, a specialized ceramic element generates a micro-voltage signal in response to mechanical vibration. This signal is sent to the ECU’s knock monitoring circuit, where it is analyzed within a specific frequency window (typically 5kHz to 15kHz). This Analogue-to-Digital interface allows the ECU to differentiate between normal valvetrain chatter and the high-energy pressure waves of detonation. Because this is a genuine Bosch unit, the frequency response is consistent and repeatable, ensuring that your Ignition Timing map is protected by a reliable and deterministic safety layer. Proper installation using an 8mm (5/16″) mounting bolt is critical to maintain the correct acoustic coupling to the engine block.

Operational Benefits for Force Induction Tuning

Integrating a Genuine Bosch Knock Sensor into your Haltech Elite or Nexus system allows for closed-loop knock control. During fuel map calibration, the tuner can set individual cylinder knock thresholds. If the sensor detects a ping, the ECU can instantly retard timing on that specific cylinder and increase fuel enrichment to cool the combustion chamber. This proactive strategy is vital when using closed-loop boost control to push a turbocharger to its limit. By using this sensor, tuners can safely navigate the “gray area” between peak power and engine failure, providing the driver with a safeguard against poor fuel quality or unexpected high-intake temperatures.

Fitment and Harness Integration

This sensor features a universal mounting design that suits an 8mm (5/16″) mounting bolt. It is essential to torque the sensor to the manufacturer’s specification (typically 20Nm) to ensure the frequency detection remains accurate. The sensor includes the matching plug and 2 pins, facilitating a professional harness integration that meets motorsport standards. For engines like the LS-swap, which can be noisy, using two Bosch sensors (one on each bank) is the recommended strategy for maximum resolution. The high-temperature housing ensures that the sensor maintains its sensitivity even in the most demanding endurance racing environments.

Technical Specifications

Summary & Includes

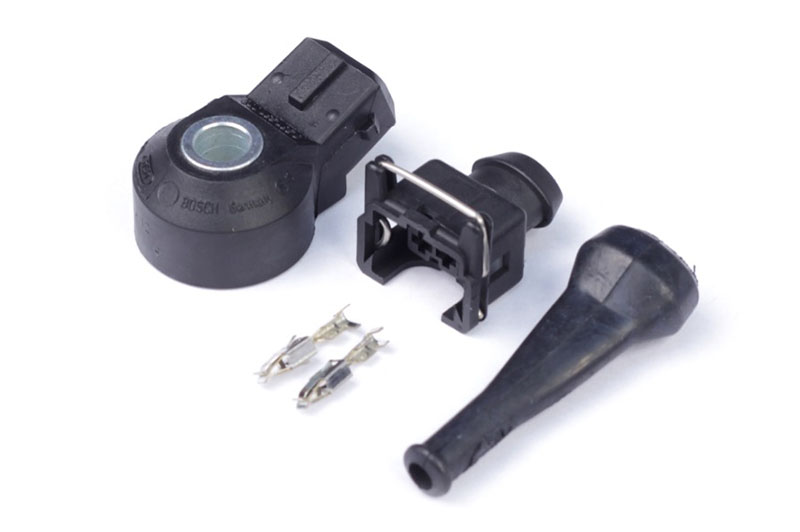

The Bosch Knock Sensor is the definitive safeguard for high-performance engines. Includes: 1 x Genuine Bosch Sensor and matching connector/pins. Note: Crucial for implementing closed-loop knock protection in any standalone engine management system.
