Overview
This product is for Racing Competition only and is not legal for use in
highway or
street vehicles or other non-racing competition off-road vehicles.
Purchasing this product requires you to sign our Vehicle Compliance Waiver here.
The KTunerFlash V2 Unit is the new All-In-One solution from KTuner for your Honda Accord 1.5L Turbo. This tool allows you to flash your ECU to a high performance tuning map as well as revert back to stock. In addition, KTuner also allows full access to software for those that want to play with custom tuning themselves. With their dyno proven maps, easy to use flashing device, and ability to customize, the KTuner flashing tool is an amazing product for you!
Performance Gains:

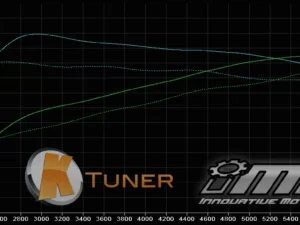

- Stage 1 – +30whp | +40ft/lbs

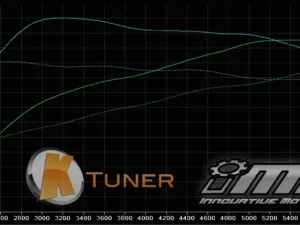

- Stage 2 – +55whp | +58ft/lbs
What tunes will be included?
- Stage 1 (CVT and MT):
- Improved throttle response
- Removed throttle dampening on low end, better performance off the line
- Reduced turbo lag
- Improved low-end and midrange torque
- Boost level adjusted
- Smooth torque delivery throughout the rev range
- Up to 38 lb-ft of torque increase over factory
- Up to 30whp increase over factory
- 17whp peak-to-peak
- Producing a much more sporty feel, drivability, and additional power throughout the RPM range!
- Stage 1 Dual Tune (CVT and MT):
- Improved throttle response
- Removed throttle dampening on low end, better performance off the line
- Reduced turbo lag
- Improved low-end and midrange torque
- Factory boost targets with low RPM dampening in ECO mode
- Boost level adjusted in normal and sport
- Up to 40 lb-ft of torque increase over factory
- Up to 30whp increase over factory
- 17whp peak-to-peak
- Smooth torque delivery throughout the rev range
- Producing a much more sporty feel, drivability, and additional power throughout the RPM range!
- Stage 2 (CVT and MT):
- Improved throttle response
- Removed throttle dampening on low end, better performance off the line
- Reduced turbo lag
- Improved low-end and midrange torque
- Boost level adjusted
- Up to 58 lb-ft of torque increase over factory
- Up to 55whp increase over factory
- 32whp peak-to-peak
- Producing a much more sporty feel, drivability, and additional power throughout the RPM range!
- Stage 2.0 Dual Tune (CVT and MT):
- Improved throttle response
- Removed throttle dampening on low end, better performance off the line
- Reduced turbo lag
- Improved low-end and midrange torque
- Factory Boost targets with low RPM dampening in ECO mode
- Boost level adjusted in normal and sport
- Up to 58 lb-ft of torque increase over factory
- Up to 55whp increase over factory
- 32whp peak-to-peak
- Producing a much more sporty feel, drivability, and additional power throughout the RPM range!
- Stage 2.1 Dual Tune (CVT and MT):
- Improved throttle response
- Removed throttle dampening on low end, better performance off the line
- Reduced turbo lag
- Improved low-end and midrange torque
- Boost level adjusted
- Stage 1 Boost targets in ECO mode
- Up to 40 lb-ft of torque increase over factory
- Up to 30whp increase over factory
- 17whp peak-to-peak
- Stage 2 Boost targets in Normal/Sport
- Up to 58 lb-ft of torque increase over factory
- Up to 55whp increase over factory
- 32whp peak-to-peak
- Producing a much more sporty feel, drivability, and additional power throughout the RPM range!
Notes:
- Running 91+ will give the best results.
- Flash back to stock at anytime.
How does the KTuner Touchscreen Work?
The KTunerFlash V2 features a 5″ touchscreen display that can show essential sensor data in real-time as a digital dash display. Though it’s meant as a handheld a simple Dual-T bracket can be added to allow mounting on a variety of inexpensive Dual-T mounts. Through a simple to use touch interface you can choose between different layouts, multiple data items, and even color options on layouts that support color changes.
Via full integration with our KTuner Tuning Software you are able to load the factory tune and multiple custom tunes to the KTunerFlash V2 allowing you to switch tunes without the need for a laptop. Easily flash back to factory with the touch of the screen. If you’re making quick changes or on the dyno you can also flash through the KTunerFlash V2 without having to upload the tune first.
5 Programmable LEDs can be set to show any combination of colors (RGB) and even allow for fading between a start and end color based on your settings. Customizable intensity settings for each breakpoint allow you to fade in or out at your desired breakpoints. Warnings allow an LED to flash rapidly to easily grab your attention. This can be used for shiftlights, an overheat warning, overboost warning, and other options.
KTunerFlash V2 features On Board Logging With Programmable On/Off Parameters for recording datalogs without a laptop! We allow up to 1000 datalogs to be recorded with no limit on length, so you’ll never miss a beat. Quickly enable or disable on board logging from the menu and once your parameters are met it will record all essential data for later review.
KTunerFlash V2 has built-in bluetooth integration. With a supporting app, like TunerView for Android ($5), you are also able to add additional gauge integration for real-time data display and more. The TunerView app allows you to use your Android device as a video camera and overlay real-time data from the KTunerFlash V2.

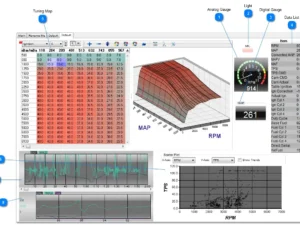

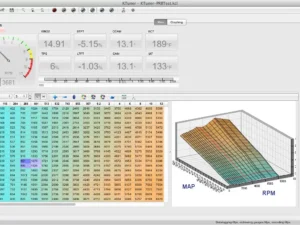

About the KTuner Tuning Software:
The KTuner software is a tabbed layout including a drop down list of parameters. This allows easy maneuvering around parameters and tuning layouts. Free to Download Here.
Product Features:
- 5″ Touch Screen Display.
- Real-Time data display with multiple layouts.
- Easy to navigate menu system for settings.
- Store multiple tunes, including factory. Flash saved tunes without the need for a laptop.
- Note: Tunes are still created with the KTuner PC software.
- On Board Logging, record datalogs without the need for a laptop.
- 5 Programmable LEDs (RGB) for shift lights, warnings, etc.
- Bluetooth connectivity for peripherals and the TunerView Android app.
- This unit is locked to one ECU and allows you to alter the settings in your ECU.
- Return to factory at any time and unlock the unit to resell.
- This allows datalogging and reflashing right over your factory OBD2 port!
- Extended data parameters available on certain vehicles.
- Diagnose any Honda/Acura CAN vehicle, even when already locked to a vehicle.
- KTuner uses USB connectivity for fast data transfers.
Current Supported ECUs:
- For latest KTuner Accord 1.5L Turbo Updates – Click Here
| North America | ||
| 2018 | MT | 37820-6A0-A01 through A06 |
| CVT | 37820-6A0-A61 through A66 | |
| 37820-6A0-A71 through A76 | ||
| 37820-6A0-A81 through A86 | ||
| 37820-6A0-C71 through C76 |
Help Videos:
Other Part Numbers:
KTuner #454.3
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle | Model | Year |
|---|---|---|
|
2018-2019 Honda Accord | Accord | 2018-2019 |
About Brand
Who is KTuner?
Back in the day, tuning a vehicle was done using some basic shop tools like a screwdriver. You can adjust the carburetor by turning a few screws, and you are good to go. But as automotive technology evolves, so is the tuning equipment. Nowadays, modern vehicles require a special tool for you to fine-tune your vehicle to its optimum performance. It is what KTuner offers.
KTuner is an ECU research and development solution for late model J, K, L, and R series vehicle applications. KTuner can be applied by part manufacturers in order to achieve C.A.R.B. and E.O. certifications.
It can also be used by individual developers working under new development exemptions from the Library of Congress’s Copyright Office, allowing them to delve into the software that runs on a given property or automobile for R&D reasons. This particular software is for offroad use only.
Designed For Racing
Many of KTuner’s products are also solely intended for racing competition only. They are not legal for use in highway or street vehicles or other non-racing competition offroad vehicles. Vivid Racing will have a memo under the specific product saying so, and purchasing such an item will require you to sign our Vehicle Compliance Waiver.
What Can You Do with a KTuner?
KTuner grants the ability to properly tune your vehicle’s ignition, cam angle, fuel, and additional parameters to meet particular emissions standards. The advantage of today’s tuning equipment is that you can adjust your car’s tune based on your requirement.
Unlike carburetors, where you are limited to what the fuel mixture screws can provide, modern tuning equipment can adjust all vehicle parameters. With just a few touches of a button, you can have endless tuning capability perfect for those who want the best out of their vehicle.
Your Tuning Expert
When paired with essential data logging factors at high speeds, KTuner can be used to test and develop multiple vehicle platforms in the development of emissions-compliant, legal aftermarket performance products.
To summarize, these tuning systems not only lock a vehicle’s full potential but also allow you to run parts that you otherwise may not have been able to use. It includes high-flow intakes and downpipes or even full turbo systems.
For Normally Aspirated And Turbo Cars
For cars already equipped with a turbo, you can merely raise the boost to give you some serious gains without breaking the bank. You can also extend the RPM limits and remove a vehicle’s speed governor. With a KTuner, you can also tune your car for increased horsepower and more efficiency (with a better mpg). The options are virtually limitless, as some vehicles have even implemented selectable tunes with just the flip of a switch.
Find KTuner Products at Vivid Racing
If you are in the market for precision tuning equipment, you have come to the right place. To know more about KTuner and what they can offer, visit Vivid Racing. We have a wide array of KTuner ECU flash kits for several different vehicle applications.
If you cannot find what you are looking for or have questions regarding which tuner is suitable for you, please call our parts specialist at (480) 906-4066. We are here to guide you through the purchase process and make it a pleasant experience. Don’t hesitate; call today and see what a KTuner can do for you and your car.
