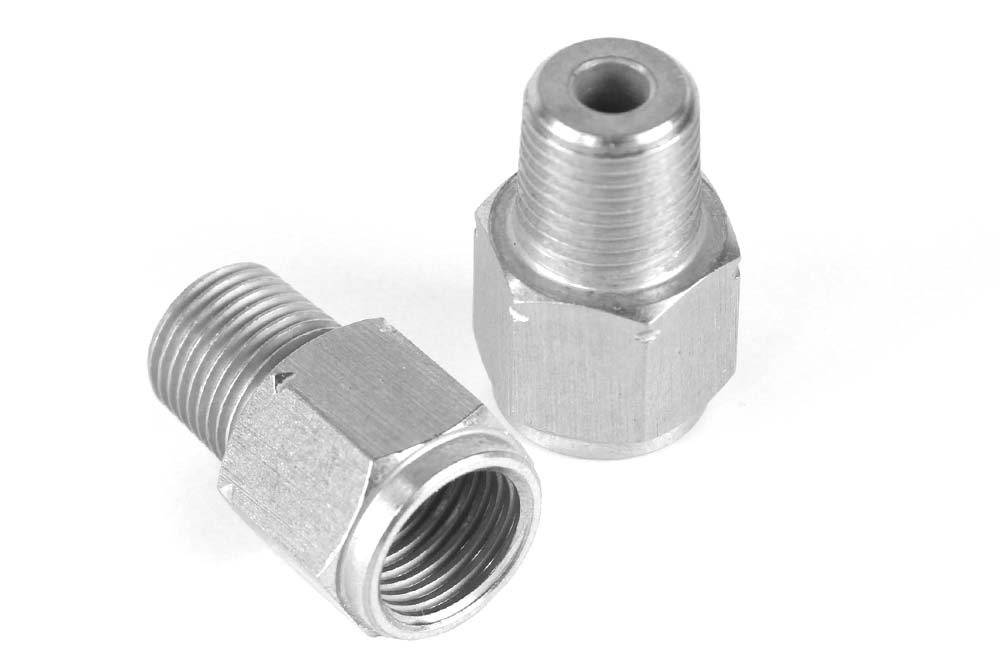

M10 x 1.0 to 1/8 NPT Adaptor Thread: M10 x 1.0 Female to 1/8NPTF Male

Thread Standard Conversion: M10 x 1.0 to 1/8 NPT Adaptor

Interfacing modern sensor technology with various engine blocks often requires a precise thread conversion. The M10 x 1.0 to 1/8 NPT Adaptor is a specialized plumbing component designed to bridge the gap between European/Japanese metric standards and the industry-standard 1/8″ NPT profile. This specific adaptor is the recommended hardware to suit the Bosch Fluid Pressure and Temperature Sensor (HT-010920). In a professional standalone ECU integration, having a stable, leak-proof mechanical interface is foundational for achieving accurate fuel map calibration and engine protection readings.

Engineering Principles: Metric to Imperial Transition

The M10 x 1.0 metric thread is a common standard for European (BMW, VW/Audi) and Japanese (Toyota, Nissan) oil galleries. However, most performance sensors, including the Haltech TI Pressure range, utilize 1/8 NPT threads. This adaptor provides a 1/8 NPTF Male to M10 x 1.0 Female conversion, allowing for a compact and direct installation without the need for complex tee-fittings. Manufactured from high-tensile materials, the adaptor ensures that your oil pressure and coolant temp data is transmitted without signal artifacts caused by mechanical play or fluid leaks. This is vital for maintaining detonation protection through accurate load sensing in high-power LS-swap or 2JZ builds.

Operational Benefits for Bosch Dual Sensors

The primary use case for this adaptor is the installation of the Bosch Fluid Pressure and Temperature Sensor (HT-010920). This sensor provides a dual Analogue-to-Digital interface, reporting both parameters through a single port. By using this adaptor, the tuner can install this high-end Bosch sensor into any M10 x 1.0 port found on modern engine blocks or oil filter housings. In a standalone ECU integration, this allows for the real-time monitoring of oil health and pressure drop across filters, enabling sophisticated safety logic and driver alerts on the iC-7 Digital Display. The precision-machined threads prevent the galling and stripping that can occur with poor-quality hardware in aluminum engine components.

Installation and Component Requirements

This kit includes 1 x M10 x 1.0 to 1/8 NPT Adaptor. During installation, it is critical to use a copper crush washer on the metric male end (if applicable) and a high-quality thread sealant on the NPT side to ensure absolute pressure integrity. The 1/8 NPTF (Fuel) designation ensures a Dryseal connection, which is paramount for safety in fuel-pressure monitoring systems. It is universally compatible with any 1/8 NPT sensor requiring an M10 interface. Proper installation ensures that your harness integration remains neat and professional, with the sensor securely mounted to provide the definitive data required for Maximum Brake Torque (MBT) timing.

Technical Specifications Table

Summary & Includes

The M10 to 1/8 NPT Adaptor is the vital link for installing modern Bosch sensors in metric galleries. Includes: 1 x Thread Adaptor. Note: Specifically optimized for use with the Bosch Fluid Pressure and Temperature Sensor HT-010920.
