Nexus PD16 Tube Mount Kit 31.75mm (1.25″) Diameter: 31.75mm (1.25″)

Nexus PD16 Tube Mount Kit (1.25″): Compact Cage Integration

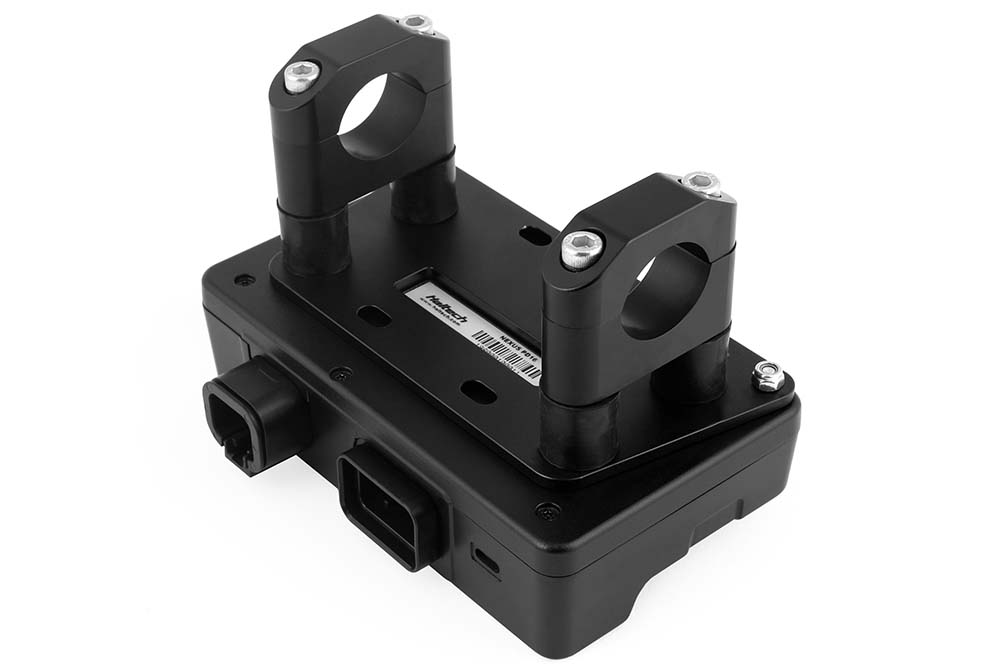

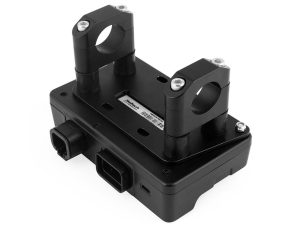

The Nexus PD16 Tube Mount Kit 31.75mm (1.25″) provides a robust mounting solution for the Haltech PD16 Power Distribution Module, tailored for smaller diameter tubing often found in dash bars, strut braces, or powersports roll cages (SxS/UTV). Proper mounting of power distribution electronics is essential to prevent fatigue failure of internal components and wiring connectors. This kit utilizes a decoupled mounting strategy, suspending the PD16 on vibration-absorbing isolators to ensure reliable operation in the harshest off-road and track environments.

Engineering for Durability

This kit addresses the specific need to mount the PD16 on 1.25-inch (31.75mm) tubes. The clamps provide a high-friction grip on the tube without crushing it, while the mounting plate serves as a rigid interface for the PDM. The inclusion of four M6 rubber anti-vibration mounts is the key engineering feature. These mounts absorb high-frequency energy generated by solid-mounted engines and suspension impacts, preventing that energy from transferring to the PD16’s solid-state electronics.

Operational Benefits

• Secure Fitment: Designed precisely for 1.25″ tubing, ensuring no slip or rotation under load.
• Component Protection: Vibration isolation prevents solder joint fatigue and connector fretting.
• Clean Installation: mounting directly to the chassis tube reduces wiring clutter and keeps the PDM accessible.

Fitment and Compatibility

• Device: Haltech Nexus PD16 PDM.
• Tube Size: 1.25 inches (31.75mm) OD. Common in UTVs, karts, and auxiliary cage bars.

Technical Specifications

Summary & What’s Included

Includes:

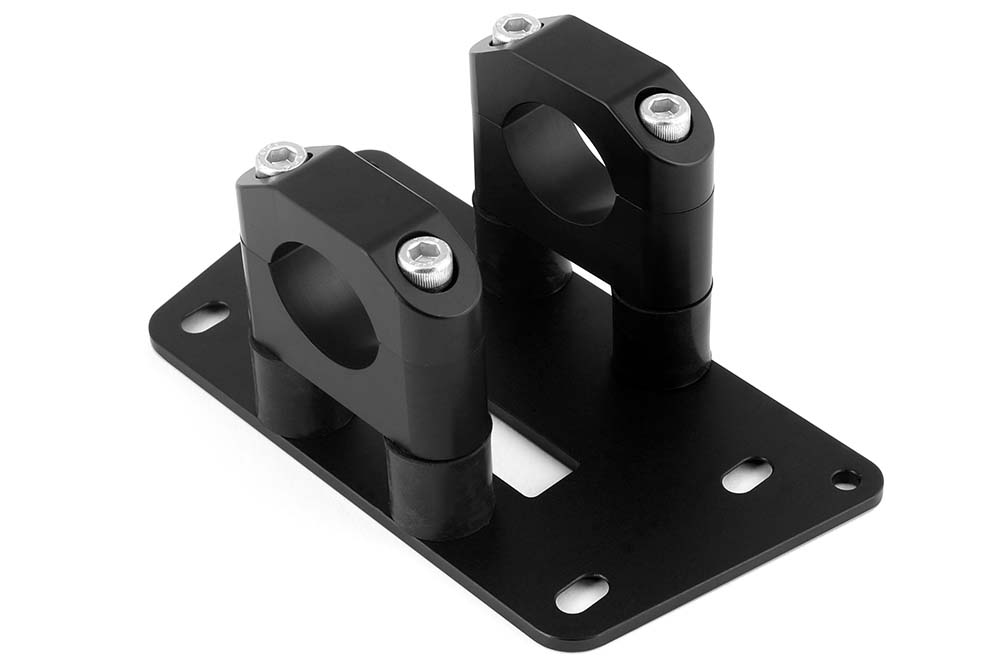

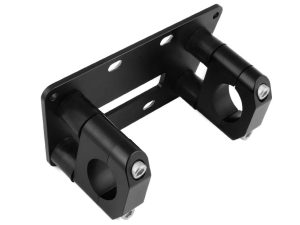

• 1 x Mounting Plate and Hardware
• 2 x 31.75mm (1.25″) Tube Clamps
• 4 x M6 Anti-Vibration Mounts
