Nexus Rebel LS – 6-pin DBW adaptor

Standard DBW Extension/Adapter for LS Engines

The Nexus Rebel LS – 6-pin DBW Adaptor is designed to connect the Rebel LS main harness to the standard 6-Pin GM Drive-By-Wire Throttle Body (LS2, LS3, LS7 car style). While the main harness typically breaks out for DBW, this adapter acts as a specific interface or extension to ensure the correct connector type (GT150 vs Metri-Pack variations) and pinout alignment for specific Gold-Blade or Silver-Blade throttle bodies.

Engineering Deep-Dive: Connector Specifics

GM used a few variations of the 6-pin connector. This adapter ensures that the Rebel LS ECU can drive the throttle blade motor and read the dual TPS signals accurately. It is essential for ensuring the correct “opening” direction and signal correlation.

Operational Benefits: Plug-and-Play

Ensures immediate compatibility with the most common high-performance LS throttle bodies.

Fitment and Application Scope

Suits:

• Throttle: GM 6-Pin DBW Throttle Body (LS2/3/7).
• Harness: Haltech Rebel LS Terminated Harness (HT-186500).

Technical Specifications

Summary & Includes

The HT-186505 connects standard 6-pin LS throttles to the Rebel LS.

Includes:

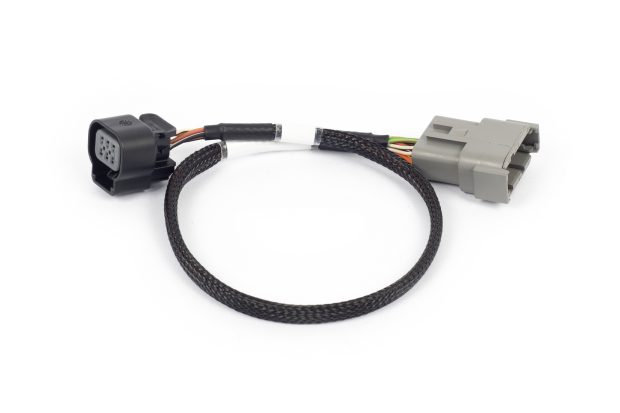

• 1 x 6-Pin DBW Adaptor Harness
