Nexus Rebel LS – Gen III Knock Sensor Adaptor

Gen III Knock Sensor Adapter for Rebel LS

The Nexus Rebel LS – Gen III Knock Sensor Adaptor is a critical component for using the Rebel LS Terminated Harness with older Gen III LS engines (LS1, LS6, LQ4, LQ9). The Rebel LS harness is designed natively for Gen IV engines which use two separate knock sensor connectors located on the side of the block. Gen III engines use two knock sensors located in the valley cover, wired into a single 2-pin connector. This adapter bridges that gap.

Engineering Deep-Dive: Sensor Integration

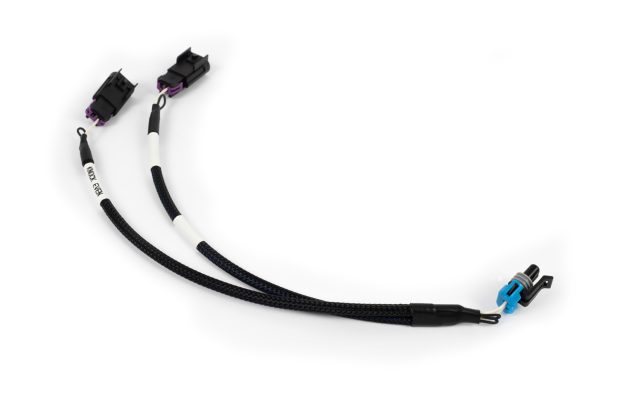

This Y-harness converts the two individual knock sensor plugs on the Rebel LS main harness into the single, specialized connector required for the Gen III valley cover harness. This allows the Rebel LS ECU to read the resonant frequency knock sensors found on the early LS engines without modifying the main loom.

Operational Benefits: Backwards Compatibility

This simple adapter allows the advanced Rebel LS ECU package to support the vast number of Gen III engines still in service, providing modern engine protection and tuning capabilities to these classic powerplants.

Fitment and Application Scope

Suits:

• Engine: Gen III GM LS (LS1, LS6, Truck).
• Harness: Haltech Rebel LS Terminated Harness (HT-186500).
• Location: Valley Cover Knock Sensors.

Technical Specifications

Summary & Includes

The HT-186508 is essential for Gen III LS owners using the Rebel LS system.

Includes:

• 1 x Gen III Knock Sensor Adaptor Harness
