Nexus S3 Plug ‘n’ Play Adapter Harness Nissan Patrol Y60

Nexus S3 Integration for the Legendary Y60 Patrol

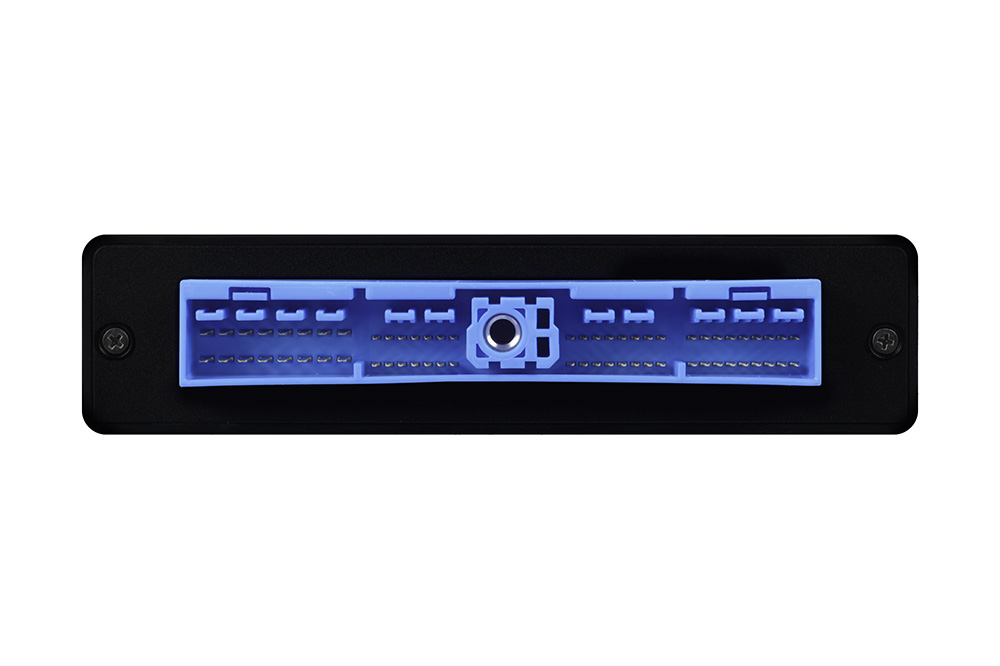

The Nexus S3 Plug ‘n’ Play Adapter Harness for Nissan Patrol Y60 brings the next generation of engine management to the classic GQ platform. Designed specifically for the TB42E electronic fuel-injected engine, this adapter harness connects the advanced Haltech Nexus S3 VCU directly to the factory wiring loom. This upgrade allows owners to bypass the limitations of the 1990s technology and utilize modern features like wideband O2 control, data logging, and advanced engine protection, all without cutting a single wire.

Engineering Deep-Dive: VCU Technology in a Classic 4×4

The Nexus S3 is a hybrid VCU (Vehicle Control Unit), combining the functions of an ECU and a PDM (Power Distribution Module). This adapter harness maps the TB42E’s sensors and actuators to the S3’s inputs and outputs. While the Y60’s factory wiring does not support the full PDM capabilities of the S3 directly (as it has its own fuse box), the S3’s advanced logic allows for superior control of the engine’s fuel and ignition. The adapter includes an auxiliary port, allowing you to wire in additional sensors or control high-current devices like thermo-fans directly from the S3, bypassing aging factory relays.

Operational Benefits: Reliability and Tunability

The Y60 Patrol is a workhorse, but its electronics are its Achilles heel. This adapter replaces the old ECU with a modern computer capable of real-time diagnostics and precise tuning. The switch to a MAP-based load reference (Speed Density) improves throttle response and eliminates the fragile flap-style airflow meter. The S3’s onboard wideband controller ensures the engine runs at optimal air/fuel ratios, protecting it during heavy towing or off-road crawling.

Fitment and Application Scope

Suits:

• Nissan Patrol / Safari Y60 (GQ): TB42E Engine Only.
• Transmission: Manual and Automatic.

Technical Specifications

Summary & Includes

The HT-186364 Adapter connects the cutting-edge Nexus S3 to the classic Y60 Patrol. It is the bridge between vintage iron and modern silicon.

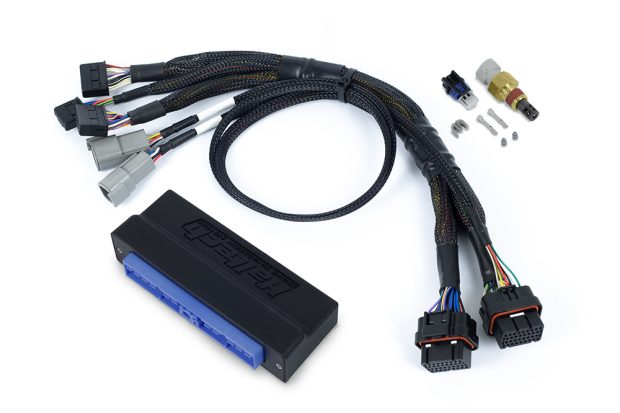

Includes:

• 1 x Nexus S3 Plug ‘n’ Play Adaptor Harness
• 1 x M14 x 1.5 Air Temp Sensor
• 1 x Auxiliary I/O Plug & Pins

Tech Tip: This adapter allows you to convert the distributor ignition to a coil-on-plug setup using the spare outputs, a highly recommended upgrade for turbo TB42s.
