Nexus PD16 PDM + Plug and Pin Set: The DIY Professional’s Choice

For the master wireman who prefers to build their own loom from scratch, the **Nexus PD16 PDM + Plug and Pin Set** is the ideal package. This kit provides the powerful Nexus PD16 Power Distribution Module alongside the raw connectors and terminals required to terminate your own custom harness. This approach allows for exact wire length tailoring, specific wire color choices, and the use of concentric twisting techniques for a Mil-Spec quality result. Note: The PD16 is an expansion module for **Haltech Elite and Nexus ECUs** and does not function as a standalone device.

Engineering: Solid State Power Management

The PD16 revolutionizes vehicle wiring by decentralizing power distribution. Instead of a central fuse box with heavy gauge wires running to every switch and load, the PD16 receives commands via CAN bus. It features robust self-protection against short circuits and over-temperature conditions. The included **Superseal 1.0** and **DTP** connectors are industry standards for ingress protection, ensuring that your connections remain corrosion-free even in wet or muddy environments.

Operational Benefits

• Custom Harnessing: Complete control over wire routing and specification.
• Weight Savings: Eliminate heavy relay blocks and redundant copper.
• Advanced Control: Enable PDM functions like wiper parking, indicator flashing, and progressive fan control through your Haltech ECU.

Fitment

• System: Requires Haltech Elite or Nexus ECU for control.

Technical Specs

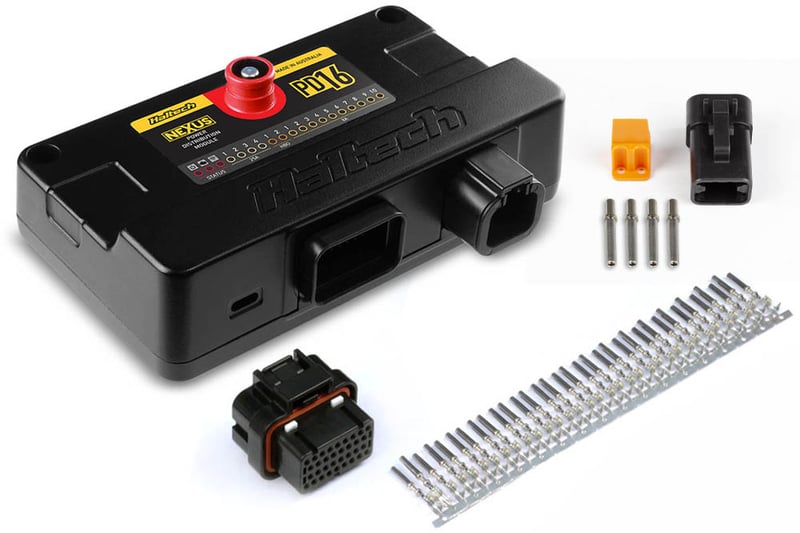

Summary & What’s Included

Includes:

• 1 x Haltech PD16 Unit
• 1 x 34 Pin Superseal Plug and Pins
• 1 x Deutsch DTP-06-4S Plug and Pins
• 1 x SurLok 120A Connector (Red)
