Pins only – Female pins to suit Male Deutsch DT Series Connectors

Deutsch DT Female Pins (16-20 AWG): The Standard for Motorsport

The Deutsch DT series is the most ubiquitous connector in modern racing and industrial wiring. The Haltech DT Female Pins are the socket terminals for these connectors, rated for 13 Amps. These pins are the go-to choice for terminating sensors, injectors, and low-to-medium current solenoids. Their solid-barrel construction (as opposed to stamped-and-formed) provides superior vibration resistance and reliability, ensuring that your sensor data remains noise-free and accurate.

Engineering: Solid vs. Stamped

Haltech supplies solid-barrel pins, which are machined from solid copper alloy stock. This design is vastly superior to stamped pins found in cheaper kits. Solid pins do not deform under crimping pressure in a way that compromises the connector seal, and they offer a much more consistent mating force. They are designed for 16-20 AWG wire, covering the vast majority of sensor and actuator wiring needs.

Fitment

• Connector: Deutsch DT Series (DT04/DT06).
• Position: Female (Socket).
• Wire Size: 16 – 20 AWG.

Technical Specifications

Summary & What’s Included

Includes:

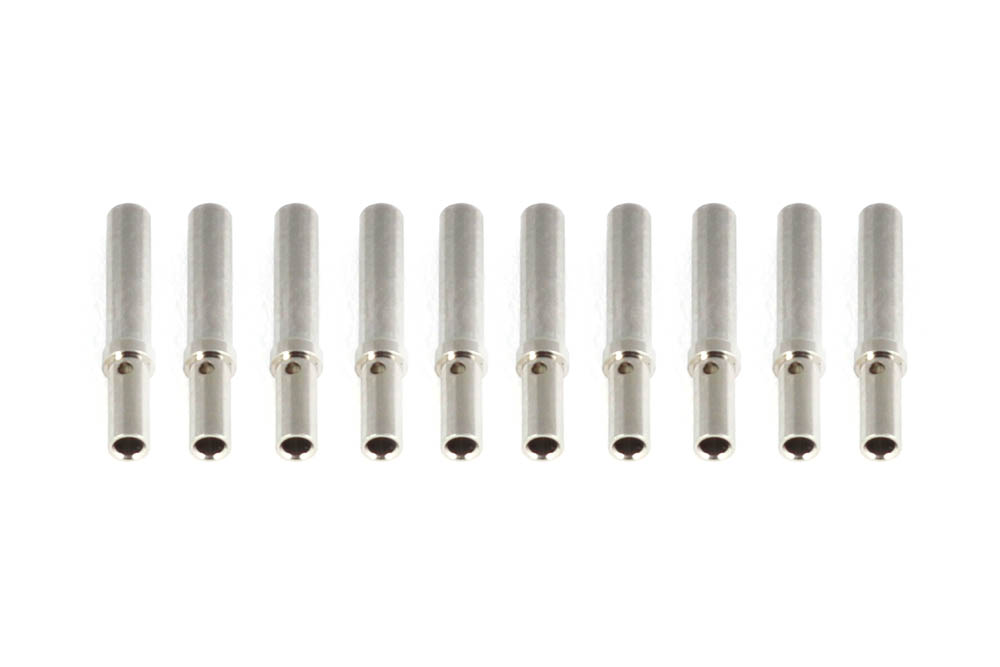

• 10 x Female DT Pins
