Plug and Pins Only – Bosch 3 Pin Junior Timer Female Connector

Signal Protocol Integrity: Bosch 3-Pin Junior Timer Connector

In high-end performance electronics, the integrity of the sensor connection is foundational to engine reliability. The Plug and Pins Only – Bosch 3 Pin Junior Timer Female Connector is the industry-standard electrical interface for a variety of critical powertrain sensors. Specifically, this connector suits the HT-010402 (Grey CW) and HT-010404 (Black CCW) Throttle Position Sensors. Utilizing genuine Bosch hardware ensures that your standalone ECU integration maintains a low-resistance path for the 5V reference and signal wires, which is critical for accurate fuel map calibration and detonation protection.

Engineering Principles: High-Retention Terminals

The Bosch Junior Timer series is engineered for the high-vibration environment of a performance engine bay. The 3-pin female housing uses a flat-blade terminal system that provides a large electrical contact surface area, which is vital for the Analogue-to-Digital interface (the TPS signal). This design prevents the micro-arcing and “signal jitter” that can occur when using inferior round-pin connectors. The housing is constructed from a high-temperature polymer that resists deformation up to 140°C, ensuring that the connector remains weatherproof and physically secure on the LS-swap, RB26, or K-swap throttle body.

Operational Benefits for Custom Loom Builders

For builders constructing custom looms or repairing a factory harness, this “Plug and Pins Only” kit is an essential component for achieving a motorsport-grade finish. It allows the installer to terminate the harness integration at the exact length required, eliminating the need for bulky pigtail adapters that can introduce EMI (Electromagnetic Interference). In a fuel map calibration scenario, having a pristine TPS signal is vital for the ECU to accurately calculate Load and Transient Enrichment. This connector set provides the modularity needed for fast sensor swaps during track events or dyno sessions.

Fitment and Integration Requirements

This kit includes a pack of 3 precision pins and the 3-pin Bosch female housing. It is designed to be a direct fit for Haltech-style throttle position sensors. For a professional result, it is mandatory to use a dedicated automotive terminal crimping tool to ensure a gas-tight mechanical and electrical bond. These connectors are fully compatible with Haltech Elite and Nexus terminated harnesses, allowing for seamless expansion of your vehicle’s sensor network while maintaining a professional look and feel.

Technical Specifications Table

Summary & Includes

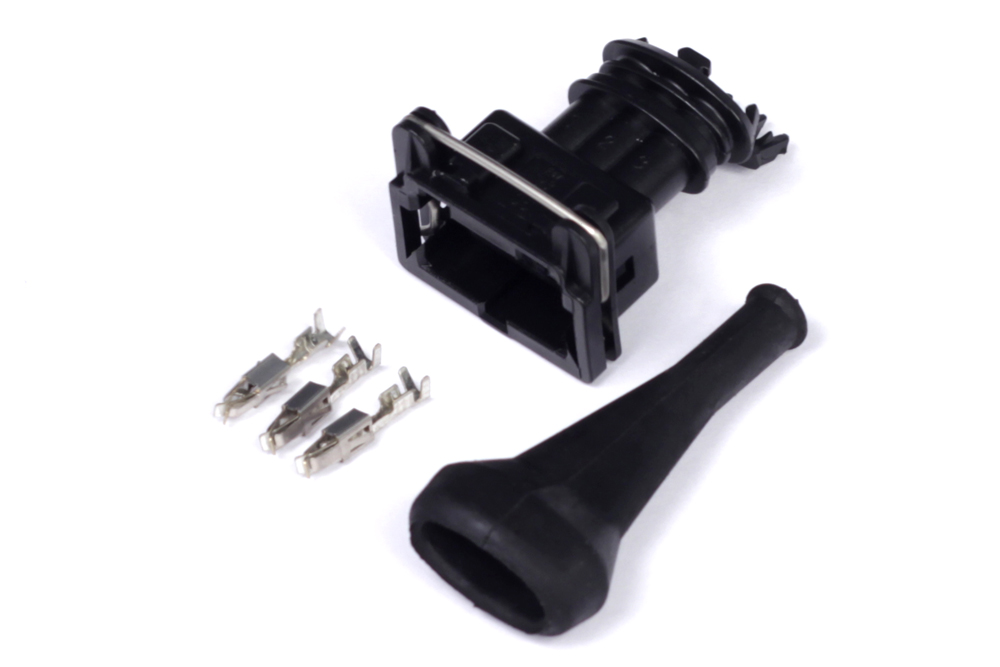

The Bosch 3-Pin Junior Timer set is the professional standard for TPS termination. Includes: 1 x 3-Pin Connector Housing and a Pack of 3 Precision Crimp Pins. Note: Essential for building reliable ignition and throttle harnesses on all high-performance platforms.
