Plug and Pins Only – Delco Weather Pack 3 pin GM Style MAP Sensor Connector – Orange

Electrical Interconnect Reliability: 3-Pin Delco Weather Pack Connector

In high-fidelity harness integration projects, the integrity of the MAP sensor connection is a critical point of failure. The Plug and Pins Only – Delco Weather Pack 3-pin GM Style Connector in its distinctive orange housing is the factory-original interface for standard GM 1-bar, 2-bar, and 3-bar MAP sensors. Specifically designed to suit the HT-010104 (3 Bar) and HT-010106 (4 Bar) GM MAP Sensors, this connector set ensures that your standalone ECU integration maintains a stable 5V reference and signal return path, which is foundational for achieving accurate fuel map calibration and detonation protection maps.

Engineering Principles: Cylindrical Terminal Security

The Weather Pack series utilizes a unique cylindrical pin-and-socket design that provides 360-degree contact surface area. This design is engineered to minimize electrical resistance and prevent the “signal jitter” common in standard blade-style connectors when subjected to high engine vibration. The housing is constructed from high-temperature polymer and features a triple-rib silicone seal that creates an IP67-rated barrier against moisture, oil, and fuel. This is critical for LS-swap or 2JZ builds where the MAP sensor is mounted near heat sources, as it prevents terminal corrosion—a primary cause of erratic idle and rich/lean fueling anomalies during fuel map calibration.

Operational Benefits for High-Performance Harnesses

For builders performing custom “flying lead” ECU installs or building motorsport-grade engine looms, this “Plug and Pins Only” kit provides the flexibility needed for a professional finish. It allows the installer to terminate the MAP signal wires at the exact length required, eliminating the need for unreliable pigtail splices which can act as a source of EMI (Electromagnetic Interference). In a standalone ECU integration, having a secure, weatherproof connection at the MAP sensor is vital for safety; if the ECU loses the manifold pressure signal, it can result in catastrophic timing errors under boost. The orange color coding provides quick visual identification for the engine’s primary load sensor circuit.

Fitment and Component Requirements

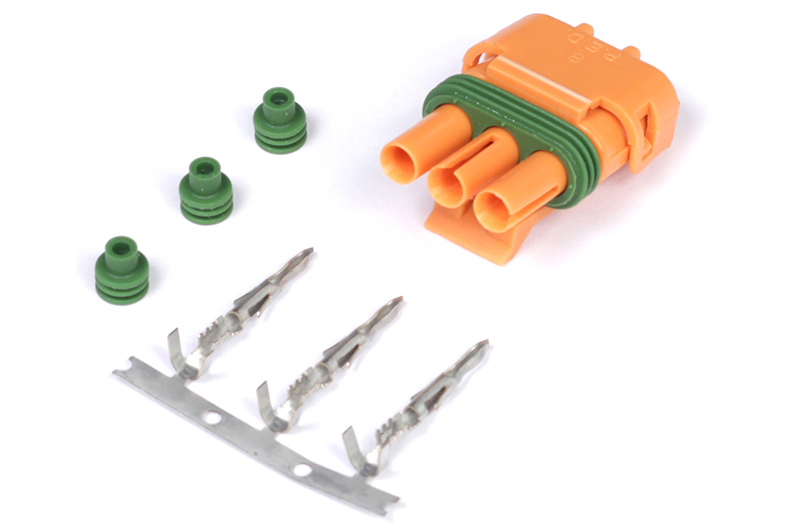

This kit includes a pack of 3 precision pins and the 3-pin orange Delco-style female housing. It is a direct fit for the widely used GM-style 3-bar and 4-bar MAP sensors. For a professional, gas-tight termination, it is mandatory to use a proper Weather Pack crimping tool to ensure the pin, seal, and wire are unified into a single mechanical bond. These connectors are fully compatible with all Haltech Elite and Nexus terminated harnesses, providing a modular and serviceable finish to any high-end racing electrical system. Proper installation ensures that the ECU’s Analogue-to-Digital interface receives the pristine signal required for Maximum Brake Torque (MBT) timing.

Technical Specifications Table

Summary & Includes

The orange Delco Weather Pack Connector is the prerequisite for reliable MAP signal termination. Includes: 1 x 3-Pin Connector Housing and a Pack of 3 precision pins. Note: Specifically designed for GM-style MAP sensor interfaces in high-performance environments.
