Plug and Pins Only – Delphi 2 Pin GM style Air Temp Connector (Grey)

Signal Fidelity in Thermal Management: Delphi 2-Pin IAT Connector

In the high-stakes environment of performance engine tuning, the integrity of sensor data is the bedrock of engine longevity. The Delphi 2-Pin GM-Style Air Temperature Connector is a precision-engineered interface designed specifically for Intake Air Temperature (IAT) and Manifold Air Temperature (MAT) sensors. In a standalone ECU integration, the IAT signal is a primary correction factor for the air-density calculation (Speed Density). A compromised connection here—due to heat-cycled plastics or corroded pins—introduces electrical resistance that the ECU interprets as a temperature shift. This can result in incorrect fuel map calibration and compromised detonation protection maps. By using genuine Delphi-spec components, you ensure that your LS-swap, 2JZ, or K-swap project maintains OEM-grade signal integrity under extreme conditions.

Engineering Principles: Metri-Pack Reliability and Thermal Resistance

The connector utilizes the Metri-Pack 150 series architecture, a standard in high-performance automotive electronics for its robust vibration resistance and environmental sealing. The housing is constructed from a specialized glass-reinforced thermoplastic that maintains its structural integrity at temperatures exceeding 125°C. This is critical in turbocharged applications where the IAT sensor is often mounted near hot intercooler piping or the intake manifold. The female terminals are precision-stamped from a high-conductivity copper alloy, designed to maintain a constant normal force against the sensor pins. This prevents “pin fretting,” a common failure where vibration causes microscopic movements that erode the terminal plating and create signal noise. For the professional tuner, this means a stable Analogue-to-Digital interface for more predictable engine management behavior.

Operational Benefits for Custom Harness Integration

When building a bespoke harness integration, the ability to terminate wires to exact lengths is essential for a clean, reliable engine bay. This kit provides the “Plug and Pins Only,” allowing the technician to use motorsport-grade Tefzel wire without the need for unreliable pigtail splices. In a fuel map calibration workflow, a clean IAT signal allows the ECU to accurately adjust the fuel mass for air temperature variations, ensuring the target Air-Fuel Ratio (AFR) is met from cold start to wide-open throttle. The grey color-coding matches standard GM IAT sensors (HT-010200, HT-010202, HT-010204), preventing confusion with the black coolant temperature connectors during assembly.

Fitment Guide and Integration Best Practices

This connector is a universal standard for GM-style temperature sensors. It is a direct fit for Haltech Air Temp Sensors with small threads, large threads, and 1/4 NPT threads. To achieve a professional finish, it is mandatory to use a dedicated Metri-Pack crimping tool to ensure a gas-tight mechanical and electrical bond. The integrated silicone cable seals provide an IP67 rating, protecting the connection from oil, fuel, and moisture ingress. This kit is a prerequisite for any professional LS-swap or 2JZ-GTE build utilizing standalone management systems like the Haltech Elite or Nexus series.

Technical Specifications

Summary & Includes

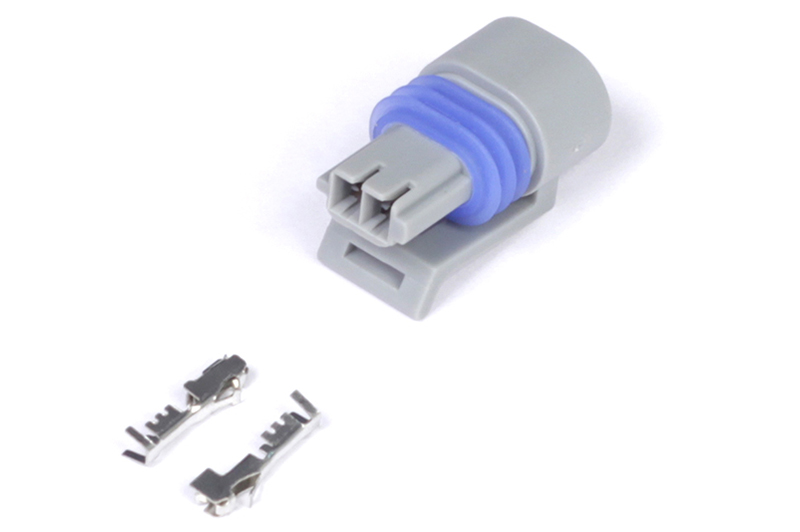

The Delphi 2-Pin IAT Connector is the professional choice for intake temperature circuit integrity. Includes: 1 x Grey Connector Housing and a Pack of 2 precision terminal pins. Note: Specifically designed for air temperature sensors to prevent cross-connection with coolant temperature circuits.
