Plug and Pins Only – Male Deutsch DTM-2 Connector (7.5 Amp)

Motorsport Interconnect Standards: Male Deutsch DTM-2 Connector

In high-fidelity harness integration, the reliability of every connector is the deciding factor in vehicle uptime. The Plug and Pins Only – Male Deutsch DTM-2 Connector is the industry-standard interface for low-current automotive sensors. Designed specifically to handle up to 7.5 amps, this connector is the primary electrical gateway for essential engine monitoring components such as the HT-010206 Air Temp Sensor and the HT-010304 Coolant Temp Sensor. Utilizing genuine Deutsch hardware ensures that your standalone ECU integration remains weatherproof and vibration-proof in the most demanding motorsport environments.

Engineering Principles: DTM Signal Reliability

The DTM series is engineered for high-density applications where weight and space are at a premium. The DTM-2 male housing included in this kit is constructed from high-temp, glass-reinforced nylon, preventing terminal “walk” under extreme thermal load. This is critical for the Analogue-to-Digital interface of temperature sensors; even a small increase in resistance at the connector can cause ECU Trouble Codes or incorrect fuel map calibration offsets. The kit features a Wedgelock Seal, which provides a positive mechanical lock for the pins and ensures that the connection remains IP68 waterproof, even when submerged or pressure-washed.

Operational Benefits for Custom Loom Builders

For the professional loom builder constructing a bespoke harness for an LS-swap, 2JZ, or K-swap, this “Plug and Pins Only” kit is an essential component. It allows for the termination of the harness side with a factory-sealed male plug that mates perfectly with Haltech sensors. By using these connectors, the builder ensures that EMI (Electromagnetic Interference) is kept to a minimum by maintaining a continuous and shielded signal path. The 7.5-amp rating provides significant headroom for temperature sensing, which typically only requires milliamps, resulting in a connection that will never reach its thermal limit during endurance racing.

Fitment and Integration Strategy

This male DTM-2 connector suits 1/8 NPT temperature sensors (HT-010206 and HT-010304). The kit includes the male plug, wedgelock seal, and female pins. It is important to note the configuration: the male housing typically uses female socket terminals to protect the pins on the sensor side from physical damage. For a professional result, it is mandatory to use a dedicated 4-indent or ratcheting crimp tool. This connector set is the standard for harness integration across all Haltech Nexus and Elite series ECUs, providing a modular and serviceable finish to any high-end racing electrical system.

Technical Specifications Table

Summary & Includes

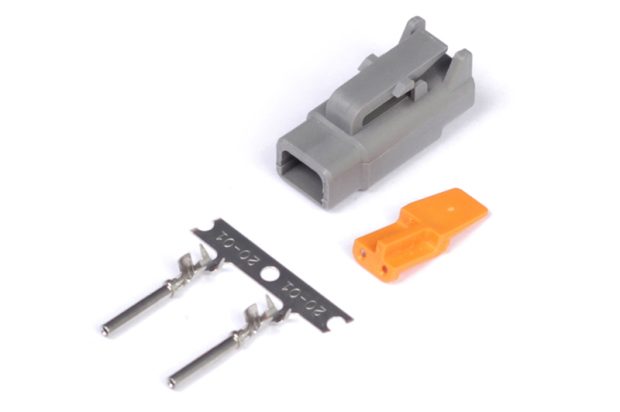

The Male DTM-2 Connector set is the professional prerequisite for sensor-side harness termination. Includes: 1 x Male DTM-2 Housing, 1 x Wedgelock, and a set of Female Pins. Note: Specifically designed to interface with Haltech 1/8 NPT temperature sensors. Always ensure pins are seated past the wedgelock for a secure connection.
