Electrical Integrity: Plugs and Pins for 2-Screw IAC Motors
In the process of harness integration or repair, the quality of the connector is as important as the sensor itself. The Plugs and Pins Only Kit for 2-Screw Style IAC Motors provides the professional-grade terminals and housing required to interface with standard GM-style idle air control valves. These motors are the backbone of idle management in many LS-swap and aftermarket throttle body applications. A poor connection at the IAC can lead to erratic idle, intermittent stalling, and difficult-to-diagnose “hunting” RPMs. This kit ensures that your standalone ECU integration features a secure, vibration-resistant connection that meets motorsport standards.
Engineering Standards and Material Quality
The connectors provided in this kit are manufactured to exceed OEM specifications for thermal resistance and moisture sealing. The housing is made from high-temp, glass-reinforced plastic, which prevents the connector from becoming brittle or cracking over time in the harsh environment of an engine bay. The internal pins are designed for high-cycle use, ensuring that electrical resistance remains negligible even after multiple disconnections during maintenance. This is critical for the 4-wire stepper motor signals, which rely on precise current pulses from the ECU to maintain the pintle position. A loose or corroded pin can cause the motor to “skip” steps, leading to an inaccurate idle speed that can frustrate the fuel map calibration process.
Operational Benefits for Custom Loom Construction
For builders constructing a custom “flying lead” harness or doing a standalone ECU integration, having the correct specialized plugs is essential for a “factory-plus” finish. This kit allows the builder to cut their harness to the exact length required, eliminating the need for messy adapters or pigtail splices. By crimping the pins directly onto the ECU’s stepper motor wires, you maximize signal integrity and minimize potential failure points. This is particularly important for 2-screw style motors, which are often mounted in high-vibration areas on the throttle body. The secure locking mechanism of the plug prevents accidental disconnection during spirited driving or track sessions.
Fitment and Tooling Requirements
This kit is specifically designed to suit the 2-screw style Idle Air Control motor, commonly found on GM LS engines and many aftermarket EFI throttle bodies (such as those from Holley or FAST). It is compatible with 4-wire stepper motor configurations. To achieve a professional-grade result, it is recommended to use a proper automotive terminal crimping tool. The pins are designed for 18-22 AWG wire, the standard for ECU signal wiring. Once assembled, the connector provides a weatherproof seal, protecting the sensitive electrical terminals from oil, fuel, and moisture ingress.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | IAC Stepper Motor Plug (2-Screw Style) |
| Configuration | 4-Pin Bipolar Stepper Interface |
| Housing Material | High-Temp Glass-Reinforced Nylon |
| Terminal Material | Tin-Plated Copper Alloy |
| Wire Gauge Compatibility | 18 – 22 AWG |
| Seal Type | Individual Wire Seals Included |
Summary & Includes

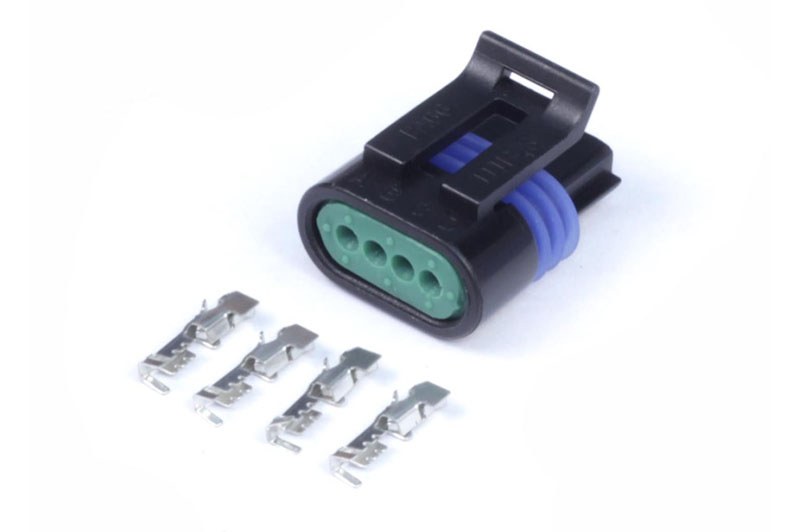

The IAC Plug and Pin Kit is the essential component for professional idle motor wiring. Includes: 1 x 4-Pin Connector Housing, 4 x Terminal Pins, and Wire Seals. Note: This is the electrical connector only; it does not include the IAC motor or housing.
