Overview

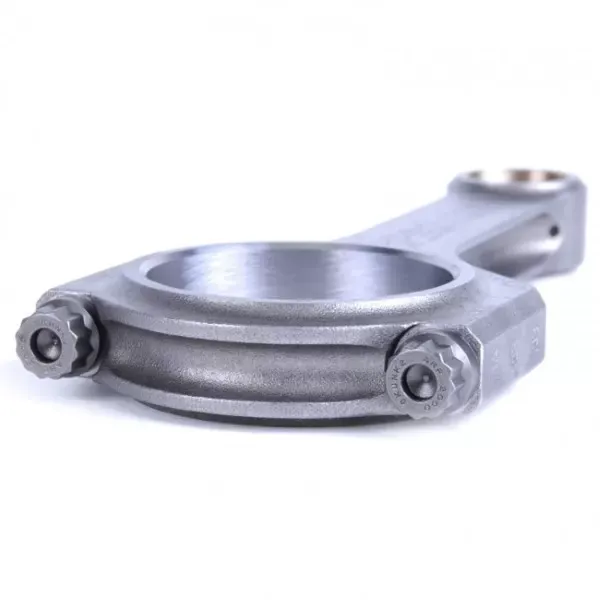

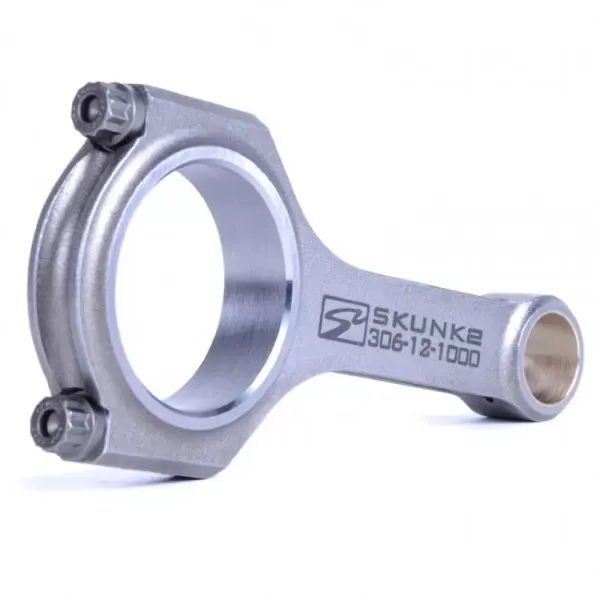

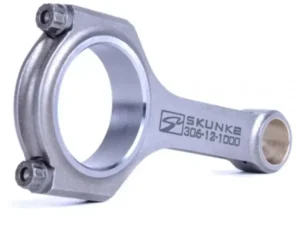

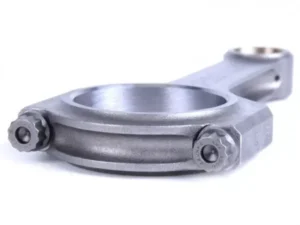

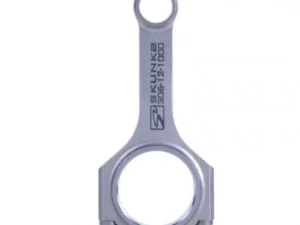

Skunk2 is proud to introduce its all-new Alpha Series Connecting Rods for the Subaru EJ25 engine.
Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications.
Skunk2’s engineers spent nearly three years developing and testing its straight H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2’s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary.
Features:
- Length: 130.59mm
- Weight : 535 Grams
- Set of 4
- Precision Machined
- 3/8-Inch ARP2000/Skunk2 bolts
- Shot-peened for reduced fatigue

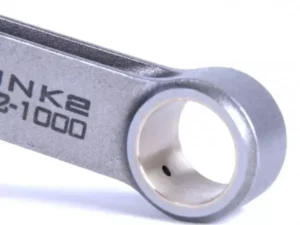

- Bronze wrist pin bushings
- Laser-etched Skunk2 logo for authenticity
- Fatter, H-beam design without drastic weight increase
- Pin end compatible with most aftermarket pistons without machining
- Not compatible with OEM style pistons.
- Dual-pin oil passages for increased lubrication and strength
- Balanced +/- 1 gram
- Magna-flux inspected
- Heat-treated
- FEA analyzed
Fitment:
- Subaru Baja (Turbo, Turbo) 04-06
- Subaru Forester (XT Limited, XT Premium, XT Touring, XT Limited, XT Premium, XT Touring) 04-13
- Subaru Impreza (WRX, WRX Limited, WRX Premium, WRX, WRX Limited, WRX Premium) 06-22
- Subaru Legacy (2.5GT, 2.5GT) 05-12
- Subaru Outback (XT Limited, XT Limited) 05-09
- Subaru WRX (Base, Limited, Base, Limited) 13-22
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle | Model | Year |
|---|---|---|
|
2004-2006 Subaru Baja | Baja | 2004-2006 |
|
2004-2013 Subaru Forester XT | Forester XT | 2004-2013 |
|
2006-2014 Subaru Impreza | Impreza | 2006-2014 |
|
2005-2012 Subaru Legacy | Legacy | 2005-2012 |
|
2005-2009 Subaru Outback | Outback | 2005-2009 |
|
2013-2022 Subaru WRX | WRX | 2013-2022 |
About Brand
Who is Skunk2?
Skunk2 is an aftermarket company that is widely recognized especially in the sport compact vehicles. Founded in 1994, they specialize in creating high-performance parts for vehicles such as Honda Civics and Integras. They were one of the first companies to provide aftermarket support to these vehicles, turning these once grocery-getters into competitive race cars. Today, Skunk2 has become the leader when it comes to manufacturing camshafts and other performance parts and has been the brand of choice by tuners all around the globe.
Paving The Way For High-Performance Sports Compact
The company has helped in shaping the way import vehicles are tuned today. They introduced the first cast aluminum high-performance intake manifold, composite fuel rails, and valve train components made from premium materials such as titanium which is unheard of during those days. Back in the 1990s, they are also considered as the first US-based company to offer CNC machined adjustable cam gears as well as billet camshafts.
High-Tech Facility
In order for them to continuously provide their customers with high-quality products, the company utilizes state-of-the-art equipment in manufacturing the parts that allow them to create products that can bring out optimum performance from any vehicle.
Motorsport Participation
The company actively participates in real-world motorsport racing in order for them to gather data that would allow them to further improve their parts and keep up with advancements in automotive technology. They have factory-backed cars in Road racing, Drag racing, drifting and time attack events.
Purchase Skunk2 Products at Vivid Racing
If you are in search of a product that would help you bring out the best from your import vehicle, then Skunk2 is the right brand for you. They have been working in the automotive industry for more than 30 years and have proven themselves to provide parts that actually improve the car’s performance. Because of their success, they were able to gain the trust of millions of enthusiasts and have become synonymous with high-performance. Visit Vivid Racing and check out the list of products that would fit your specific needs.
Warranty
Skunk2 Racing warrants all products to be free from defects in materials and workmanship for normal use and service, regardless of mileage, for a period of time not to exceed 12 months from the original date of retail purchase. Parts returned must be determined by Skunk2 Racing to be defective prior to any warranty credit or replacement is issued. Skunk2 Racing’s obligation under warranty shall be limited to repairing or replacing, at its discretion, any part proven defective. The customer must prepay transportation charges. Final determination of the suitability of the products for the use contemplated by the buyer is the sole responsibility of the buyer.
