Split Collar Shock Sensor Mount -3/4″ / 19.05mm Length: N/A

Compact Telemetry Precision: Split Collar Shock Sensor Mount (3/4″)

The Split Collar Shock Sensor Mount in 3/4″ (19.05mm) is the specialized hardware required for mounting telemetry instrumentation to small-diameter suspension components. Designed for use with linear position sensors, this mount is a foundational component for professional standalone ECU integration and data logging. For builders of lightweight K-swap open-wheelers or Rotary drift cars using compact coilovers, this mount provides a rock-solid, vibration-damped anchor, ensuring that your wheel travel and chassis angle data is reported with laboratory-grade accuracy.

Engineering Principles: High-Resolution Signal Stability

Clean telemetry data requires a mounting point that is immune to oscillation and slip. The 3/4″ split-collar mount is CNC-machined to provide a precise concentric fit around the 19.05mm shock body, ensuring that the sensor tracks the compression and rebound cycles perfectly. This is vital for the Analogue-to-Digital interface of a linear sensor; any movement in the mount would introduce signal noise, compromising the tuner’s ability to analyze tyre temperature data and damper performance. The billet construction acts as a thermal barrier, protecting the sensor from the intense heat of a competition engine bay, while the Nylon mounting bolts provide electrical isolation to minimize EMI (Electromagnetic Interference).

Operational Benefits for Lightweight Racing

Integrating 0.75″ shock mounts with a Haltech Elite or Nexus system allows for advanced Traction Control logic and aerodynamic rake management. In lightweight racing chassis where grip is limited, knowing the exact ride height allows the ECU to optimize power delivery via closed-loop boost control. If the sensors detect the vehicle “topping out” on travel, the ECU can be programmed to drop boost or retard Ignition Timing to stabilize the car. This level of proactive management is essential for detonation protection by ensuring the engine is never subjected to high loads during unstable chassis events. The discrete mount allows for a professional harness integration that meets motorsport standards.

Fitment and Integration Strategy

This mount suits 3/4″ (19.05mm) shock bodies and is designed to suit All Haltech Linear Position Sensors. The split design facilitates zero-disassembly installation, making it easy to add or relocate sensors during testing sessions. The kit includes the billet split collar and all necessary hardware: 1 x #8-32 and 1 x #10-32 machine bolts, along with the required Nylon sensor mounting bolts for electrical isolation. It is a universal performance component that integrates seamlessly into any Haltech-based data acquisition chain, providing the high-fidelity feedback required for winning track performance.

Technical Specifications

Summary & Includes

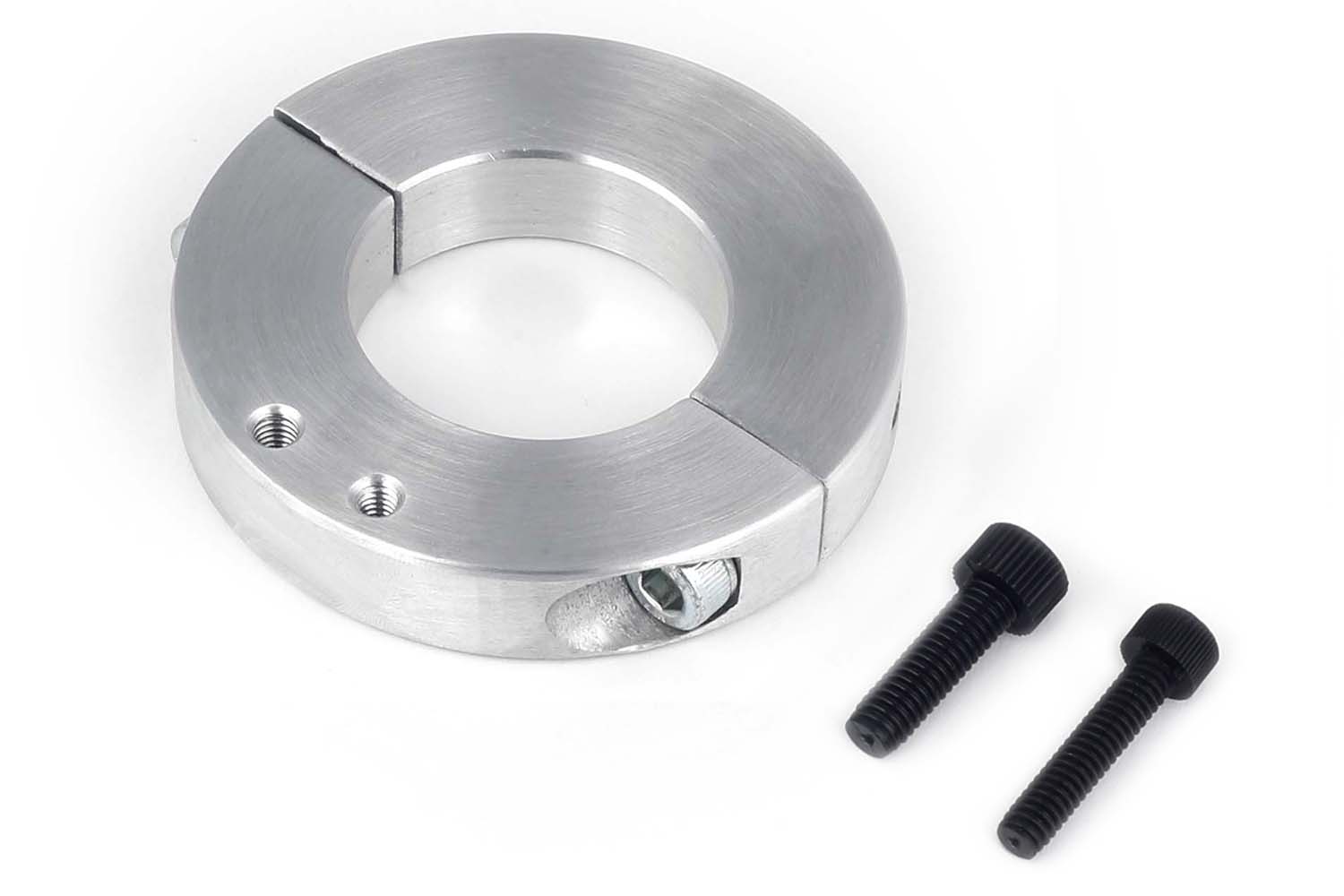

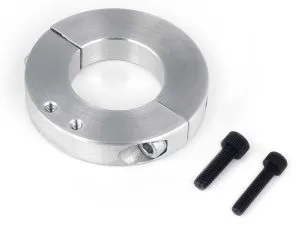

The 3/4″ Shock Sensor Mount is the definitive solution for small-diameter suspension telemetry. Includes: 1 x Split Collar, 1 x #8-32 Bolt, 1 x #10-32 Bolt, and Nylon sensor mounting hardware. Note: Verify suspension component OD with a caliper before purchase to ensure absolute mounting integrity.
