Split Collar Shock Sensor Mount -7/8″ / 22.225mm Length: N/A

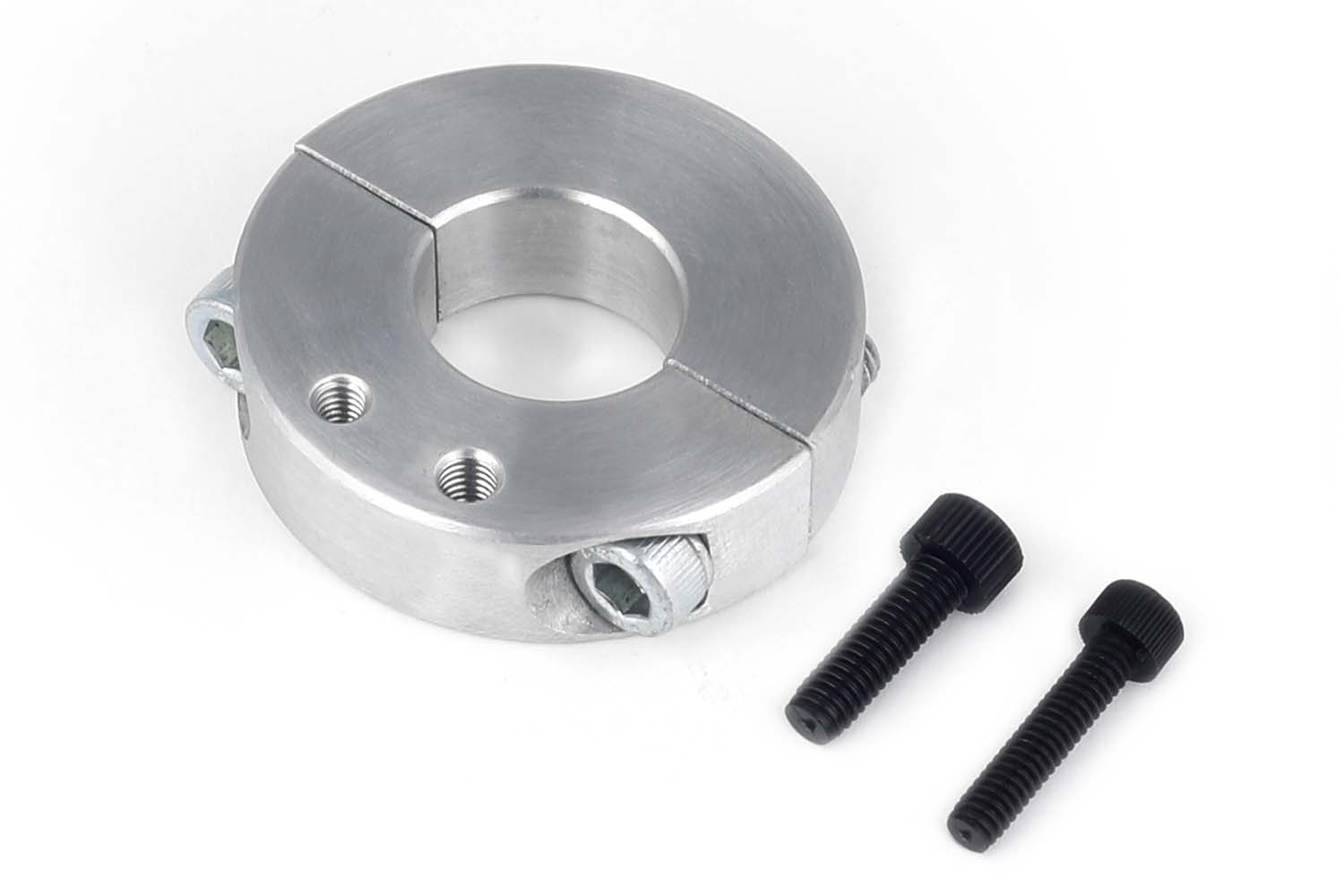

Precision Chassis Feedback: Split Collar Shock Sensor Mount (7/8″)

For vehicles using smaller diameter performance coilovers or steering components, the Split Collar Shock Sensor Mount in 7/8″ (22.225mm) provides a surgical-grade mounting solution for telemetry sensors. Designed for standalone ECU integration projects, this mount is a fundamental piece of the data acquisition chain, allowing the driver and tuner to monitor individual wheel travel and suspension events in real-time. Whether you are dialing in a high-revving K-swap time-attack car or a Rotary-powered build, this mount ensures that your linear position sensor signals remain stable and jitter-free under the most demanding conditions.

Engineering Principles: High-Retention Clamping Logic

The 7/8″ split-collar mount is engineered using a two-piece radial clamping logic, which ensures an absolute mechanical bond without the risk of slippage found in worm-gear style clamps. This rigidity is vital for the Analogue-to-Digital interface of suspension data; as the shock compresses, the sensor must track the movement with sub-millimeter accuracy. Any play in the mount would introduce signal noise, compromising the tuner’s ability to perform accurate fuel map calibration offsets for aerodynamic rake or load. The billet aluminum construction ensures that the mount is both lightweight and thermally stable, surviving the intense heat soak of a professional race engine bay.

Operational Benefits for Force Induction and Aero

Integrating 0.875″ mounts with a Haltech Elite or Nexus system allows for advanced closed-loop boost control strategies based on chassis load. In high-horsepower RB26 or 2JZ builds, the ECU can be programmed to increase boost as the front ride height stabilizes at high speed, indicating full downforce. Additionally, the included Nylon mounting hardware provides essential electrical isolation, preventing EMI (Electromagnetic Interference) from reaching the ECU’s sensitive inputs. This allows for a much cleaner tyre pressure and suspension travel data log, facilitating more informed tuning decisions and protecting the engine through load-based limiters.

Fitment and Component Integration

This mount suits 7/8″ (22.225mm) shock bodies and suspension components and is compatible with All Haltech Linear Position Sensors. The split design facilitates zero-disassembly installation, allowing for the addition of sensors to a fully assembled vehicle in minutes. The kit includes the billet split collar and all necessary hardware: 1 x #8-32 and 1 x #10-32 machine bolts, plus the Nylon sensor mounting bolts. It is a universal component that integrates perfectly into any professional harness integration, meeting the high standards required for track and circuit use.

Technical Specifications

Summary & Includes

The 7/8″ Shock Sensor Mount is the prerequisite for small-body suspension telemetry. Includes: 1 x Split Collar, 1 x #8-32 Bolt, 1 x #10-32 Bolt, and Nylon sensor mounting hardware. Note: Critical for professional telemetry in vehicles using 7/8″ damper bodies or steering links.
