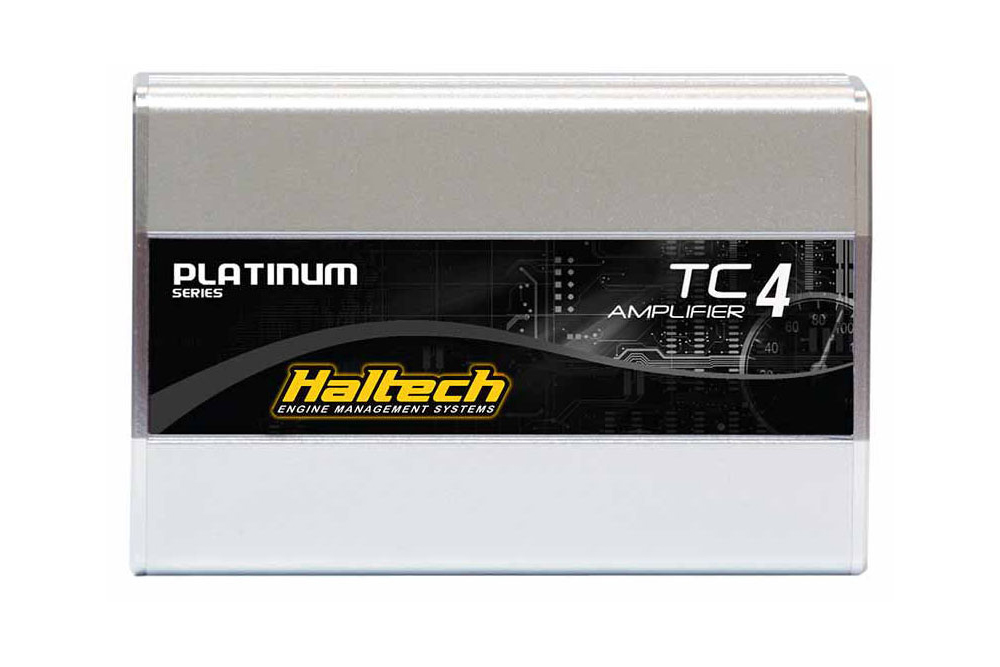

TCA4 – Quad Channel Thermocouple Amplifier (CAN ID – Box B)

High-Fidelity Multi-Channel Temperature Data Acquisition

The TCA4 Quad Channel Thermocouple Amplifier (CAN ID – Box B) is a professional-grade signal conditioning module designed to bring laboratory-precision temperature measurement to your vehicle’s CAN bus network. In high-performance applications, monitoring exhaust gas temperatures (EGT), cylinder head temperatures, or fluid temperatures is critical for engine longevity and tuning optimization. The TCA4 eliminates the complexity and signal degradation associated with running long analog thermocouple wires by digitizing the signal at the source and broadcasting it as a robust CAN packet.

Advanced Signal Processing and CAN Integration

Thermocouples generate minute millivolt-level signals that are highly susceptible to electromagnetic interference (EMI) from ignition coils and alternators. The TCA4 addresses this by employing Cold Junction Compensation (CJC) and high-quality instrumentation amplifiers within a shielded enclosure. It converts the analog data from up to four Type K thermocouples into a clean, digital stream.

This specific unit is pre-programmed with CAN ID “Box B”. This designation is crucial for users building high-channel-count systems. By using a “Box A” unit and a “Box B” unit on the same bus, you can monitor up to 8 unique channels (e.g., individual cylinder EGTs on a V8) without address conflicts. The device integrates seamlessly with Haltech Elite and Nexus ECUs, as well as third-party data loggers that support standard CAN protocols.

Operational Benefits

• Interference Immunity: Digitizes signals near the sensor, preventing noise corruption common in long analog wiring looms.
• Modular Expandability: The “Box B” configuration allows this unit to coexist with a “Box A” unit, doubling your measurement capacity instantly.
• Plug ‘n’ Play Ecosystem: Directly compatible with the Haltech Elite CAN port system using the included DTM-4 cable, requiring no complex wiring for power or data.
• Diagnostic Safety: Provides the ECU with real-time thermal data required to activate engine protection strategies, such as adding fuel or cutting boost if EGTs exceed critical limits.

Technical Specifications

Includes

• 1 x TCA4 Quad Channel Thermocouple Amplifier (Box B)
• 1 x Elite CAN Cable DTM-4 to 8 pin Black Tyco (300mm / 12")
• Mounting Hardware

Note: This unit is pre-configured as Box B. If you are installing a single 4-channel unit, you can use either Box A or Box B, but you must select the corresponding device in your ECU software. For 8-channel setups, you must purchase one Box A and one Box B.
