Triple Switch Panel Kit

Complete Cockpit Calibration: Triple Switch Panel Kit

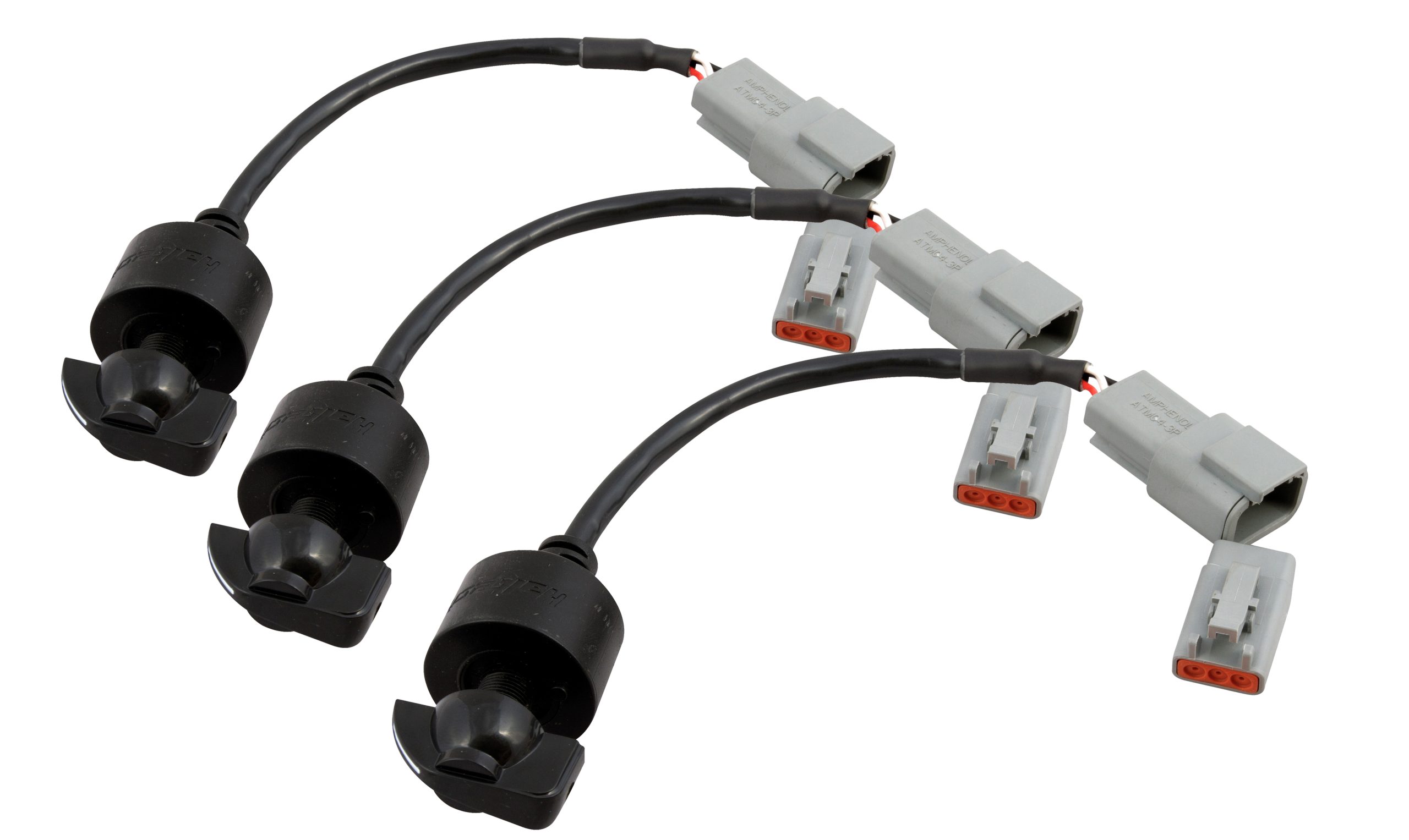

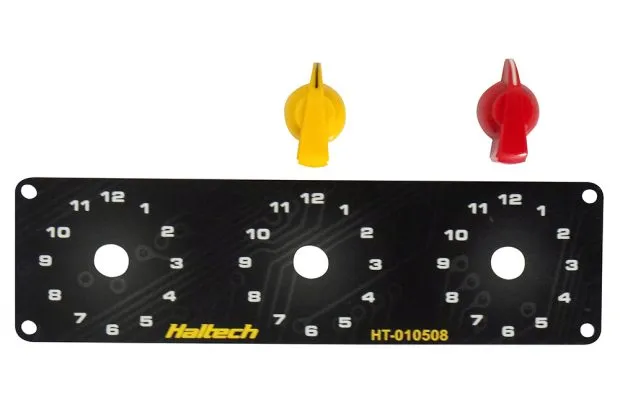

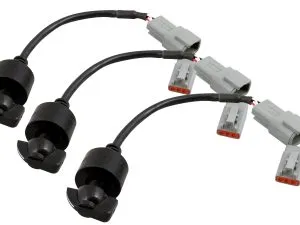

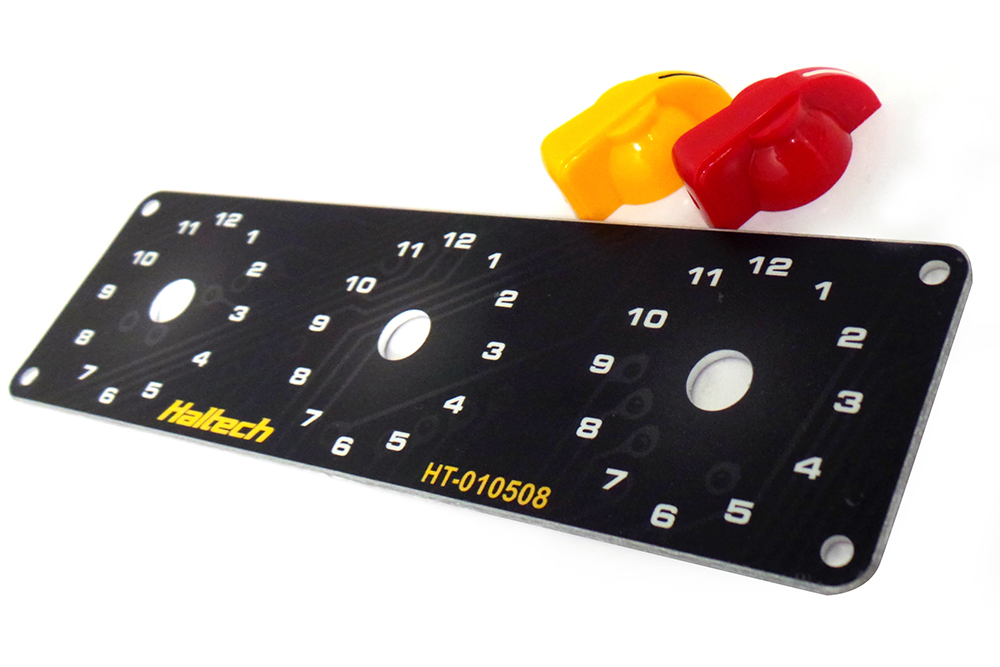

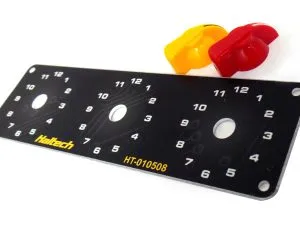

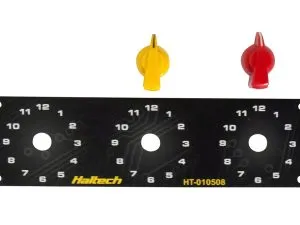

For the elite racer, having instant access to map adjustments is the key to managing variable track conditions. The Triple Switch Panel Kit is a comprehensive turn-key solution for driver-interactive tuning. This kit includes the triple panel, yellow and red adjustment knobs, and 3 x 12 position rotary trim modules. It is the definitive cockpit upgrade for LS-swap, 2JZ, and RB26 builds utilizing standalone ECU integration, providing the hardware necessary to adjust fuel map calibration, boost, and ignition on the fly with laboratory-grade precision.

Engineering Principles: 12-Position Stepped Resolution

The heart of this kit are the three 12-position rotary modules. Unlike basic potentiometers that can drift with vibration, these modules feature discrete detents for each of the 12 positions. This Analogue-to-Digital interface (voltage-stepped) ensures that each click provides a deterministic value to the ECU, which is foundational for detonation protection logic. By assigning different functions to each module (e.g., Module 1: Boost, Module 2: Fuel Trim, Module 3: Ignition Trim), the tuner can build an incredibly flexible engine management strategy. This consistency ensures that “Position 4” always provides the exact same timing retard or fuel enrichment pull after pull.

Operational Benefits: Dynamic Race Strategy

Integrating the Triple Switch Panel Kit with a Haltech Elite or Nexus series ECU enables a “Strategy-Based” driving style. During a race, the driver can use the red knob to manage closed-loop boost control for traction on corner exit, and the yellow knobs to trim for Air-Fuel Ratio (AFR) stability if fuel heat soak is detected. This level of control is vital for high-horsepower turbocharged engines where the boost target must be adjusted as tire wear increases. The kit is fully compatible with the iC-7 Digital Display, allowing the driver to see their selected trim level on-screen, ensuring total situational awareness in the cockpit.

Installation and Harness Integration

This kit is designed for professional harness integration and includes matching Deutsch DTM-3 connectors for each module. Installation requires mounting the triple panel in the dashboard or center console and wiring the modules to three available AVI (Analogue Voltage Input) channels on the ECU. The high-visibility yellow and red knobs allow for instant visual orientation, which is a critical detail in high-G racing environments. By consolidating these controls into a single, modular kit, Haltech simplifies the wiring process while providing a motorsport-standard finish that enhances both the functionality and the value of your performance build.

Technical Specifications Table

Summary & Includes

The Triple Switch Panel Kit is the ultimate driver-interface package for high-end engine management. Includes: 1 x Triple Panel, 3 x Rotary Trim Modules, Yellow/Red Knobs, and 3 x DTM-3 Connector Sets. Note: The definitive cockpit solution for multi-variable trimming on professional racing platforms.
