Triple Switch Panel Only

Cockpit Control Architecture: Triple Switch Panel Only

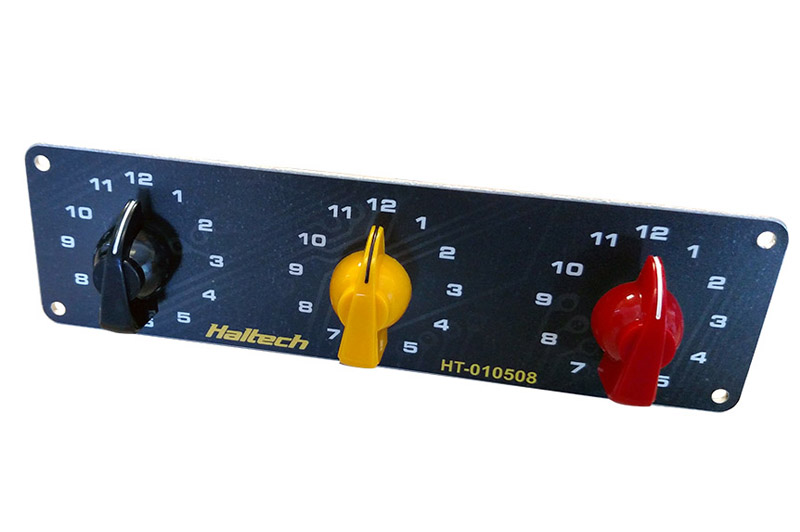

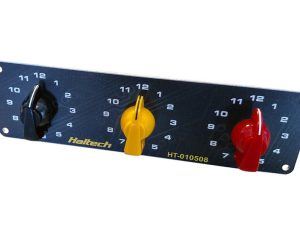

In high-end performance electronics, the user interface is just as critical as the data acquisition. The Triple Switch Panel Only is a specialized cockpit mounting solution designed to consolidate driver-interactive controls into a clean, professional interface. This panel is engineered to suit Haltech 12-position Rotary Trim Modules, allowing for real-time adjustment of critical engine variables such as boost levels, traction control intensity, and fuel trims. It is an essential component for high-performance LS-swap, 2JZ, and RB26 builds where the driver requires on-the-fly adjustment of the fuel map calibration.

Engineering Principles: Tactile Feedback and Visibility

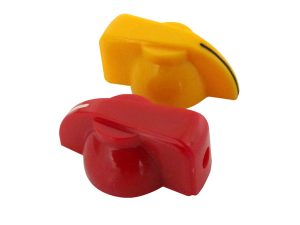

The Triple Switch Panel is designed for high-stress racing environments where the driver must make adjustments without taking their eyes off the track. The panel includes Yellow and Red knobs for high-contrast visibility, allowing for quick identification of different trim modules (e.g., Red for closed-loop boost control, Yellow for fuel trim). While this SKU is for the Panel Only, it provides the rigid and thermally stable foundation needed for a professional dashboard finish. For a full standalone ECU integration, this panel ensures that your trim controls are securely mounted and isolated from the mechanical vibrations of the cockpit.

Operational Benefits: Real-Time Performance Trimming

Integrating a Triple Switch Panel with your Haltech Elite or Nexus system allows for “Driver-in-the-Loop” calibration. In a fuel map calibration scenario, the driver can use the rotary knobs to select between different fuel qualities or boost levels based on track conditions. This is foundational for detonation protection; if the driver suspects poor fuel quality, they can instantly rotate the trim knob to a more conservative map. The panel supports three 12-position modules, providing a massive 36 possible control states in one compact dashboard footprint. This level of organization is standard in professional GT3 and Time-Attack cockpits.

Installation and Component Requirements

It is important to note that the 12 Position Rotary Trim Modules are NOT included with this SKU; builders should order 3 x HT-010504 to complete the system. The kit includes the triple panel and the yellow/red adjustment knobs. Installation involves mounting the panel to a custom dashboard or center console and wiring the trim modules to the ECU’s analogue voltage inputs (AVI). This setup allows for a professional harness integration finish, with all trim wiring centralized behind the panel. It is universally compatible with any dashboard layout and provides a factory-plus aesthetic to your custom build.

Technical Specifications Table

Summary & Includes

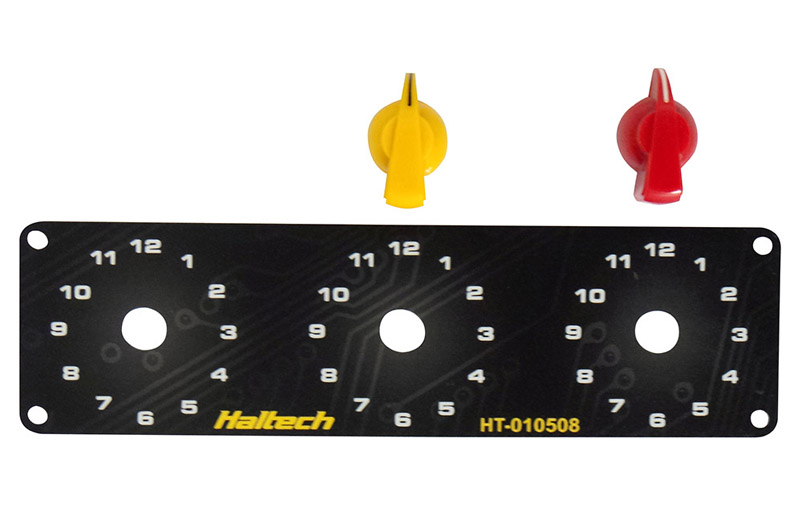

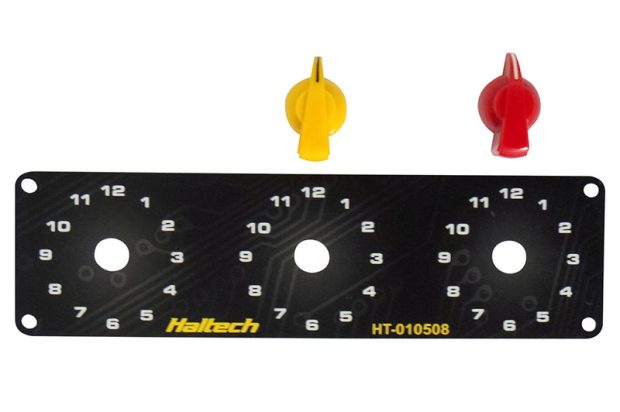

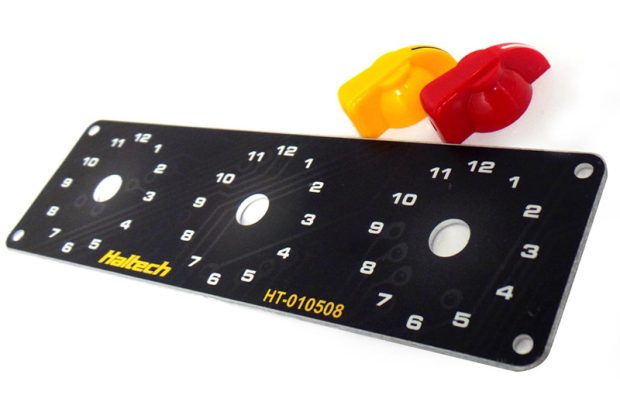

The Triple Switch Panel Only is the foundational component for organized cockpit control. Includes: 1 x Triple Mounting Panel, Adjustment Knobs (Yellow & Red). Note: 12-Position Rotary Trim Modules must be ordered separately; order 3 x HT-010504 to complete the assembly.
