TTE Turbo New TTE450 2.0 TSI Upgrade Turbocharger Audi | Skoda | Volkswagen 2.0 TSI 2004+

VAG 2. 0TSI EA888. 1 TTE450 TSI UPGRADE TURBOCHARGER

TTE450 begins as a brand new standard IHI turbocharger that we dismantle and then set about upgrading and optimizing as engineers to create our ultimate hybrid for the EA888. TTE450 Turbocharger is a great power stage for the 2. 0 TSI range of vehicles while retaining like OE fitment.

The formula to making a TTE450 starts with a much larger 2871X TTE billet compressor wheel, chosen because it is highly efficient, new generation type with very thin blades, creating an extremely high flow for comparative size, giving a compressor map that’s very wide. The Re-profiled compressor cover is machined to an optimized tolerance to ensure maximum compressor efficiency. We blank of the original PCV port as not required and fit our TTE smooth flow-optimized billet blanking plate cover. The intake pipe is CNC ported and hand finished with the TTE smooth flow cover fitted to give a smooth tract and transition for the incoming air for the ultimate flow.

We also fit our Billet CNC TTE Boost adapter & silencer delete. Removing any restriction so improving the flow and enhancing the sound. We CNC mill the compressor cover to accept our CNC Billet TTE Recirculation Valve Adapter to fit an Original VAG Recirculation valve to give OE like fitment with trouble-free operation.

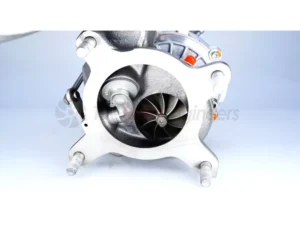

A key part of driving the large 2871X compressor and in turn making this unit produce the huge power advantage overstock is machining and fitting a far larger 9 blade High-Flow turbine and shaft, while still keeping the k04 core, this is not so easy to do. This large turbine gives much lower back pressure and keeps EGT lower compared to the stock turbine.

Special TTE developed in-house 360 deg high-performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.

The actuator used is an uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Features:

• Original IHI turbocharger as base part
• Original Genuine actuator upgraded
• Original Genuine Diverter Valve
• Early response
• TTE Billet Milled compressor
• TTE High-Flow 9 Blade High-Flow Low-Mass Turbine
• TTE CNC milled OEM silencer delete
• TTE Reinforced bearing pack
• Plug and Play installation
• 450 PS Capable
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Fitment:

• Audi A3 8P 2. 0 TSI 2004-2012
• Audi TT 8J 2. 0 TFSI/TSI 2006-2014
• Audi Q3 2. 0 TSI 2011+
• Skoda Octavia MK2 2. 0 TSI 2008-2012
• Volkswagen Beetle 2. 0 TSI(220) 2012-2019
• Volkswagen GTI MK6 2010-2014
• Volkswagen Jetta GLI 2. 0 TSI 2011-2019
• Volkswagen Passat B6 2. 0 TSI 2006-2015
• Volkswagen Scirocco MK3 2. 0 TSI (200-210ps) 2009-2017
• Volkswagen Tiguan 2. 0 TSI 2016+
