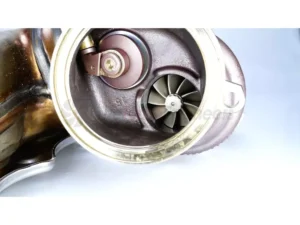

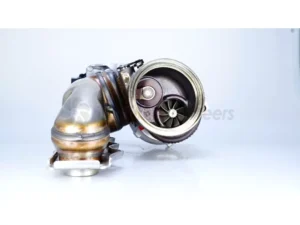

TTE Turbo Remanufactured TTE400 N20 Upgrade Turbocharger w/ Pneumatic Actuator BMW N20 Engine 2009-2018 SW10075.2 | Vivid Racing

TTE400 N20 UPGRADE TURBOCHARGER

Introducing the TTE400 Upgrade hybrid turbocharger for the four-cylinder petrol N20 engine from BMW.

To construct a TTE400 N20 we change the original compressor and employ a far larger and more efficient billet 6+6 wheel and mill the compressor cover to the optimum gap to match the new compressor profile. Notice we CNC mill the cover to have a smooth transition to the intake inlet, no big step to hinder airflow as you see on the competition’s offerings.

We replace the original exhaust turbine and CNC mill the turbine housing to install a larger 9 blade turbine for greater gas flow and lower backpressure.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Features:

Original Genuine turbocharger as the base part
Highly Efficient 6+ 6 Next Gen Billet Compressor 50. 5mm Inlet
High-Flow Compressor Inlet CNC machining
High-Flow 9 Blade Turbine 46 mm Outlet
360 Thurst Bearing
Genuine electronic actuator or pneumatic is available
Genuine diverter valve
Dynamically Balanced & Supplied with test result documents
Fitment As Original. Plug & Play
400PS Capable
Single parts finely balanced then components assembled and core high-speed VSR balanced
Supplied with a balance test result document
Proven TheTurboEngineers Quality
Made in Germany

Fitment:

BMW 1 Series F20/F21 125i 2011-2018
BMW 1 Series X1(E84) sDrive20i 2011-2015
BMW 1 Series X1(E84) xDrive28i 2011-2015
BMW 2 Series F22/F23 220i 2014-2018
BMW 2 Series F22/F23 228i 2014-2016
BMW 3 Series F30/F31/F34/F35 320i 2012-2015
BMW 3 Series F30/F31/F34/F35 328i 2011-2015
BMW 3 Series X3 xDrive20i(F25) 2011-2017
BMW 3 Series X3 xDrive28i(2. 0T F25) 2011-2017
BMW 4 Series F32/F33/F34/F36 420i 2014-2016
BMW 4 Series F32/F33/F34/F36 428i 2013-2016
BMW 4 Series X4 xDrive20i (F26) 2014-2018
BMW 4 Series X4 xDrive28i (F26) 2014-2018
BMW 5 Series F10/F11/F07 520i 2011-2016
BMW 5 Series F10/F11/F07 528i 2012-2016
BMW Z Series Z4 (E89) sDrive18i 2010-2016
BMW Z Series Z4 (E89) sDrive20i 2010-2016
BMW Z Series Z4 (E89) sDrive28i 2010-2016

Notes:

To utilise your existing turbo, you will need to send us your non-damaged turbo.
Price shown is based on your turbocharger being undamaged and within specification.
Remanufacturer Turbos must have core sent to TTE
Turbochargers must be in good working order and free from damage, any turbochargers sent with damage may incur extra charges.

Proposition 65

⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Fitment

Make Vehicle	Model	Year
2011-2018 BMW 125i	125i	2011-2018
2014-2018 BMW 220i	220i	2014-2018
2014-2016 BMW 228i	228i	2014-2016
2012-2015 BMW 320i	320i	2012-2015
2011-2015 BMW 328i	328i	2011-2015
2014-2016 BMW 420i	420i	2014-2016
2013-2016 BMW 428i	428i	2013-2016
2011-2016 BMW 520i	520i	2011-2016
2012-2016 BMW 528i	528i	2012-2016
2009-2015 BMW X1	X1	2009-2015
2011-2017 BMW X3	X3	2011-2017
2014-2018 BMW X4	X4	2014-2018
2010-2016 BMW Z4	Z4	2010-2016
