TTE Turbo Remanufactured TTE440L 2.0 TSI Upgrade Turbocharger Audi A4 (B8.5/B9) | A4 Allroad | A5 B9 | A6 C7 2.0 TFSI/TSI | Porsche Macan 2008+ SW10029.1 | Vivid Racing

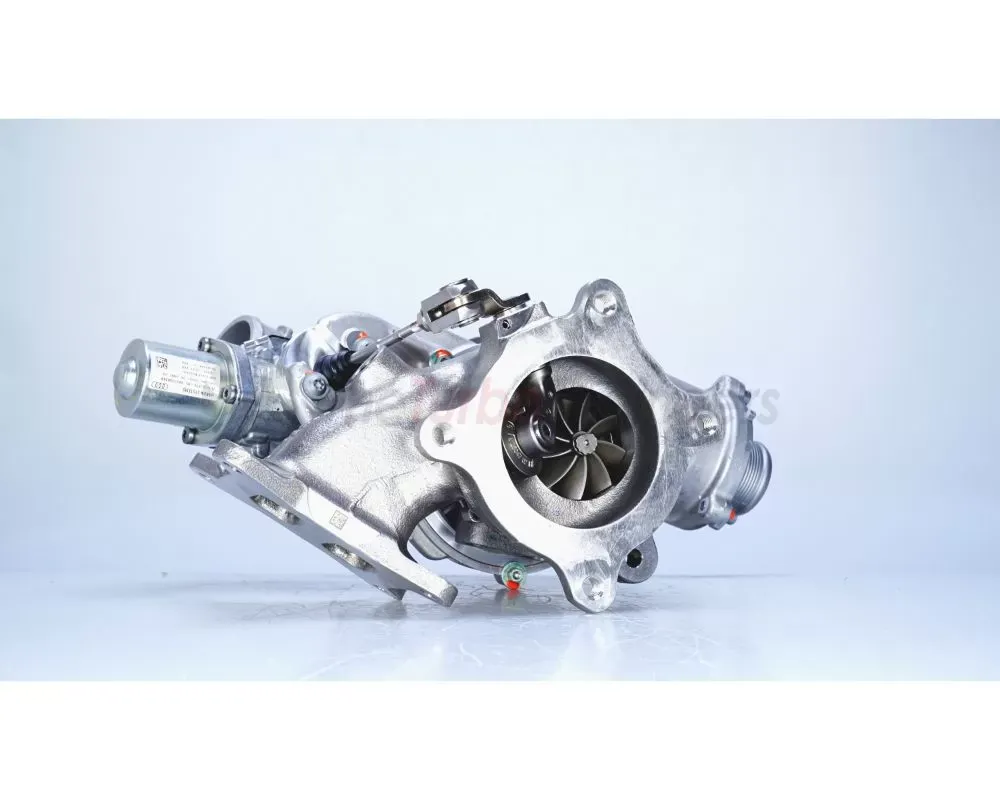

TTE440L 2. 0 TSI UPGRADE TURBOCHARGER
AUDI A4 B8. 5 B9, A5 B8. 5 B9 A6 2. 0 TSI/TFSI TTE440L 2. 0 TSI / PORSCHE MACAN 2. 0 TSI EA888. 3 UPGRADE TURBOCHARGER
VAG 2. 0 EA888. 3 MQB TTE440L UPGRADE TURBOCHARGER
TTE440L is our very latest hybrid performance upgrade turbocharger based on the Original IHI turbocharger for the 3rd generation VAG 2. 0TSI found in the AUDI A4 B8. 5 & 9 and many other VAG cars. Stage 3 hybrid power, with amazing spool and response. We feel this is the best performing plug & play hybrid available on offer today.
Engineered & Enhanced EA888 Gen 3
To construct a TTE440L we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to an optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.
We also fit our TTE CNC silencer delete. Modifying the turbo discharge silencer, removing the original baffle internals and fitting a new straight through section, removing any restriction and its function as a noise canceling device, and so improving the flow and enhancing the sound.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Features:
- Original IHI turbocharger as the base parts
- Original Genuine actuator
- Original Genuine diverter valve
- TTE Billet Milled compressor 6+6 Blade with Extended Tip 50. 5mm Inlet
- TTE High-Flow Low- Mass 9 Blade Turbine 53mm Outlet
- TTE CNC milled OEM silencer delete
- TTE Reinforced bearing pack
- Plug & Play installation
- 440HP+
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Made in Germany
Fitment:
- Audi A4 B9 2. 0 TFSI 2016+
- Audi A4 B8. 5 2. 0 TSI 2008-2015
- Audi A4 Allroad 2. 0 TFSI 2009+
- Audi A5 B9 2. 0 TSI 2017+
- Audi A6 C7 2. 0 TFSI 2011-2018
- Porsche Macan 2. 0 TSI 2018+
Notes:
- To utilise your existing turbo, you will need to send us your non-damaged turbo.
- Price shown is based on your turbocharger being undamaged and within specification.
- Remanufacturer Turbos must have core sent to TTE
- Turbochargers must be in good working order and free from damage, any turbochargers sent with damage may incur extra charges.
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle | Model | Year |
|---|---|---|
|
2009-2022 Audi A4 | A4 | 2009-2022 |
|
2009-2022 Audi A4 Allroad | A4 Allroad | 2009-2022 |
|
2016-2022 Audi A5 | A5 | 2016-2022 |
|
2011-2017 Audi A6 | A6 | 2011-2017 |
|
2018-2021 Porsche 95B Macan | 95B Macan | 2018-2021 |
About Brand
Who Is TTE Turbo?
The Turbo Engineers GmbH (also called TTE Turbo) is a dynamic and highly innovative turbocharger engineering company headquartered in Dachau, just on the outskirts of Munich in Germany. The brand specializes in the production of motorsport upgrade turbochargers to the highest level of quality and greatest efficiency. With strict attention to detail and rigorous testing methods, TTE Turbo offers a comprehensive line of top-notch turbocharger upgrades that deliver proven results. You can count on TTE Turbo to deliver a long-time, reliable, and optimized system for your car to achieve the maximum power and performance possible.
What Does TTE Turbo Offer?
TTE Turbo is focused on the construction of prototypes through the concept stage all through completion with most of the work being done in-house to its own stringent standards. The team places a large focus on converting existing OE turbochargers to newly upgraded specs for enhanced results. During the design and testing process, TTE turbochargers are thoroughly tested and refined to create a final product that emphasizes both performance and long-term reliability.
TTE Turbo is highly regarded in the automotive community as it consults and provides its parts to race teams and well-known tuners all around the globe. The company covers a wide array of automakers, including Alfa Romeo, AMG, Aston Martin, BMW, Ferrari, Ford, Lamborgini, McLaren, Nissan, Porsche, Renault, Toyota, and Volkswagen.
Upgrade to a TTE Turbo at Vivid Racing
If you are looking for the best-engineered performance turbochargers on the market, TTE Turbo is the way to go. Vivid Racing carries an impressive lineup of parts from The Turbo Engineers, including heat shields and wraps, intake adapters, silencer deletes, performance turbocharger systems, and remanufactured turbos. Should you have any questions about TTE Turbo, please contact us at (480) 428-0879.
