TTE Turbo Remanufactured TTE450L IHI 2.0 TFSI Upgrade Turbocharger Audi A4 | A5 | A6 | Q5 | Seat Exeo, ST 2.0 TFSI 2005-2017 TTE10294.1 | Vivid Racing
TTE450L IHI 2. 0 TFSI UPGRADE TURBOCHARGER

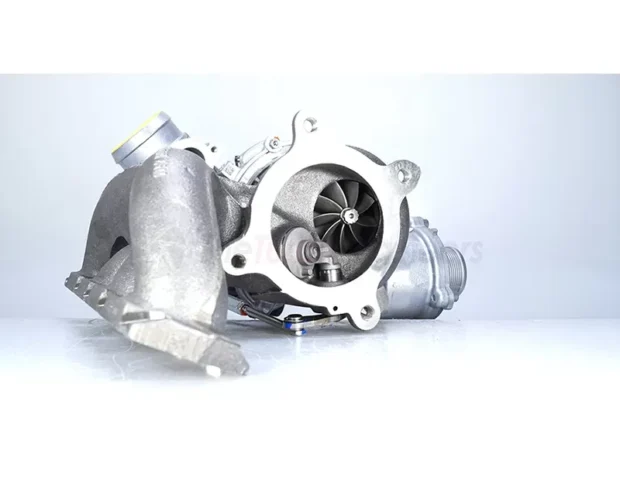

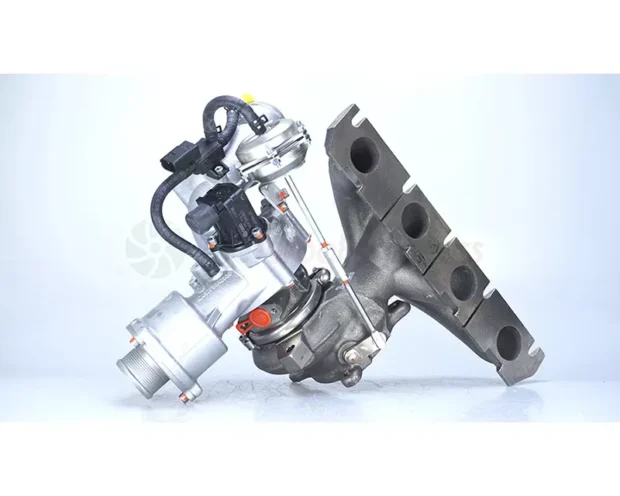

The TTE450L IHI hybrid performance upgrade turbocharger based on the Original IHI turbocharger for the 2. 0tfsi longitudinal engine. To construct a TTE450L we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger 9 blade turbine for greater gas flow.
The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size. We replace the original thrust bearing for TTE upgrade 360 deg that is made in-house for long term durability.
We also fit our TTE CNC silencer delete. Modifying the turbo discharge silencer, removing the original baffle internals and fitting a new straight-through section, removing any restriction and its function as a noise-canceling device, and so improving the flow and enhancing the sound. (not shown in picture)
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Features:
- TTE Billet Highly efficient compressor geometry 7+7 Blade
- TTE 9 Blade High-flow Low-mass turbine
- TTE Upgrade bearing pack
- Genuine IHI Turbocharger as the base part
- Genuine actuator TTE Upgraded
- TTE Turbo silencer delete
- CNC Optimized Compressor Cover Machining Clearances
- Plug and Play Installation
- 400PS+ on 99RON
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Proven TheTurboEngineers quality
- Made in Germany
Fitment:
- Audi A4 B7/B8 2. 0 TFSI 2007-2016
- Audi A5 B8/B8. 5 2. 0 TFSI 2008-2016
- Audi A6 C6 2. 0 TFSI 2005-2011
- Audi Q5 MK1 2. 0 TFSI 2009-2017
- Seat Exeo, ST 2. 0 TFSI 2009-2013
Notes:
- Please note if sending a used turbocharger for the upgrade process. TTE does not recondition the Electronic actuator or Diverter you send. Your sent items will be re-installed. A new diverter valve should always be fitted.
- Remanufacturer Turbos must have core sent to TTE
- Turbochargers must be in good working order and free from damage, any turbochargers sent with damage may incur extra charges.
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle | Model | Year |
|---|---|---|
|
2007-2016 Audi A4 | A4 | 2007-2016 |
|
2008-2022 Audi A5 | A5 | 2008-2022 |
|
2005-2011 Audi A6 | A6 | 2005-2011 |
|
2009-2017 Audi Q5 | Q5 | 2009-2017 |
About Brand
Who Is TTE Turbo?
The Turbo Engineers GmbH (also called TTE Turbo) is a dynamic and highly innovative turbocharger engineering company headquartered in Dachau, just on the outskirts of Munich in Germany. The brand specializes in the production of motorsport upgrade turbochargers to the highest level of quality and greatest efficiency. With strict attention to detail and rigorous testing methods, TTE Turbo offers a comprehensive line of top-notch turbocharger upgrades that deliver proven results. You can count on TTE Turbo to deliver a long-time, reliable, and optimized system for your car to achieve the maximum power and performance possible.
What Does TTE Turbo Offer?
TTE Turbo is focused on the construction of prototypes through the concept stage all through completion with most of the work being done in-house to its own stringent standards. The team places a large focus on converting existing OE turbochargers to newly upgraded specs for enhanced results. During the design and testing process, TTE turbochargers are thoroughly tested and refined to create a final product that emphasizes both performance and long-term reliability.
TTE Turbo is highly regarded in the automotive community as it consults and provides its parts to race teams and well-known tuners all around the globe. The company covers a wide array of automakers, including Alfa Romeo, AMG, Aston Martin, BMW, Ferrari, Ford, Lamborgini, McLaren, Nissan, Porsche, Renault, Toyota, and Volkswagen.
Upgrade to a TTE Turbo at Vivid Racing
If you are looking for the best-engineered performance turbochargers on the market, TTE Turbo is the way to go. Vivid Racing carries an impressive lineup of parts from The Turbo Engineers, including heat shields and wraps, intake adapters, silencer deletes, performance turbocharger systems, and remanufactured turbos. Should you have any questions about TTE Turbo, please contact us at (480) 428-0879.
