Wagner Tuning Radiator Kit BMW F87 M2 Competition S55 2015-2018 for 2015-2018 BMW M2 400001013 | Vivid Racing
Competition Radiator Kit for the BMW F87 M2
The 3.0 Liter S55B30 turbo engine of BMW M2 Competition is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNERTUNING upgrade water cooler comes into play. The new developed competition racing cores of the WAGNERTUNING high performance water coolers increase the radiator volume of the OEM water coolers by 89% for front mounted and 94% for side mounted. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The nearly plug and play installation of the system is simple and easy to perform (an installation instruction is included as well).
Specifications:

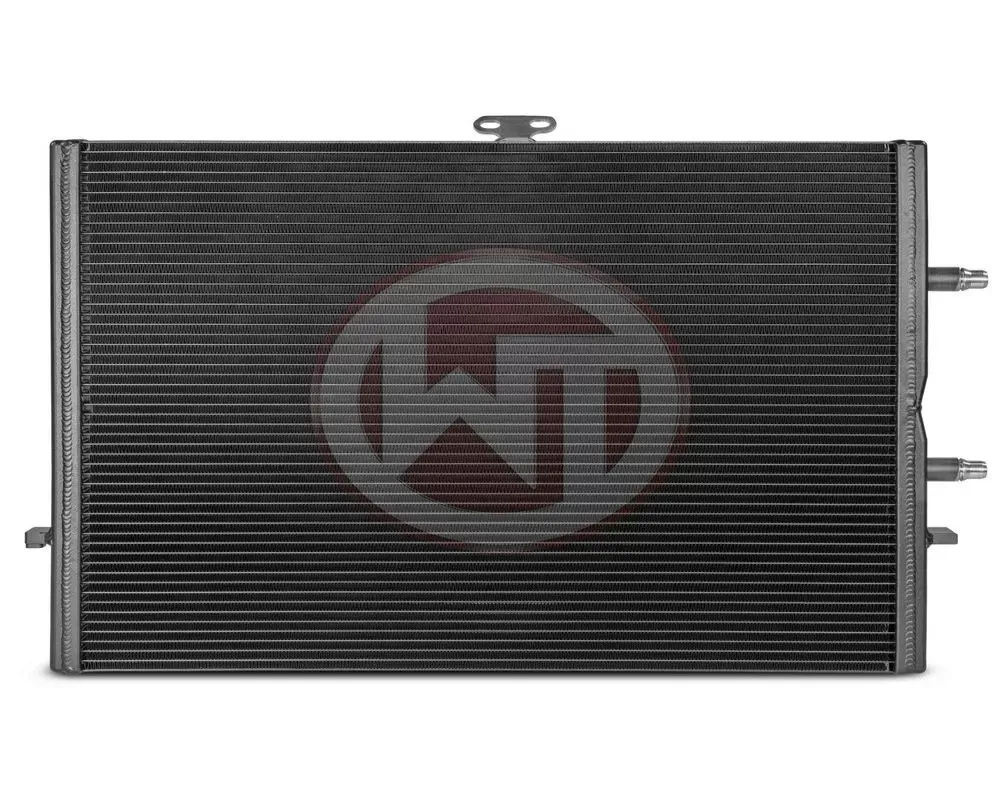

- Dimensions OEM front mounted radiator:
- 590 mm x 308 mm x 25 mm / 23.2Inch x 12.1Inch x 1.0Inch
- V = 4.5 Liter
- A = 1817 cm² / 280.7Inch²
- Dimensions WT front mounted radiator:
- 568 mm x 468.4 mm x 32 mm / 22.4Inch x 18.4Inch x 1.26Inch
- V = 8.5 Liter (+89%)
- A = 2660.5 cm² / 412.2Inch² (+46.4%)

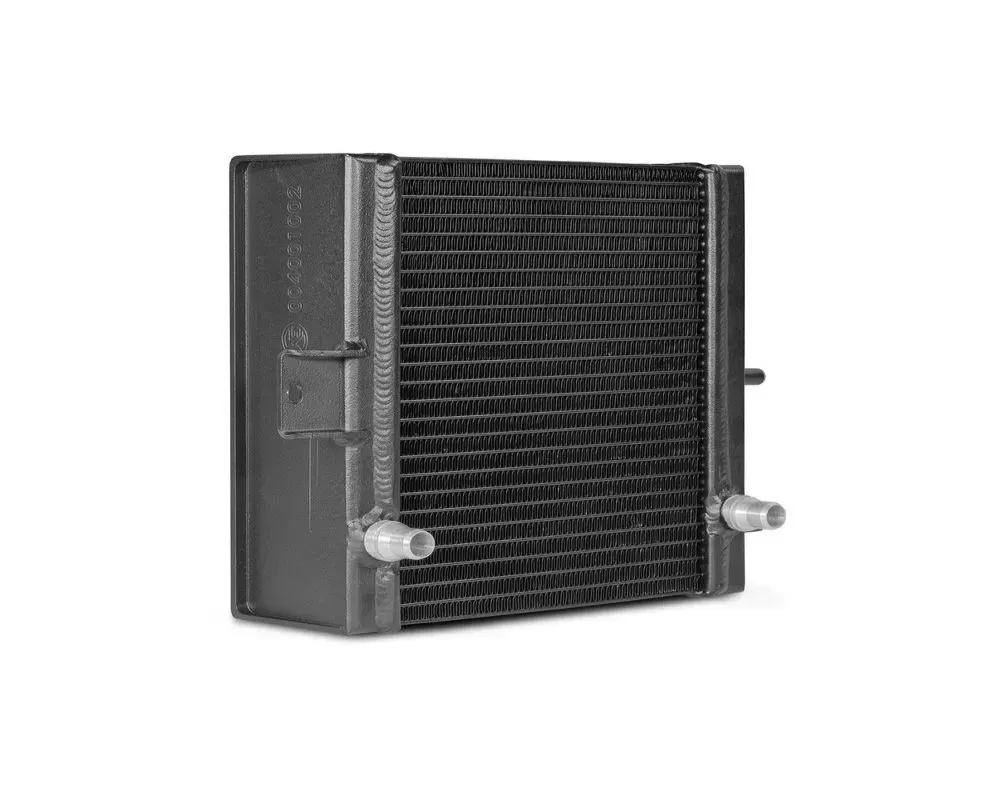

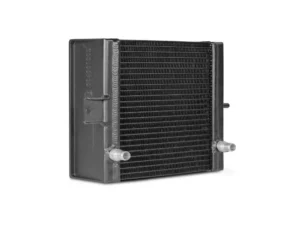

- Dimensions OEM side mounted radiator:
- 250 mm x 165 mm x 40 mm / 9.8Inch x 6.5Inch x 1.6Inch
- V = 1.65 Liter
- A = 412.5 cm² / 63.7Inch²
- Dimensions WT side mounted radiator:
- 252 mm x 188 mm x 68 mm / 9.9Inch x 7.4Inch x 2.7Inch
- V = 3.2 Liter (+94%)
- A = 473.8 cm² / 73.3Inch² (+14.9%)

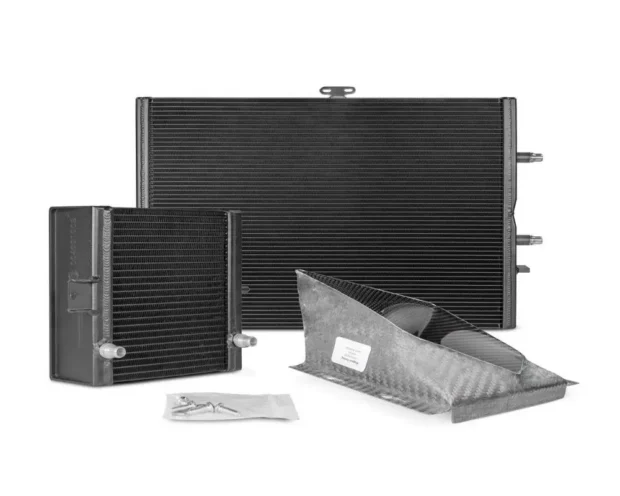

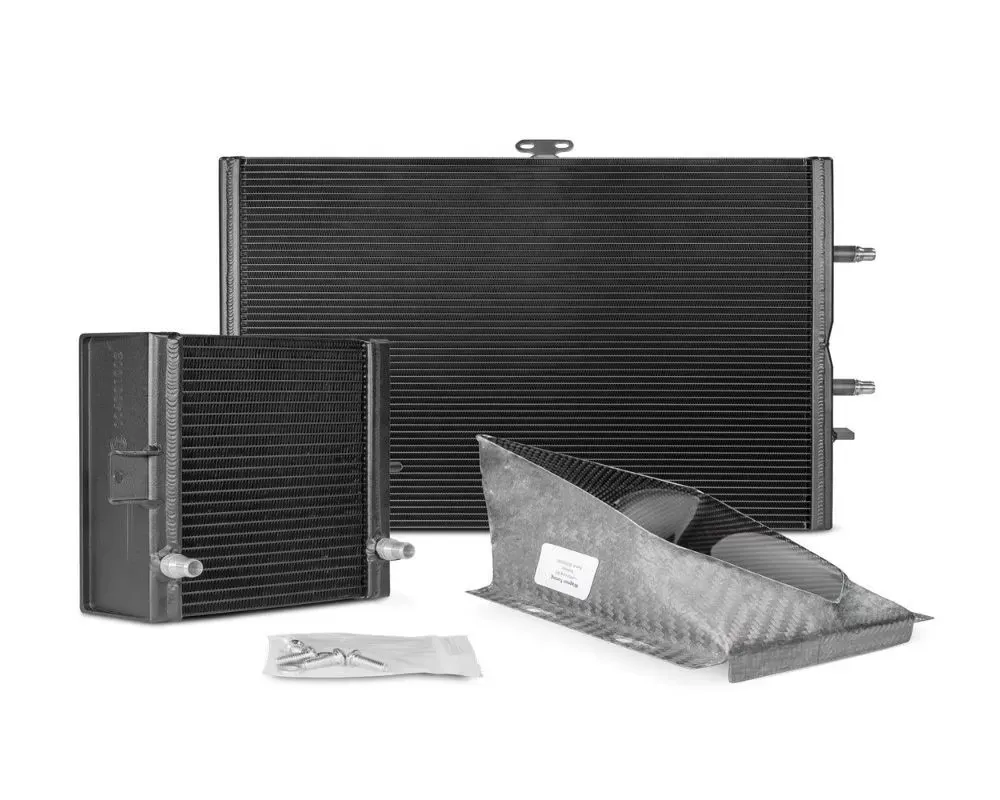

Kit Inclusions:
- 1x Front mounted radiator (low-temperature circuit)
- 1x Side mounted radiator (low-temperature circuit)
- 1x Carbon air shroud for side mounted radiator
- 1x Mounting material
- 1x Installation instruction
Fitment:
- BMW F87 M2 Competition S55 2015-2018
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle |
Model | Year |
|---|---|---|
|
2015-2018 BMW M2 |
M2 | 2015-2018 |
About Brand
Who is Wagner Tuning?
Wagner Tuning is a company that was founded in 2002. They specialize in aftermarket intercoolers and other high performance parts. Intercoolers are used to cool down the air produced by forced induction systems. A well-designed intercooler can increase the performance of an engine by simply lowering the air coming from the compressor before it goes inside the engine. Today, Wagner is a globally recognized brand with over 3000 network dealers worldwide.
Germany, Where The Best Are Made
The company is based in Germany where they develop, design and manufacture their parts. They use advanced design software and measuring tools to produce parts with the highest precision. German ingenuity is evident in all their products. Hence, the reason why they are highly sought after.
Wagner Tuning also produces specially-designed exhaust manifolds and y-pipes which are being used in racing due to their high performance output. They have products specifically designed for various sport-oriented vehicles from various vehicle manufacturers. They offer bolt on kits that let you install the intercooler without the need for any modification.
Purchase Wagner Tuning Products At Vivid Racing
If you want to further improve the performance of your supercharged or turbocharged vehicle, then upgrade your intercooler to Wagner Tuning. They are the leading experts when it comes to intercoolers and is trusted by multiple tuners, race teams and enthusiast globally. To know more about Wagner Tuning, visit Vivid Racing and check out their list of products that would fit your specific needs. You will never regret this choice.
Warranty
All products come with a 2 Year Manufacturer warranty. All product warranties offered are non-transferable.
Intercooler warranty is extendable to 4 years via product registration with the Manufacturer.
No warranty claim will be considered unless you can produce a verifiable invoice in your name.
Items must be returned for inspection prior to any warranty repair or replacement being authorized.
Any items which have been amended or modified from their original specification will void the warranty.
We accept no claim for labor under any circumstances.
To make a warranty claim contact us by emailing info@wagner-tuning.uk
