WB1 Bosch – Single Channel CAN O2 Wideband Controller Kit Length: 1.2M (4ft)

WB1 Bosch Single Channel CAN Wideband Controller: Digital Precision for Every Build

Accurate air-fuel ratio (AFR) measurement is the cornerstone of engine tuning. For inline engines or single-bank applications where a single measurement point is sufficient, the WB1 Bosch Single Channel CAN Wideband Controller Kit offers a sophisticated, digital solution. Unlike simple analog gauges that suffer from voltage offsets and ground loops, the WB1 integrates directly with your Haltech ECU via the CAN bus network. This ensures that the Lambda value utilized by your ECU for closed-loop corrections, autotuning, and engine protection is an exact digital representation of the combustion event. Featuring the industry-standard Bosch LSU 4.9 sensor, this kit is the professional’s choice for adding reliable wideband O2 input to Elite or Nexus systems.

Engineering Deep-Dive: The Advantage of CAN Integration

The WB1 controller takes the complex analog signals from the Bosch LSU 4.9 sensor—specifically the Nernst cell voltage and the pump cell current—and processes them internally. By digitizing this data at the controller, the system eliminates the inaccuracies associated with long analog wire runs. In a traditional 0-5V setup, a 0.1V offset caused by a poor ground can shift the AFR reading by 0.2 to 0.5 points, potentially leading to dangerous tuning decisions. The WB1’s CAN connection transmits data packets, ensuring the ECU receives the exact value the sensor measures, regardless of chassis ground noise. Additionally, the controller manages the sensor’s heater strategy, ensuring rapid warm-up and preventing thermal shock condensation damage.

Operational Benefits

• Noise Immunity: Digital transmission is impervious to electrical interference from ignition coils and alternators.
• Simple Expansion: Easily add a wideband input to an Elite 550 or 750 that lacks internal wideband hardware.
• Enhanced Diagnostics: The controller broadcasts sensor status and error codes, allowing the tuner to identify a failing sensor or wiring issue immediately via the ECU software.
• Precise Fuel Control: Enables the use of Haltech’s advanced short-term and long-term fuel trim algorithms for perfect driveability and power.

Fitment and Compatibility

The WB1 is a universal CAN expansion device designed for the Haltech Ecosystem. It is the perfect addition for 4-cylinder engines, inline-6 engines (2JZ, RB26, K20, 4G63), or any application utilizing a single exhaust collector.

• ECU Compatibility: Works seamlessly with Haltech Elite Series (550 to 2500) and Nexus Series devices.
• Software: Configurable via ESP (Elite Software Programmer) and NSP (Nexus Software Programmer).
• Sensor Compatibility: Designed exclusively for the Bosch LSU 4.9 sensor.

Technical Specifications

Summary & What’s Included

The HT-159976 WB1 Kit provides a robust, plug-and-play solution for integrating accurate wideband data into your Haltech system. It allows you to tune with confidence, knowing your data is accurate and noise-free.

Includes:

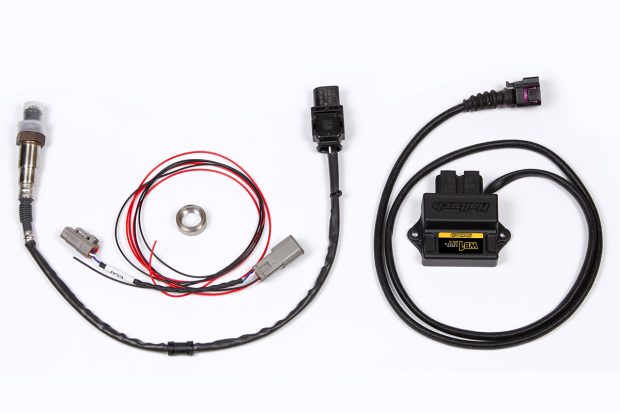

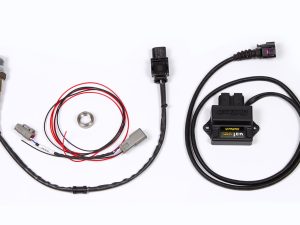

• 1 x WB1 Single Channel CAN Wideband Controller

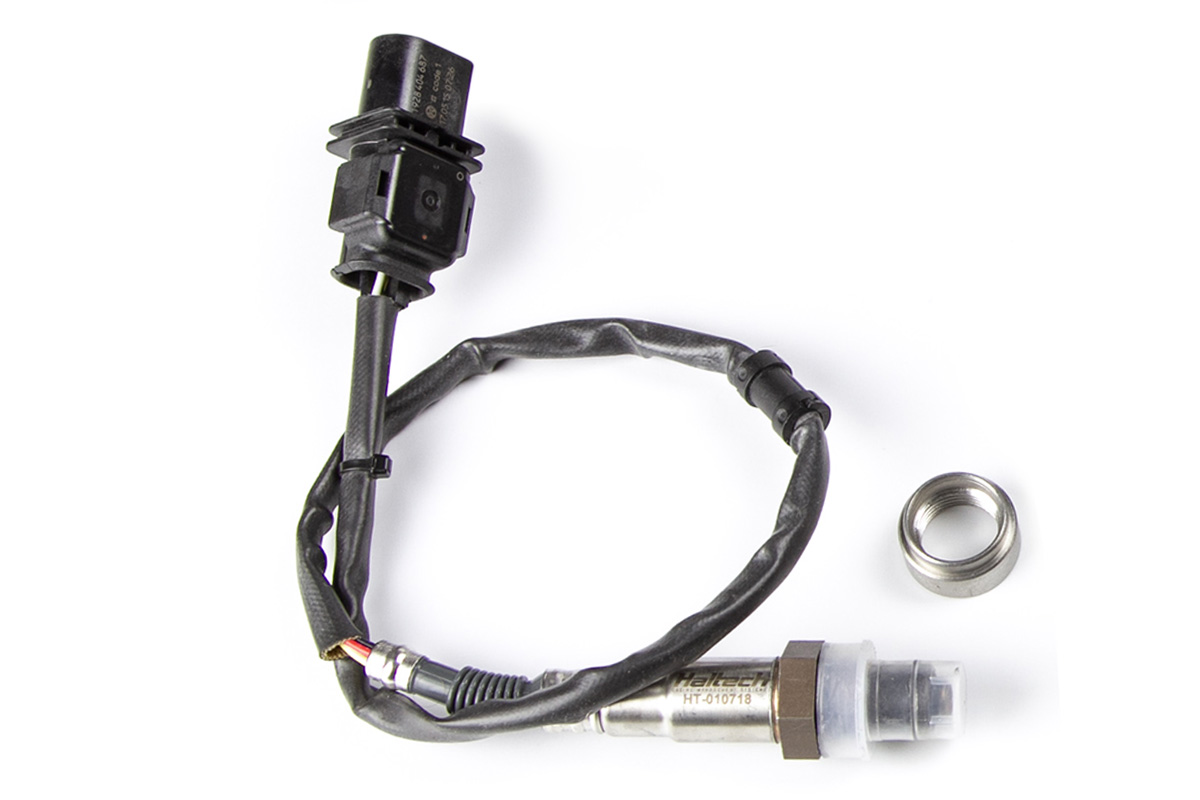

• 1 x Bosch LSU 4.9 Sensor
• 1 x CAN Cable (4ft / 1200mm)
• 1 x Power Supply Cable
• 1 x Weld-on Bung
• Quick Start Guide

Note: This unit is the Bosch LSU 4.9 version. Haltech also offers a version for the NTK sensor for specific alcohol/methanol applications; ensure you have selected the correct kit for your fuel type.
