Weld Fitting – Aluminum Thread: M12 x 1.5

Metric Integration Standard: M12 x 1.5 Aluminum Weld Fitting

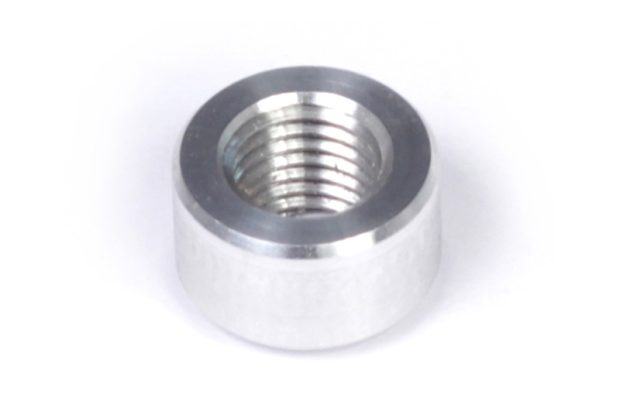

For engines utilizing metric sensor standards—common on high-performance RB26, Toyota 1JZ/2JZ, and European BMW S54 builds—maintaining a native thread profile is essential for a professional result. The Weld Fitting – Aluminum M12 x 1.5 is a specialized mounting boss designed specifically to suit Small Thread Coolant Temp sensors. Machined from 6061-aluminum, this fitting allows for the permanent and structural installation of temperature sensors into aluminum manifolds and radiator systems, ensuring your standalone ECU integration receives a high-fidelity thermal signal for reliable engine management.

Engineering Principles: Fine-Pitch Metric Stability

The M12 x 1.5 thread is a metric fine-pitch standard that offers exceptional sealing performance in aluminum components. Unlike coarse threads, the 1.5mm pitch provides a higher thread density, which improves vibration resistance and pressure integrity. This is foundational for harness integration in motorsport, as a loose or leaking sensor port can lead to erratic Analogue-to-Digital interface signals, potentially compromising your detonation protection strategies. The billet 6061 construction ensures that the fitting can be seamlessly welded to standard aluminum components, creating a monolithic seal that is more reliable than any bolt-on adapter or NPT-to-Metric conversion.

Operational Benefits for Custom Cooling Systems

Integrating an M12 x 1.5 port into your custom cooling system provides the tuner with accurate and repeatable Coolant Temp data. In a fuel map calibration scenario, the ECU relies on this thermal input to manage cold-start enrichment and fan control thresholds. By using this native metric weld fitting, you ensure that the sensing element is positioned correctly in the fluid stream without the added stack-up height of adapters, which can cause “thermal lag” and inaccurate data logging. This is particularly vital for high-horsepower street and track builds where thermal management is a constant challenge. The fitting is compact and allows for a clean, factory-plus finish in the engine bay.

Fabrication Best Practices and Implementation

This fitting is a universal performance component designed for TIG welding. For the best result, the aluminum surface must be meticulously cleaned and de-oxidized before welding. Using a compatible 4043 or 5356 aluminum rod ensures that the weld joint remains crack-resistant under the intense thermal cycling of a high-power engine. After the welding process, it is critical to chase the threads with an M12 x 1.5 bottoming tap to remove any minor distortion. This ensures a weatherproof seal when the sensor is installed with its copper crush washer. This fitting is specifically designed to interface with the Haltech small-thread CTS range, providing a professional and durable sensor mounting solution.

Technical Specifications Table

Summary & Includes

The M12 x 1.5 Aluminum Weld Fitting is the prerequisite for metric sensor integration. Includes: 1 x M12 x 1.5 Weld-on Bung. Note: Designed exclusively for aluminum components. Thread chasing after welding is recommended to ensure perfect fitment.
