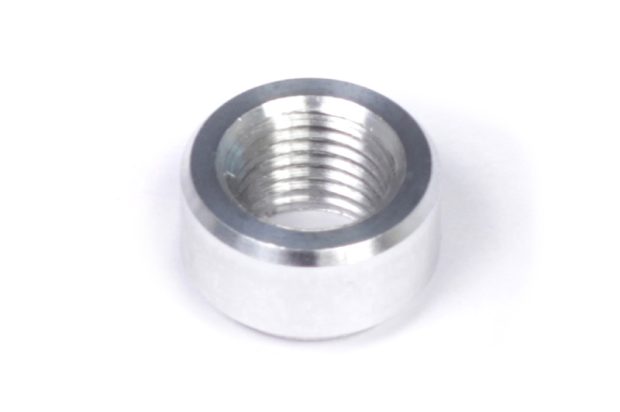

Weld Fitting – Aluminum Thread: M14 x 1.5

Fabrication Precision: M14 x 1.5 Aluminum Weld Fitting

For professional fabricators building high-performance intake and cooling systems, the integrity of sensor mounting ports is non-negotiable. The Weld Fitting – Aluminum M14 x 1.5 is a specialized mounting boss designed specifically to suit Small Thread Air Temp sensors. Machined from high-grade 6061-T6 aluminum, this fitting provides a permanent, leak-free interface for your standalone ECU integration, ensuring that your IAT or MAT sensors are mounted with zero risk of vibration-induced loosening. This is a mandatory component for custom 2JZ, RB26, or K-swap intake pipes where a professional, metric-native finish is required.

Engineering Principles: Metric Fine Stability and Weldability

The M14 x 1.5 thread is a metric fine standard, offering superior sealing characteristics compared to larger or coarser threads. The 1.5mm pitch provides a high thread count in a compact area, ensuring that the sensor remains weatherproof and physically secure even under high boost pressures. By using 6061 aluminum, the fitting offers excellent TIG weldability to standard intercooler piping or intake manifolds, creating a monolithic mechanical ground. This is vital for maintaining a clean Analogue-to-Digital interface for the air temperature signal, as any movement in the sensor port could introduce noise into the ECU’s air-density calculations during fuel map calibration.

Operational Benefits: Optimized Induction Telemetry

Using this M14 weld fitting allows the builder to place the air temperature sensor in the absolute optimal location—typically just before the throttle body. In a fuel map calibration scenario, particularly on engines running closed-loop boost control, having an accurate and fast-responding IAT is essential for engine safety. If the sensor is mounted via a poor-quality adapter, it can suffer from “thermal lag,” reporting cooler-than-actual temperatures. By welding this native metric bung directly into the intake tract, the sensor tip is exposed to the core air stream, ensuring that your detonation protection maps are based on absolute thermal reality. The compact design allows for integration into tight engine bays without compromising airflow dynamics.

Installation and Fabricator Best Practices

This weld-on fitting is a universal component designed for professional integration into aluminum fluid or air systems. For the best result, the mounting surface should be meticulously cleaned of oxides before welding. Using the correct aluminum filler rod (4043 or 5356) ensures the joint is as strong as the intake pipe itself. After the welding process, it is a recommended best practice to chase the threads with an M14 x 1.5 tap to remove any minor distortion caused by the heat-affected zone. This ensures a perfect fit for the Small Thread Air Temp Sensor and its copper crush washer, providing a durable and serviceable solution for years of competition use.

Technical Specifications Table

Summary & Includes

The M14 x 1.5 Aluminum Weld Fitting is the foundational bung for high-performance air temp sensing. Includes: 1 x M14 x 1.5 Weld-on Fitting. Note: Designed for aluminum components only; ensuring a rigid mounting point for precise induction data.
