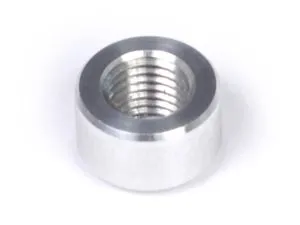

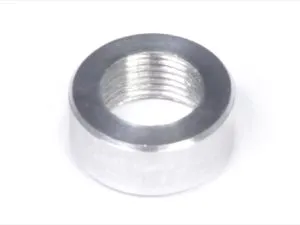

Weld on Fitting 1/8 NPT – 27 TPI – 6061 Aluminium Size: 20.4mm x 13mm

Fabrication Precision: Weld-on Fitting 1/8 NPT (6061 Aluminum)

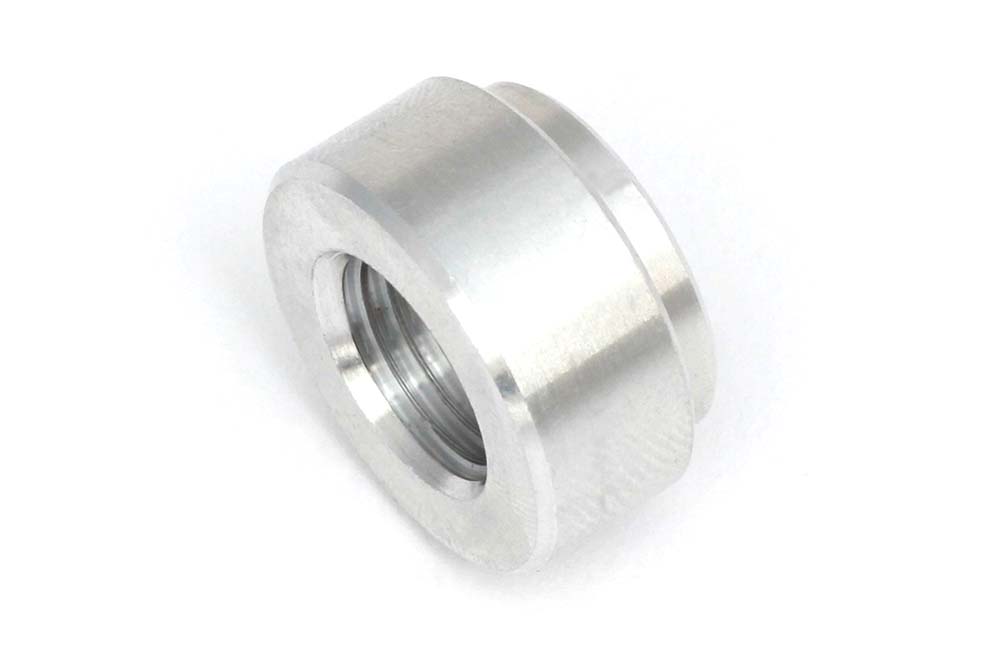

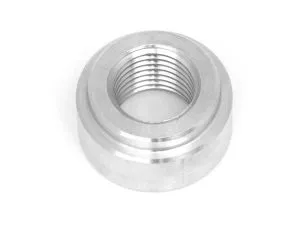

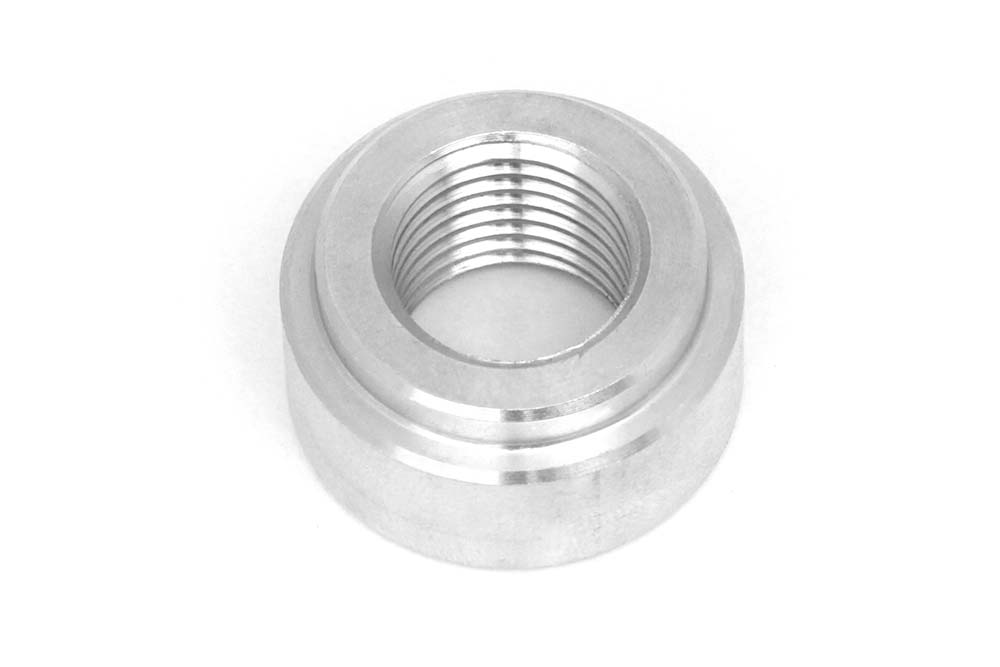

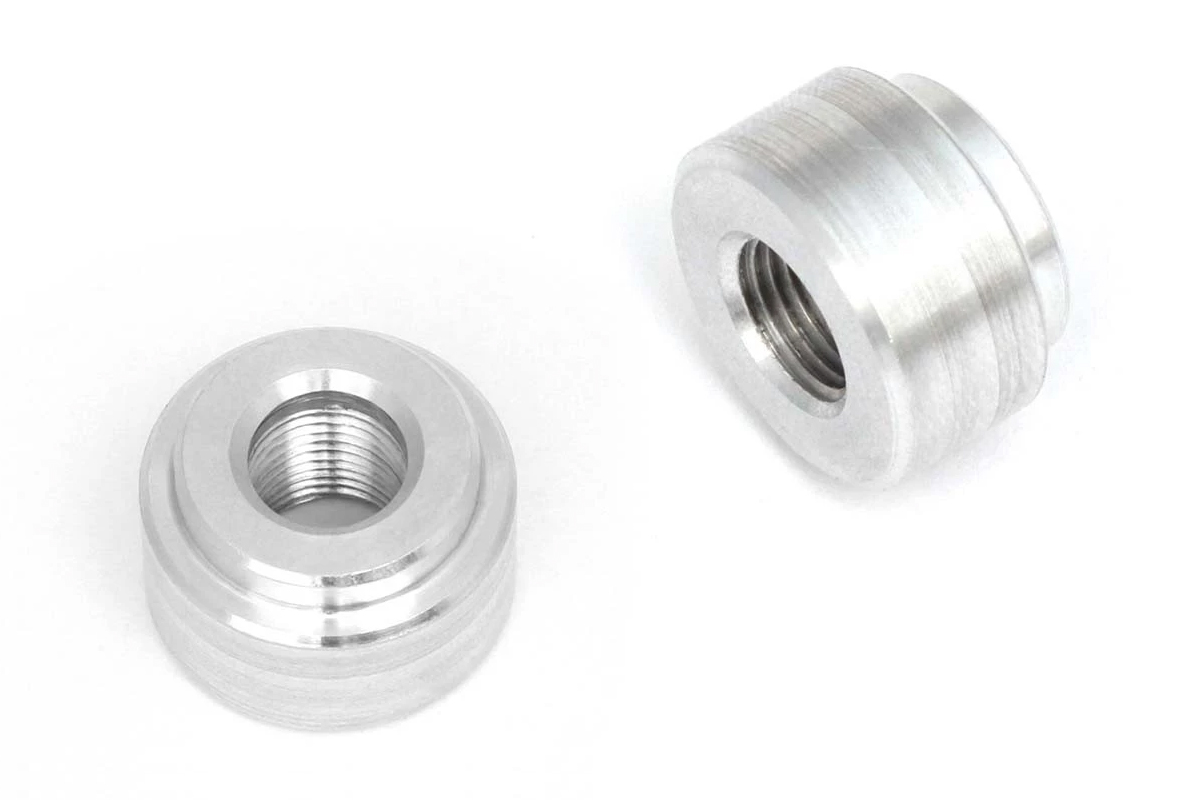

In high-performance fluid and air systems, the integrity of sensor ports is non-negotiable. The Weld-on Fitting 1/8 NPT – 27 TPI is a specialized mounting boss engineered for integration into aluminum intake pipes, intercoolers, and fluid tanks. Machined from 6061-T6 aluminum, this fitting measuring 20.4mm x 13mm provides a permanent and leak-free mounting point for a variety of sensors, including air temperature, pressure transducers, and water/methanol injection nozzles. This is an essential component for any custom LS-swap, 2JZ, or RB26 project requiring precision harness integration and sensor placement.

Engineering Principles: Tapered Thread Reliability

The 1/8 NPT (National Pipe Thread) standard with 27 TPI (Threads Per Inch) is the industry benchmark for creating a pressure-tight seal in automotive systems. This fitting is CNC-machined to ensure that the internal taper matches the sensor’s threads perfectly, preventing the micro-leaks that can occur with poor-quality bungs. By using 6061 aluminum, the fitting offers excellent weldability to standard aluminum piping, creating a monolithic mechanical ground that is immune to vibration. This is critical for standalone ECU integration, as a stable sensor port ensures that your Manifold Absolute Pressure (MAP) or Air Temperature readings are not compromised by physical signal noise.

Operational Benefits: Versatile Sensor Integration

This weld-on fitting is a versatile platform for expanding your vehicle’s telemetry. In a fuel map calibration environment, having the ability to add a 1/8 NPT port anywhere in the system allows for the monitoring of fuel pressure, oil pressure, or intake manifold temperature at the source. For turbocharged engines using closed-loop boost control, this fitting provides a secure location for the wastegate reference signal or the boost control solenoid feed. The compact 20.4mm diameter and 13mm height make it easy to package in tight engine bays without compromising the airflow or fluid dynamics of the primary component.

Fabrication and Installation Best Practices

This fitting is a universal component and includes 1 x 1/8 NPT Weld on fitting. To ensure a professional result, the mounting surface should be meticulously cleaned before TIG welding. Using the correct aluminum filler rod (typically 4043 or 5356) ensures the joint is as strong as the parent material. After welding, it is recommended to chase the threads with an 1/8 NPT tap to remove any minor thermal distortion, ensuring a weatherproof and vibration-proof seal for your high-performance sensors. It is compatible with almost all standard 1/8 NPT temperature and pressure sensors in the Haltech range.

Technical Specifications Table

Summary & Includes

The 1/8 NPT Weld-on Aluminum Fitting is the foundational hardware for custom sensor ports. Includes: 1 x 1/8 NPT Weld-on Fitting. Note: Designed for TIG welding; requires final thread chasing after installation for best results.
