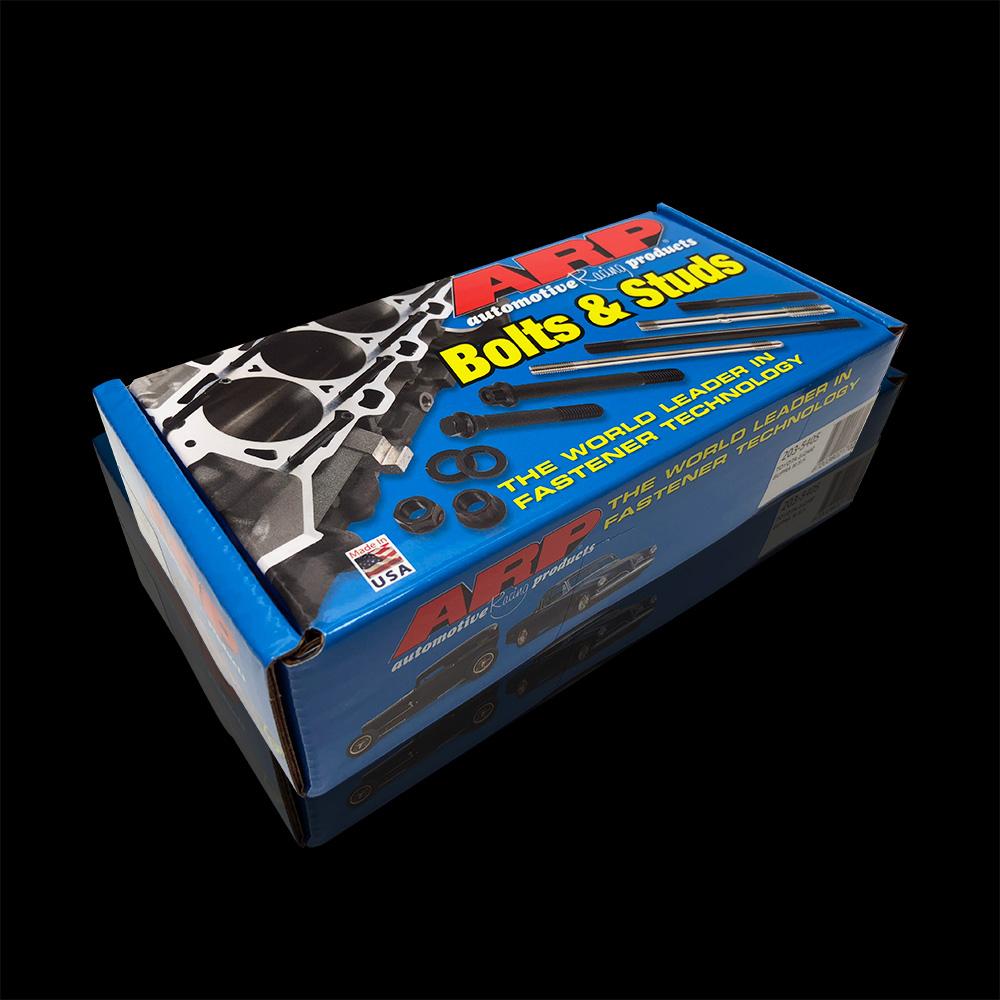

AR8630 – Toyota 2JZGTE/1JZGTE ARP Head Studs

In the realm of high-performance Toyota JZ engine builds, cylinder head sealing is the fundamental barrier between reliable, explosive power and catastrophic failure. For the legendary 2JZ-GTE and 1JZ-GTE engines, the factory head bolts represent a critical point of compromise when power levels escalate. The AR8630 Head Stud Kit from ARP (Automotive Racing Products) is not merely an upgrade; it is an engineering mandate for any build targeting sustained performance under extreme cylinder pressures and thermal loads. Representing the pinnacle of fastener technology, this kit (also referenced under part number 203-4205) replaces the torque-to-yield factory bolts with a stud and nut system designed for unparalleled clamp load consistency, thermal stability, and long-term durability. This is the component that anchors your entire power strategy, allowing you to confidently explore the outer limits of forced induction and engine tuning without the specter of head gasket failure.

The Engineering Superiority of a Stud & Nut System

Understanding why the ARP 8630 kit is superior begins with a fundamental shift from a bolt to a stud architecture. A factory head bolt is torqued directly into the engine block’s threaded aluminum alloy. This process creates significant frictional variables in the threads and under the bolt head, which directly impacts the accuracy and consistency of the achieved clamp load—the actual force holding the head to the block. More critically, during disassembly and reassembly, the repeated threading and unthreading of a bolt into soft aluminum risks degrading the block’s threads, a potentially fatal issue.

ARP’s stud system eliminates these variables. The high-strength studs are first installed finger-tight into the block, where they remain seated. The cylinder head is then placed over the studs, and a precision-machined nut is torqued down onto the stud. This method offers profound advantages: First, the torque is applied to the nut, generating clamp load through the stud in pure tension without the torsional stress and thread friction inherent in a turning bolt. This yields a more accurate, repeatable, and consistent clamp load across all cylinders. Second, the wear and tear of assembly is isolated to the nut and the stud’s upper threads, preserving the critical threads in the engine block indefinitely. This system is the gold standard in motorsport for a reason: it provides a level of sealing security that bolts simply cannot match.

Material Science & Manufacturing Precision

The AR8630 studs are meticulously crafted from ARP’s proprietary 8740 chromoly steel, a material selected for its exceptional strength-to-weight ratio and, more importantly, its fantastic fatigue resistance. This alloy undergoes a specialized thermal cycling process, a technique discussed in depth by engineering resources like MotorTrend’s analysis of fastener technology, which stabilizes the metal’s microstructure to prevent relaxation under sustained heat and load. Each stud is then subjected to ARP’s legendary roll-threading process. Unlike cut threads which shear the grain of the metal, roll-forming cold-works the material, aligning the grain structure along the thread profile. This results in threads that are significantly stronger, smoother, and more resistant to galling and seizing.

Finally, the studs receive ARP’s signature Micro Polished finish. This isn’t for aesthetics; it’s a critical performance step. By removing microscopic surface imperfections, the polish eliminates potential stress risers—tiny points where cracks can initiate under extreme cyclical loading. The polished surface also reduces friction during nut installation, contributing to more accurate torque-to-clamp load conversion. The accompanying nuts are precision-machined and often treated with a dry lubricant or moly coating to ensure consistent, accurate torque readings during the critical final assembly.

Precision Installation for Maximum Performance

While the ARP 8630 kit is a bolt-on component, its installation is a procedure that demands respect and precision. Unlike factory TTY (Torque-To-Yield) bolts that are used once and discarded, ARP studs are reusable and require a specific, multi-stage torque sequence outlined in the provided instructions. This typically involves an initial snugging pass, followed by two or more incremental torque steps, often concluding with a final angle torque for optimal load distribution. It is absolutely critical to follow ARP’s specified torque values and sequence, not the factory manual’s. Using the correct lubricant (usually supplied) on the nut and washer interface is non-negotiable, as it directly affects friction and the final clamping force. Proper installation ensures the head gasket—whether OEM multi-layer steel or an aftermarket variant—is compressed evenly across the entire deck, creating a uniform, leak-proof seal capable of containing the immense pressures of a high-horsepower JZ.

Vehicle Fitment & Application Scope

The ARP 8630 kit is engineered for a precise and critical fit. Its application is focused on the twin-cam, four-valve-per-cylinder turbocharged engines that form the heart of Toyota’s performance legacy.

Primary Fitment:

• Toyota 2JZ-GTE: All years and variants, including those found in the JZA80 Supra (1993-2002), JZS161 Aristo (1997-2005), and other JDM applications. Essential for any build exceeding 500-600whp, and considered mandatory for 800whp+ and nitrous or high-boost applications.
• Toyota 1JZ-GTE: Both the early 1JZ-GTE (non-VVTi) and later 1JZ-GTE VVTi engines found in the JZX90, JZX100 Chaser/Mark II/Cresta, JZZ30 Soarer, and others. Provides the same foundational strength for high-power 1JZ builds.

Note: This kit is specifically for the turbocharged (GTE) versions of these engines. While some blocks share similarities, always verify fitment for non-GTE or hybrid applications. The kit includes all necessary studs, nuts, and washers for a complete V6 cylinder head installation.

Technical Specifications & Benefits Summary

Definitive Benefits of the AR8630 Head Stud Kit

• Unmatched Clamp Load Consistency: The stud-and-nut system provides superior, even clamping force across the entire cylinder head, drastically reducing the risk of head gasket failure.
• Extreme Strength & Fatigue Resistance: Manufactured from 220,000 PSI ultimate tensile strength 8740 chromoly steel, capable of withstanding extreme cylinder pressures and thermal cycling.
• Reusability & Thread Protection: Can be used for multiple builds, and protects the soft aluminum threads in your engine block from wear and stripping.
• Thermal Stability: Specially heat-treated to resist relaxation under the intense, repeated heat cycles of a high-performance turbocharged engine.
• Foundational for High Horsepower: Considered an essential, non-negotiable upgrade for any 2JZ-GTE or 1JZ-GTE build targeting elevated boost levels, nitrous oxide, or power outputs beyond the capability of OEM fasteners.
• Precision Engineering: Micro-polished finish and roll-formed threads eliminate stress points and ensure accurate torque application.

For the serious builder of Toyota’s JZ platform, the AR8630 ARP Head Stud Kit is not an optional accessory; it is the bedrock upon which reliable, high-horsepower engines are constructed. It transcends the concept of a “stronger bolt” to deliver a complete, engineered fastening system that addresses the core physical challenges of sealing a high-performance engine. When your build parameters exceed factory specifications, your components must do the same. Investing in the ARP 8630 kit is an investment in the long-term integrity and performance ceiling of your 2JZ or 1JZ engine, ensuring that the cylinder head seal remains a solved problem, no matter how far you push the limits.
