In the realm of high-performance and reliability-focused engine building, the cylinder head fastener is not merely a component; it is the foundational clamp load that determines an engine’s sealing integrity under extreme conditions. For the formidable 5.7L and 4.6L Toyota 3UR-FE V8 engine—powering icons like the Tundra, Sequoia, Land Cruiser 200 Series, and LX570—the factory torque-to-yield head bolts represent a single-use, engineered compromise. The ARP 8633 (ARP #203-4704) head stud kit is the definitive, permanent solution, transcending OEM limitations through aerospace-grade material science and precision manufacturing. This kit is engineered for builders who demand absolute cylinder head stability, whether for severe forced induction, aggressive nitrous application, or simply uncompromising long-term durability in demanding service. As the industry benchmark, ARP head studs are the non-negotiable upgrade for any 3UR-FE build where failure is not an option.
Engineering Superiority: The Metallurgy and Design of ARP2000®
The core of the AR8633 kit’s performance lies in the proprietary ARP2000® alloy. Unlike standard Grade 5 or 8 fasteners, or even OEM torque-to-yield bolts, ARP2000® is a custom-formulated chromium molybdenum steel (8740 chromoly) that undergoes a specialized thermal cycling process. This results in a fastener with an ultimate tensile strength of 220,000 psi and a yield strength of approximately 200,000 psi, far exceeding the capabilities of OEM hardware. Crucially, ARP2000® maintains exceptional fatigue resistance and shear strength at elevated temperatures, a critical factor in an aluminum block engine where heat soak is a constant challenge. Each stud in the AR8633 kit is manufactured to tolerances measured in ten-thousandths of an inch, featuring ARP’s famous Unbrako thread rolling process. This cold-forms the threads rather than cutting them, preserving the continuous grain structure of the metal and eliminating stress risers that can lead to failure under cyclic loading. The result is a stud that provides a perfectly consistent, vastly superior clamp load that does not relax over time.
Precision Installation and Clamp Load Consistency
Replacing torque-to-yield bolts with a stud kit fundamentally changes the assembly dynamic. Studs are installed finger-tight into the block, allowing the cylinder head to be lowered onto a perfectly flat, parallel fastener array without the galling or cross-threading risk inherent with bolts. This permits precise alignment and effortless head gasket placement. The nuts are then torqued in the specified sequence to apply the clamping force. The ARP8633 kit includes high-quality, 12-point hardened steel nuts with integrated washer faces, designed for use with ARP’s Ultra-Torque® fastener lubricant. This proprietary lubricant ensures consistent friction coefficients, translating applied torque directly into accurate clamp load, eliminating the guesswork and inherent variance of dry or oil-lubricated threads. For the ultimate in precision, many professional builders pair ARP studs with a stretch gauge to measure fastener elongation directly, the most accurate method for ensuring perfect preload.
Definitive Benefits of the ARP 8633 Head Stud Kit
- Unmatched Tensile & Fatigue Strength: 220,000 psi ultimate tensile strength provides a massive safety margin over stock, preventing head lift under extreme cylinder pressures from turbocharging, supercharging, or nitrous oxide.
- Eliminates Clamp Load Relaxation: Unlike TTY bolts that permanently yield, ARP studs are reusable and maintain their clamp load indefinitely, ensuring permanent head gasket seal integrity.
- Superior Thermal Stability: ARP2000® alloy retains its strength at high operating temperatures, preventing failure due to heat cycling and engine bay heat soak common in performance applications.
- Facilitates Precision Assembly: Stud installation allows for flawless cylinder head and gasket alignment, simplifying the building process and reducing risk of damage during assembly.
- Reusability and Long-Term Value: A one-time investment for the life of the engine block. ARP studs can be used across multiple rebuilds, offering unparalleled long-term value and reliability.
- Industry-Standard Reliability: ARP is the trusted fastener supplier for top racing series globally, providing proven, track-dominant performance for your street or competition 3UR-FE.
Vehicle Fitment: Toyota 3UR-FE Engine Applications
The ARP 8633 kit is engineered as a direct, no-modification replacement for the OEM head bolts in all Toyota and Lexus vehicles equipped with the 3UR-FE engine. This includes applications from 2008 onward. Critical for builders to note: the 3UR-FE shares its architecture with the 1UR-FE; however, the head stud kits are not interchangeable due to differing thread pitch and length. The AR8633 is specific to the 3UR platform.
Primary Applications Include:
Toyota Tundra (2008-2021, 5.7L V8), Toyota Sequoia (2008-2022, 5.7L V8), Toyota Land Cruiser 200 Series (2008-2021, 5.7L V8), Lexus LX570 (2008-2021, 5.7L V8). Additionally, it fits the 4.6L 3UR-FE variants found in certain markets. Always verify engine designation (3UR-FE) prior to purchase. The kit is also fully compatible with aftermarket and OEM-replacement head gaskets from Cometic, Fel-Pro, and Toyota.
Technical Specifications: ARP #203-4704 (Kit AR8633)
| Specification | Detail |
|---|---|
| ARP Part Number | 203-4704 (Retail), AR8633 (Race Catalog) |
| Application | Toyota 3UR-FE 5.7L & 4.6L V8 |

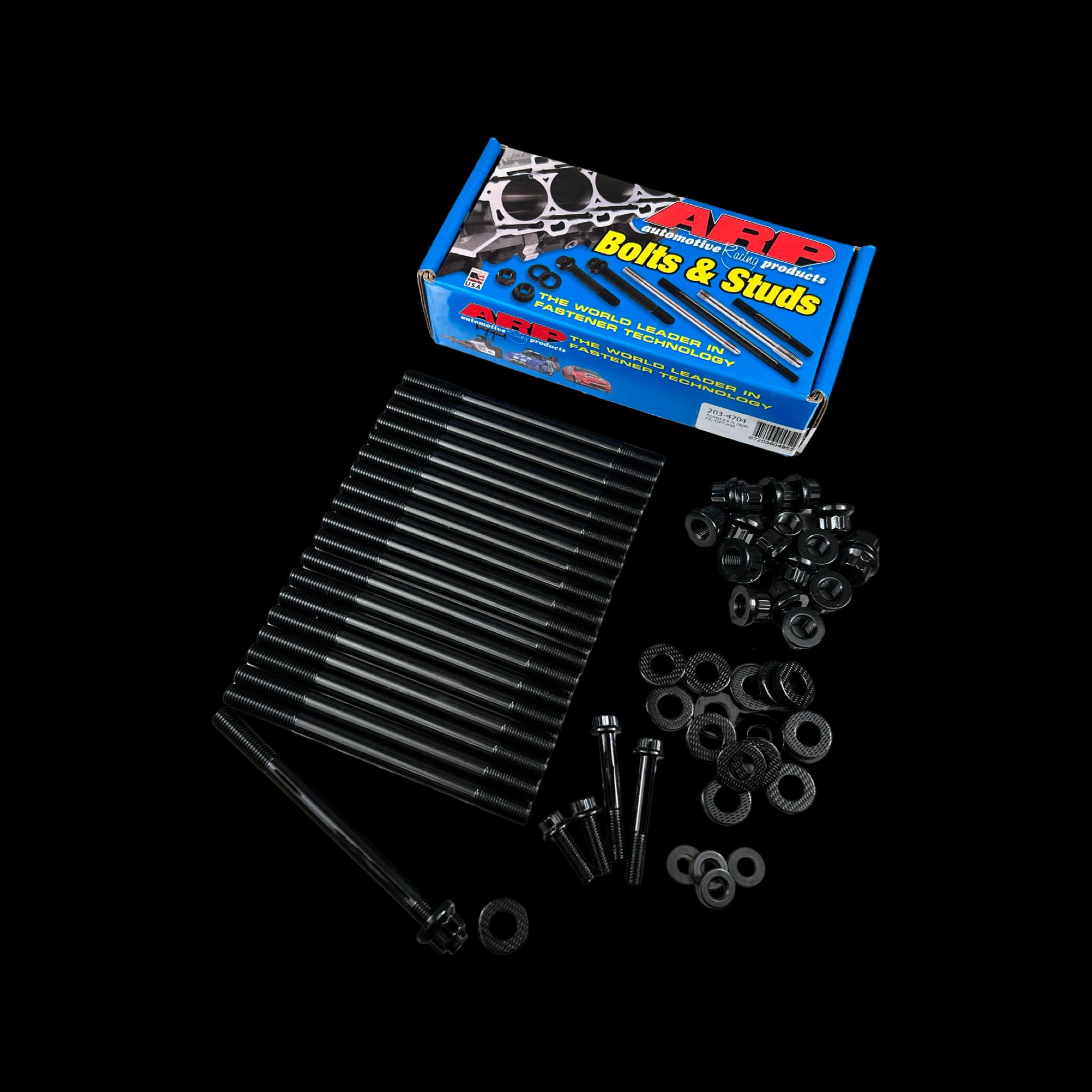

| Contents | (20) Head Studs, (20) 12-Point Nuts |
| Material | ARP2000® Chromoly Steel |
| Ultimate Tensile Strength | 220,000 psi |
| Fastener Lubricant | ARP Ultra-Torque® Included |
| Installation Torque Spec | 85 ft-lbs with ARP Ultra-Torque® (Always refer to latest ARP instructions) |
| Thread Pitch | M11 x 1.5 (Block), M11 x 1.5 (Nut) |
| Competitor Cross-Reference | Direct replacement for Brian Crower BC8633 |
The Final Verdict for the 3UR-FE Builder
For any 3UR-FE engine destined for power levels beyond stock, subjected to heavy towing, or simply expected to deliver a million-mile service life, the ARP 8633 head stud kit is the first and most critical line of defense. It replaces the engine’s most significant mechanical compromise with a component of absolute strength and precision. This upgrade neutralizes head gasket failure as a primary concern, allowing the builder to focus on other aspects of the powerplant. Whether you are executing a simple preventative refresh or constructing a four-digit horsepower masterpiece, specifying ARP head studs is the hallmark of a professional, technically informed build. The AR8633 is not an accessory; it is essential infrastructure for a reliable, high-performance Toyota 3UR-FE engine.
