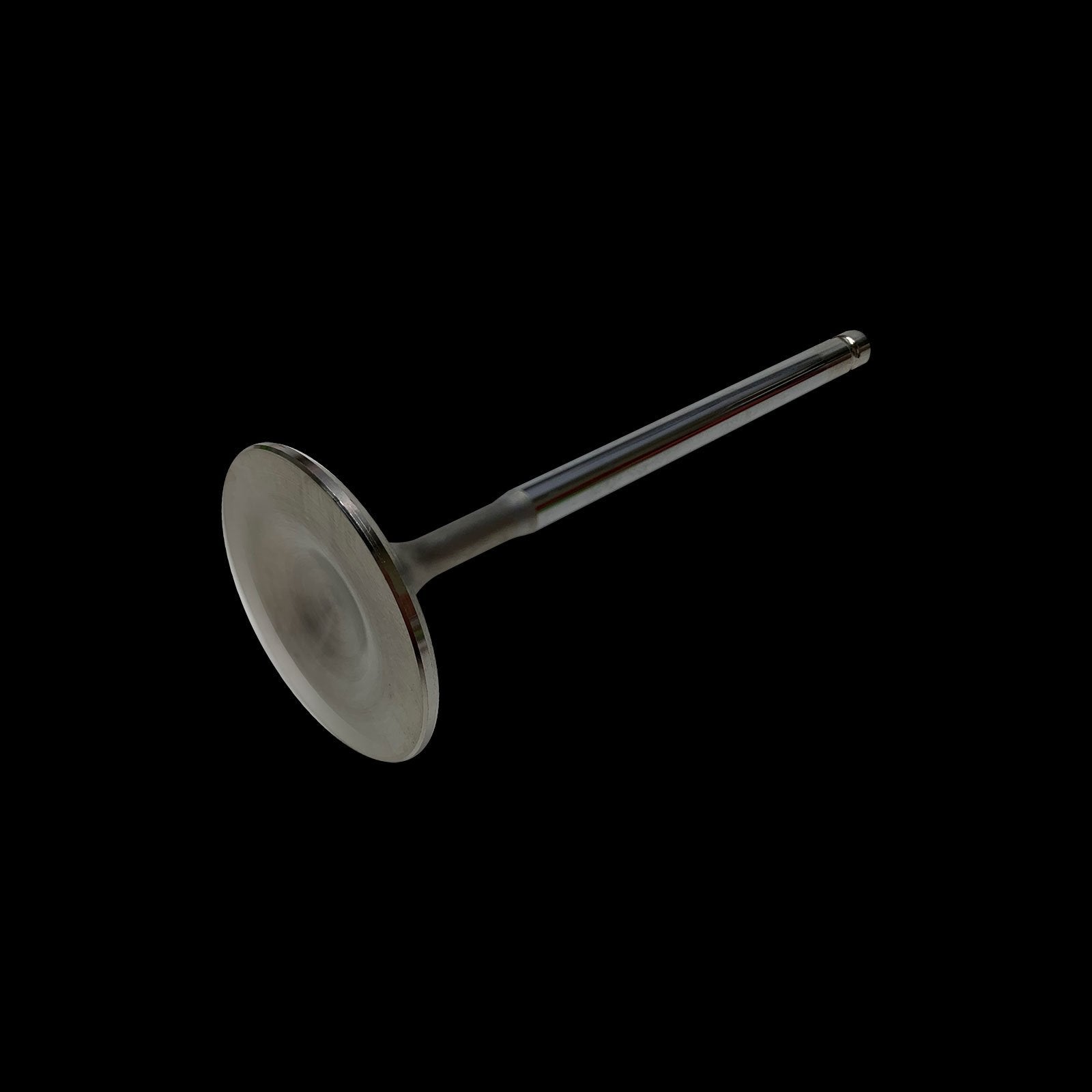

Brian Crower BC3075S-8: 27mm (+1mm Oversize) Exhaust Valve Set for Honda D16Y8/D16Z6 Engines

In the realm of high-performance Honda D-series engine building, particularly for the revered D16Y8 (EX/Si) and D16Z6 (VTEC) platforms, volumetric efficiency is the cornerstone of power. The factory exhaust valve, while reliable for OEM duty, becomes a significant restriction when pursuing optimized airflow for forced induction or aggressive naturally aspirated builds. The Brian Crower BC3075S-8 valve set is a precision-engineered solution, delivering a calculated +1mm oversize (27mm total diameter) to the exhaust ports. This isn’t merely a larger valve; it’s a system upgrade manufactured from proprietary EV8+ stainless steel, featuring a back-cut profile and underhead radius designed for unimpeded exhaust scavenging. For builders targeting reliable horsepower gains beyond 200whp or seeking to maximize the efficiency of aftermarket camshafts and ported heads, this set transforms the exhaust valve from a passive component into an active performance asset, reducing backpressure and thermal loading for sustained high-RPM durability.

Engineering & Metallurgical Superiority: The BC3075S-8 Breakdown

Brian Crower components are defined by a no-compromise approach to metallurgy and machining tolerances. The BC3075S-8 valves exemplify this philosophy, starting with their construction from EV8+ stainless steel. This alloy is specifically formulated for exhaust duty, offering a superior balance of high-temperature tensile strength, corrosion resistance, and thermal fatigue life compared to common 21-2N or 21-4N alloys. The exhaust valve is the hottest component in the combustion chamber, facing continuous exposure to combustion gases exceeding 1400°F. EV8+ maintains its hardness and structural integrity under these extremes, resisting the gradual “tuliping” or necking that plagues inferior valves and leads to seal loss and power decay.

The valve’s profile is equally critical. Each valve features a precision 45-degree seat face that is perfectly concentric to the stem, ensuring a consistent, leak-free seal with minimal lapping required. More importantly, the back-cut on the underside of the valve head is a performance hallmark. This machined angle, between the seat face and the stem, reduces the shrouding effect as the valve lifts, effectively increasing the curtain area for exhaust flow at higher lift points. Combined with a smooth, radiused underhead transition, this design minimizes flow separation and turbulence, allowing spent gases to exit the chamber more efficiently. This translates directly to a cleaner scavenging process, lower cylinder temperatures, and a broader power band.

Performance Benefits & Application Rationale

Upgrading to the BC3075S-8 valve set is a foundational modification for any serious D16 performance build. The primary advantage is increased cross-sectional area for exhaust flow. A simple calculation reveals that moving from the stock 26mm exhaust valve to a 27mm valve yields an approximate 8% increase in valve head area. This reduction in exhaust restriction is crucial for turbocharged or supercharged applications where expelling high volumes of exhaust gas is paramount to spool efficiency and preventing backpressure-induced power loss. For N/A builds, especially those with aggressive camshafts from brands like Brian Crower or Skunk2, the larger valve works synergistically with increased duration and lift, supporting the engine’s ability to breathe at the top end.

• Increased Exhaust Flow: +1mm oversize design and back-cut profile significantly reduce exhaust gas restriction for improved volumetric efficiency.
• Enhanced Durability: EV8+ stainless steel construction provides exceptional resistance to heat fatigue, warping, and corrosion for long-term reliability under boost or high RPM.
• Optimized for Performance Camshafts: Supports the high-lift, long-duration profiles of aftermarket cams by providing the flow capacity needed to realize their full potential.
• Reduced Cylinder Temperature: Improved scavenging lowers residual exhaust gas (EGR effect) in the chamber, mitigating detonation and allowing for more aggressive ignition timing.
• Direct OEM Replacement Geometry: Maintains stock installed height, spring seat location, and keeper groove dimensions for drop-in compatibility with OEM or performance valvetrains (when used with appropriate springs).

Precise Vehicle Fitment & Compatibility

The BC3075S-8 set is engineered as a direct, no-modification-required upgrade for specific Honda D-series cylinder heads. Correct fitment is critical, as valve size, stem diameter, and overall length are head-specific. This set is designed to replace the stock exhaust valves only in the following applications:

Primary Applications:

• Honda Civic (1996-2000) – Equipped with the D16Y8 engine (USDM EX, Canadian Si, HX VTE-E).
• Honda Civic (1992-1995) – Equipped with the D16Z6 engine (USDM EX, Si, Canadian SiR).

Cylinder Head Compatibility: This valve set is designed for use with the following OEM cylinder head castings: P2E (D16Y8) and P08 (D16Z6). It is also compatible with aftermarket or refurbished heads based on these castings.

Valvetrain Note: While the valves are a direct geometric replacement, their use in high-RPM or high-lift applications mandates the pairing with upgraded valve springs and retainers, such as the Brian Crower BC-0200 or BC-0205 kits. The increased mass and potential for higher valve acceleration exceed the safe control limits of fatigued OEM springs.

Technical Specifications Table

Installation Guidelines & Valvetrain Synergy

Proper installation is non-negotiable to realize the performance and reliability benefits of the BC3075S-8 valves. The process begins with a professional valve job on the cylinder head. The new 27mm valves will require the exhaust valve seats to be carefully cut to match the new diameter and the 45-degree angle. A three-angle valve job (typically 45-30-60 degrees) is recommended to further optimize the flow transition from the chamber to the port. Always verify valve-to-piston clearance, especially in engines with high-lift cams, milled heads, or non-OEM pistons. A simple clay check is essential preventative maintenance.

These valves are part of a system. Their performance is intrinsically linked to the rest of the valvetrain. For any build exceeding stock RPM limits or using performance camshafts, pairing these valves with Brian Crower’s matched spring and retainer kits is critical. The spring pressure must be calculated to control the valve throughout the lift curve and prevent valve float. Understanding the dynamics of spring pressure, valve mass, and cam profile is key to a stable valvetrain. For a deeper dive into the science of valvetrain dynamics and spring selection, consult this authoritative resource on valvetrain dynamics from Engine Builder Magazine.

Finally, use quality lubricant on the valve stems during assembly and ensure a thorough break-in procedure for the camshaft and lifters as specified by your cam manufacturer. The BC3075S-8 valves, installed with precision and paired with complementary components, form the exhaust-side foundation of a D16Y8 or D16Z6 engine capable of producing exceptional, reliable power.
