BC6238-22 – Nissan RB26DETT – ProH625+ Connecting Rods w/ARP Custom Age 625+ Fasteners (22mm Pin)

In the pursuit of extreme power and absolute reliability from the legendary Nissan RB26DETT, the connecting rod stands as a critical pivot point between triumph and catastrophic failure. The BC6238-22 ProH625+ Connecting Rod Set with ARP Custom Age 625+ Fasteners from Brian Crower is not merely an upgrade; it is a fundamental re-engineering of this vital component for the modern era of high-output RB26 builds. Engineered for turbocharged applications targeting 800-1000+ horsepower with an uncompromising safety margin, this rod set transitions the RB26 from a robust factory design to a forged, race-proven architecture. Utilizing a proprietary, aerospace-grade ProH625+ alloy and paired with the industry’s pinnacle fastener technology from ARP, this assembly is designed for the severe thermal and mechanical stresses encountered in drag racing, time attack, and high-boost street applications. The precision-machined 22mm small end is optimized for aftermarket pistons, providing a direct, no-compromise link in your engine’s rotating assembly.

Technical Overview & Material Science

The foundation of the BC6238-22’s performance is the advanced ProH625+ alloy. This is a proprietary vacuum-arc remelted (VAR) steel that represents a significant leap over conventional 4340 and even standard 300M formulations. The VAR process drastically reduces inclusions and gaseous impurities, resulting in a billet of exceptional homogeneity and structural integrity. ProH625+ is characterized by its ultimate tensile strength exceeding 220,000 PSI and a yield strength that provides an exceptional fatigue life cycle under alternating loads. This material science is crucial for the RB26DETT, an engine known for its high cylinder pressures and rotational forces. The rods are forged, CNC-machined, shot-peened, and heat-treated to Brian Crower’s exacting specifications, ensuring consistent grain flow and eliminating potential weak points found in lesser, cast or improperly forged components. This process guarantees dimensional stability and strength retention even under the extreme heat cycling of repeated dyno pulls and competition use.

Precision Engineering & Design Features

Every facet of the ProH625+ rod’s design is optimized for the RB26’s architecture and the demands of high-performance use. The 22mm piston pin bore is a critical specification, accommodating a wider array of high-performance aftermarket pistons designed for serious power levels, offering increased strength over smaller pin diameters. The small end is precision honed to a proprietary profile to ensure optimal oil retention and distribution around the pin, preventing galling and seizure. The beam is designed with a strategic balance of mass reduction and cross-sectional area, maintaining critical stiffness to resist buckling under peak cylinder pressure while minimizing rotational inertia. The large end features a machined split line with a serrated or registered design (specific to the BC6238-22) that ensures perfect cap alignment and prevents cap walk under extreme RPM. Each rod is weight-matched to within ±1 gram per set, a necessity for achieving smooth, high-RPM operation and reducing harmonic vibrations that can destroy crankshafts and bearings.

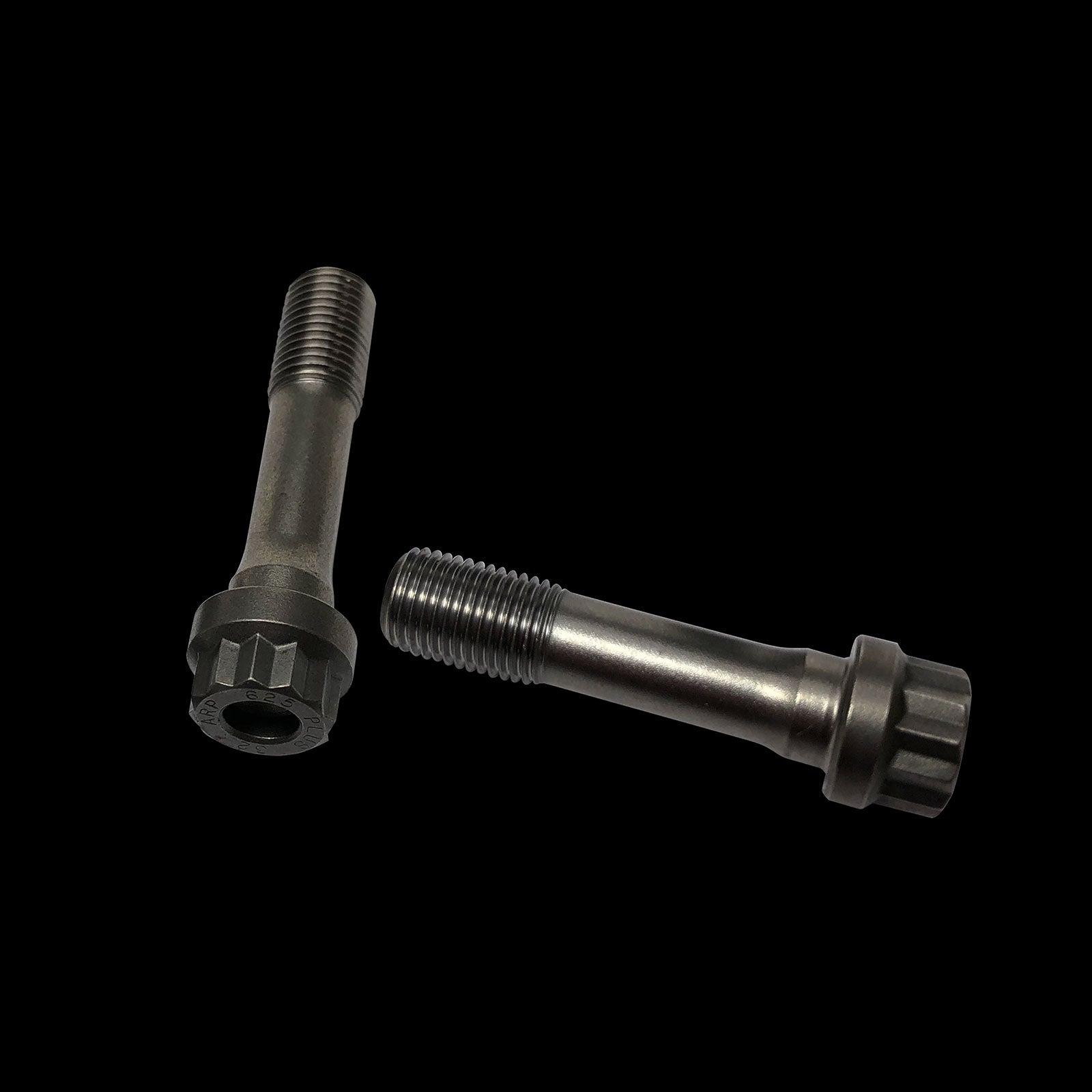

ARP Custom Age 625+ Fastener System

A connecting rod is only as strong as its bolted joint. Brian Crower eliminates this variable by including the ARP Custom Age 625+ fasteners as a standard, integrated component of the BC6238-22 kit. This is not an optional upgrade; it is a core part of the product’s identity. ARP’s 625+ alloy is a nickel-chromium-molybdenum superalloy with a tensile strength exceeding 260,000 PSI, offering roughly 25% greater clamp load and superior fatigue resistance compared to even their renowned 2000 series fasteners. The “Custom Age” heat treatment process tailors the material’s properties for the specific application, ensuring optimal ductility alongside its immense strength. These fasteners are engineered to withstand the elevated temperatures encountered in turbocharged engines far better than standard hardware. Their inclusion means the rod’s ultimate potential is fully realized from the outset, with a bolting system that matches the ProH625+ rod’s capability, creating a singular, cohesive, and ultra-high-strength assembly. For a deeper technical dive into fastener technology and rod design, consider this resource from Engine Builder Magazine on connecting rod designs.

• Unmatched Fatigue Life: ProH625+ material science ensures resistance to cyclic loading failures in high-RPM, high-boost environments.
• Extreme Power Capacity: Rated for applications exceeding 800-1000+ horsepower, providing a significant safety margin for RB26DETT builds.
• Integrated Premium Fastening: ARP 625+ bolts are included and matched to the rod design, guaranteeing joint integrity and eliminating component mismatch.
• Precision Balance & Weight Matching: Set balanced to within ±1 gram for reduced vibration, smoother operation, and enhanced bearing/crank longevity.
• Optimized for Modern Pistons: 22mm small end accommodates the most common and robust aftermarket piston pin sizes for forced induction builds.
• Competition-Proven Reliability: Forged, CNC-machined, shot-peened, and heat-treated construction meets the standards of professional drag and road racing teams.

Vehicle Fitment & Application Notes

The BC6238-22 ProH625+ Connecting Rod Set is engineered as a direct replacement for the factory connecting rods in the Nissan RB26DETT engine. Proper installation is paramount and requires precision machining and assembly by a qualified engine builder.

Direct Fitment:

• Nissan Skyline GT-R R32 (BNR32) – 1989-1994
• Nissan Skyline GT-R R33 (BCNR33) – 1995-1998
• Nissan Skyline GT-R R34 (BNR34) – 1999-2002
• Nissan Stagea 260RS (WGNC34) – 1998

Critical Installation Requirements: This is a machining-required component. The 22mm small end necessitates matching pistons with a 22mm pin bore. The large end is typically supplied with a nominal size and must be final-honed to the specific crankshaft journal diameter and desired bearing clearance by your engine machinist. Always use a quality set of aftermarket rod bearings (e.g., ACL Race, King, etc.) sized appropriately. Torque the ARP 625+ fasteners strictly according to the provided ARP specifications and lubricant, which is typically their proprietary Ultra-Torque fastener lubricant. Failure to follow precise machining and torque procedures will compromise the assembly’s integrity and void warranties.

Technical Specifications Table
