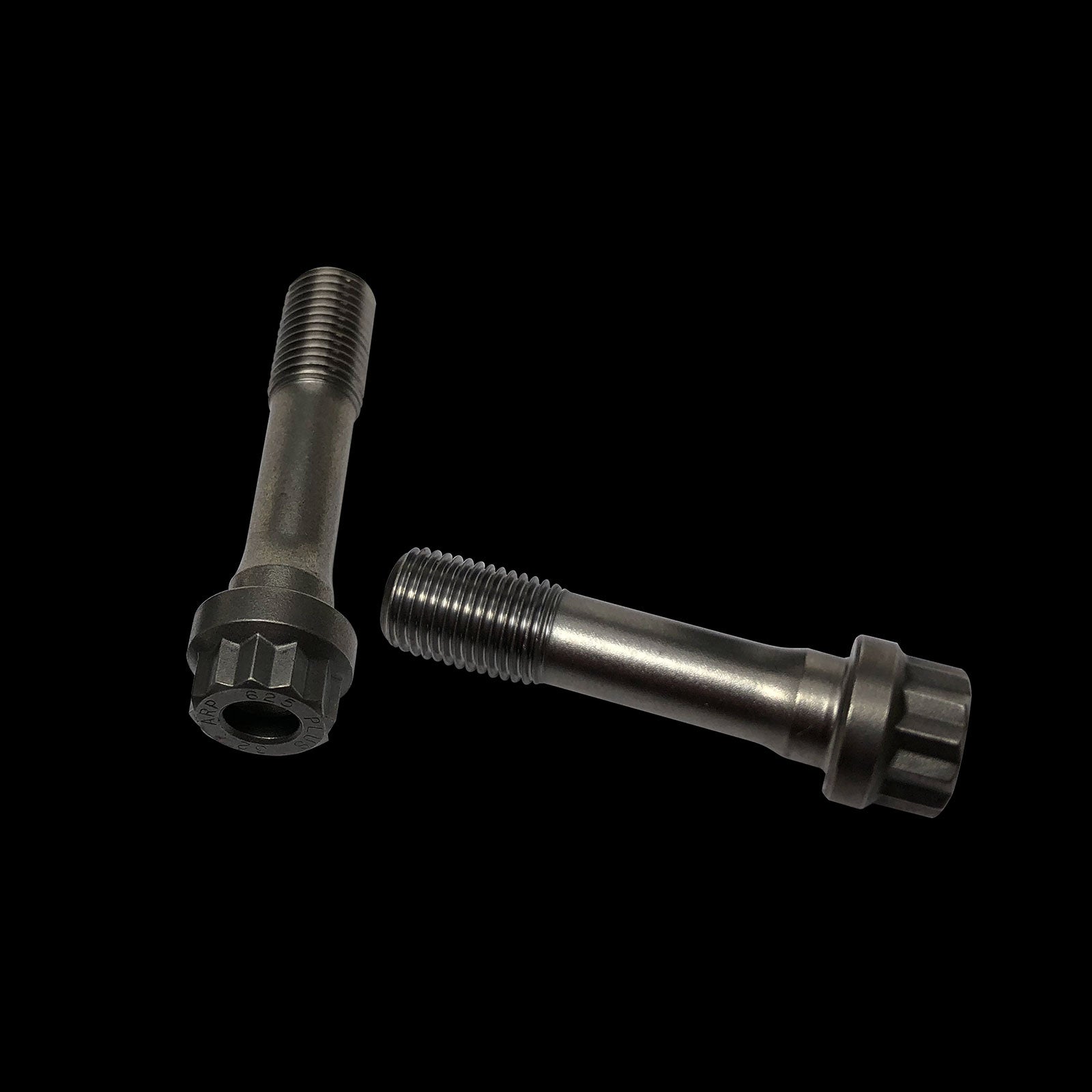

AR8910 – Connecting Rod Fastener/Rod Bolt – ARP Custom Age 625+ (3/8″ x 1.600″) – 1 only bolt

In the cathedral of high-performance engine building, where tolerances are measured in ten-thousandths of an inch and forces defy imagination, there exists a singular point of potential failure that no amount of horsepower can forgive: the connecting rod fastener. This is not merely a bolt; it is the linchpin of your rotating assembly, the final guardian against catastrophic kinetic energy release. The ARP AR8910 Custom Age 625+ rod bolt represents the absolute pinnacle of this critical component technology. Engineered for the most demanding applications—from nitro-burning dragsters and forced-induction monsters to high-RPM road race engines—this 3/8″ x 1.600″ fastener transcends conventional hardware. It is a product of advanced metallurgical science and precision manufacturing, designed not just to contain forces but to do so with a repeatable, predictable clamp load that is the very foundation of engine longevity and power potential. When you specify ARP Custom Age 625+, you are not buying a part; you are investing in the structural integrity of your entire engine.

The Metallurgical Foundation: Why Custom Age 625+ Is Revolutionary

To understand the AR8910 is to understand the material from which it is forged. While standard fasteners use materials like 8740 chrome-moly or even 2000-series stainless, ARP’s Custom Age 625+ alloy operates on a different plane entirely. This is a proprietary nickel-chromium superalloy, whose lineage traces back to aerospace applications where failure is not an option. The “625+” designation indicates a specific, enhanced composition and heat treatment process that yields a fastener with an extraordinary combination of tensile strength, fatigue resistance, and ductility. The key metric for a rod bolt is not merely its ultimate tensile strength (though at 260,000 psi, it is staggering) but its fatigue endurance limit—the stress level below which it will theoretically never fail from cyclic loading. The molecular structure of Custom Age 625+, achieved through a solution treating and aging process, provides a fatigue strength that is approximately double that of even high-quality alloy steels. This makes it uniquely resistant to the insidious, high-cycle fatigue induced by the relentless harmonic oscillations and combustion pulses within a running engine. For a deeper dive into the science of high-performance fastener materials, consider this authoritative resource on fastener metallurgy and selection.

Precision Engineering for Predictable Performance

Superior material is worthless without flawless execution. The AR8910 is a masterpiece of precision manufacturing. Every bolt is centerless-ground after heat treatment to achieve a diameter tolerance of ±0.0005″, ensuring a perfect, consistent fit in the rod’s bolt bore. The threads are rolled after heat treatment, a critical process that cold-works the material, compressing the grain structure along the thread roots—the most common point of stress concentration and failure in inferior bolts. This results in threads that are stronger than the bolt’s core shank. Furthermore, the underhead radius is meticulously machined to a specific profile, eliminating sharp transitions that create stress risers. The entire component is then subjected to ARP’s exclusive “Wavelike” finish, a unique polishing process that not only reduces surface friction during installation but, more importantly, removes microscopic surface imperfections that could serve as nucleation points for fatigue cracks. This holistic approach to manufacturing ensures that when torqued or tensioned, each AR8910 bolt behaves identically, providing a uniform, massive, and stable clamp load across all connecting rod caps.

Key Performance Benefits & Advantages

• Unmatched Fatigue Life: The Custom Age 625+ alloy offers superior resistance to cyclic stress failure, making it the definitive choice for high-RPM or high-cylinder-pressure applications.
• Extreme Tensile & Yield Strength: With a minimum tensile strength of 260,000 psi and a yield strength exceeding 220,000 psi, it provides a monumental safety margin over stock and many aftermarket fasteners.
• Superior Clamp Load Consistency: Precision manufacturing ensures each bolt elongates predictably, creating a stable, uniform clamping force that keeps rod bearings properly located and prevents cap fretting.
• Optimized for High-Stress Environments: Ideal for forced induction (turbo/supercharger), nitrous oxide, and all-out race engines where cylinder pressures routinely exceed 2,000 psi.
• Reusability: When installed and torqued correctly following ARP’s ultra-clean procedure and using their recommended lubricant, these bolts can be safely reused, unlike many OEM “stretch-to-yield” bolts which are one-time-use only.

Vehicle Fitment & Application Notes

Vehicle Fitment: The ARP AR8910 is a component-level upgrade and is not vehicle-specific in the traditional sense. Its application is determined by the specific connecting rod design and the engine builder’s requirements. It is engineered as a direct replacement or upgrade bolt for connecting rods that utilize a 3/8″ nominal diameter and require a 1.600″ length under the head (grip length). This bolt is famously used in a vast array of performance applications. Common uses include:

Upgrading factory rods in small-block Chevrolet applications (with appropriate machining), popular aftermarket rods from manufacturers like Eagle, Scat, and Callies, and many bespoke billet rods for LS, Ford Windsor/Cleveland, Chrysler Hemi, and imported performance engines. Critical: Fitment is entirely dependent on the specific rod’s bolt hole diameter, thread pitch (typically 24 UNF), and counterbore depth. Always verify dimensions against your rod manufacturer’s specifications before purchase. This bolt is a cornerstone in builds ranging from 500hp street engines to 2,000+hp professional drag racing engines.

Technical Specifications: The ARP AR8910 Decoded

Specifying the ARP AR8910 Custom Age 625+ rod bolt is a non-negotiable decision for the serious engine builder. It is the definitive solution for transforming the connecting rod from a potential liability into an asset of unshakeable reliability. This bolt encapsulates a simple truth: in the pursuit of extreme performance, the smallest components must be the strongest. Do not compromise the heart of your rotating assembly. Install ARP, and build with absolute confidence.
