BC6208 – Nissan SR20DE(T) – ProH625+ Connecting Rods w/ARP Custom Age 625+ (17mm width bearing)

In the relentless pursuit of power and reliability within the SR20 platform, the connecting rod stands as the definitive pivot point between triumph and catastrophic failure. For engineers and builders pushing the boundaries of forced induction and high-RPM endurance, the stock component becomes the primary liability. The Brian Crower BC6208 ProH625+ Connecting Rod Set for the Nissan SR20DE(T) is engineered not as an upgrade, but as a fundamental redefinition of this critical assembly. Incorporating the legendary ARP Custom Age 625+ fasteners as a standard feature, this set transforms the rotating assembly from a point of concern into the foundation of a bulletproof, high-horsepower engine. This is not merely a part; it is a calculated integration of aerospace-grade material science and precision motorsport manufacturing, designed explicitly for builds where margin for error is zero and performance is absolute.

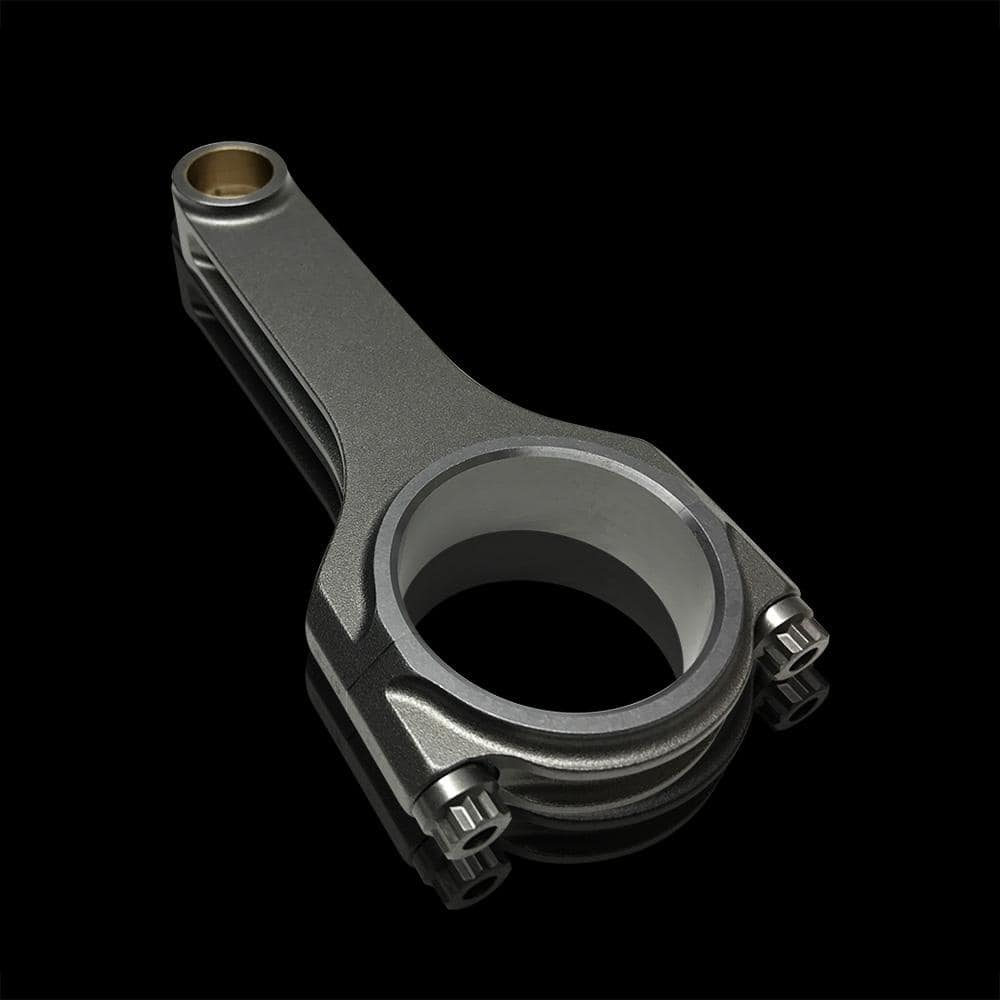

Engineering Superiority: The ProH625+ & ARP 625+ Synergy

The BC6208’s nomenclature, “ProH625+,” signifies a tier of performance beyond conventional H-beam designs. Manufactured from 4340 chromoly steel, each rod is forged under immense pressure to align the grain structure for optimal strength, then precision CNC-machined to exacting tolerances. The true differentiator, however, is the inclusion of ARP Custom Age 625+ rod bolts. These are not standard ARP2000 fasteners; the 625+ alloy represents the pinnacle of fastener technology, offering approximately 20% greater tensile and yield strength. The “Custom Age” heat treatment process ensures consistent, ultimate material properties, creating a clamp load so immense and reliable that it effectively removes the rod bolt from the failure equation in all but the most extreme applications. This synergy of a forged 4340 H-beam body and the ultimate fastener means the BC6208 is rated for horsepower levels that compromise lesser rods, making it the definitive choice for 500+ whp street engines and 1000+ hp all-out race builds targeting 9000+ RPM.

Precision Machining for Optimal Bearing and Piston Alignment

Beyond material strength, functional reliability is dictated by precision. Every BC6208 rod undergoes a multi-stage machining process. The big end is honed to a perfect round under controlled temperature to ensure the specified 17mm width bearing seats without distortion. The small end is precision-bored for a certified wrist pin fit. Most critically, the center-to-center distance is held to a tolerance far stricter than OEM specifications. This exacting consistency across all rods in the set ensures perfect deck height alignment, even piston-to-valve clearances, and balanced cylinder pressures—factors critical to achieving smooth, reliable high-RPM operation and maximizing the longevity of your bearing and ring seals.

Technical Specifications & Design Features

The BC6208 is a direct-fit, performance-forged replacement for the OEM SR20 connecting rod, but its specifications are tailored for high-performance assembly. It maintains the stock stroke and compression height, ensuring compatibility with a wide range of piston configurations without requiring block machining. The H-beam design provides an optimal balance of stiffness, strength, and weight, offering superior resistance to buckling under high cylinder pressure compared to I-beam designs. Critical surfaces, including the bolt shoulder and cap register, are machined to a mirror finish to prevent stress risers and ensure perfect, repeatable assembly.

Performance Benefits and Build Implications

Installing the BC6208 ProH625+ rods is a transformative step in any SR20 build. The benefits extend far beyond simple durability, influencing every aspect of engine performance and management.

• Unmatched Tensile Strength: The 4340 forging and ARP 625+ bolts provide a safety margin that allows builders to confidently explore high boost levels (40+ psi) and aggressive nitrous or ethanol applications without rod failure concerns.
• Enhanced High-RPM Stability: The reduced flex and precise weight matching minimize harmonic vibrations at extended RPM, protecting crankshaft bearings and allowing for a higher, safer rev limit.
• Optimized Bearing Life: The precision-honed big end and rigid design maintain perfect bearing clearances under extreme load, preventing localized heating and spun bearing failures.
• Foundation for Maximum Power: This set is the cornerstone for builds aiming for 500-1000+ wheel horsepower, effectively eliminating the rotating assembly as a bottleneck.
• Direct Fit, No Compromise: Maintains OEM dimensions for ease of installation while providing an exponential increase in performance capability.

Understanding Rod Ratio and Engine Character

By maintaining the stock center-to-center length, the BC6208 preserves the SR20’s original rod-to-stroke ratio. This ratio is a key geometric factor influencing piston speed, dwell time, and ultimately, the engine’s torque curve and volumetric efficiency. For a detailed analysis of how rod ratio affects engine performance and design philosophy, refer to this foundational technical article on connecting rod length and piston motion at EngineLabs. Preserving this ratio with a vastly stronger component allows builders to retain the engine’s inherent powerband characteristics while massively expanding its operational ceiling.

Vehicle Fitment and Application Notes

The BC6208 set is engineered as a direct replacement for the factory connecting rods in a broad range of Nissan SR20 engines. Correct fitment is critical for performance and reliability.

Primary Fitment:
Nissan SR20DET (Turbo) – Found in:

• Nissan Silvia S13, S14, S15
• Nissan 180SX / 240SX (JDM & conversion)
• Nissan Pulsar GTI-R (RNN14)
• Nissan Bluebird (U12)

Also Compatible With:
Nissan SR20DE (Naturally Aspirated) – As used in:

• Nissan Sentra SE-R (B13, B14)
• Nissan 200SX (S14)
• Nissan Altima (early models)

Nissan SR20VE (Variable Valve Lift) – The high-RPM, naturally aspirated variant. The BC6208 is an ideal upgrade for high-compression, high-RPM NA builds.

Critical Installation Note: These rods are designed for use with standard 17mm width performance crankshaft bearings. Always pair them with a matched set of high-quality, precision bearings (e.g., ACL Race Series, King Racing) and ensure final clearances are verified with precision micrometers and bore gauges during assembly. The rods are supplied with ARP Ultra-Torque fastener lubricant; using this lubricant and following ARP’s specified torque/angle procedure is non-negotiable for achieving the correct clamp load.

The Final Verdict: Non-Negotiable for Serious Performance

The Brian Crower BC6208 ProH625+ Connecting Rod Set with ARP 625+ fasteners represents the end of the search for a definitive SR20 rod solution. It transcends the category of “performance parts” by offering a level of engineered assurance that allows the builder to focus on tuning, airflow, and combustion—knowing the foundational link between piston and crank is an asset, not a concern. Whether you are building a responsive, high-boost street monster or a dedicated circuit or drag race engine, this component delivers the material strength, manufacturing precision, and technical pedigree required to execute your vision with confidence. In the calculus of performance engine building, where every component is a variable, the BC6208 is a constant: maximum strength, zero compromise.
