BC0026B – Honda B18/B20 Stroker Kit – 92mm Stroke Billet/ProH2K Long Rods (5.512″)

Engineering the Ultimate B-Series Displacement: The BC0026B 92mm Stroker Kit

In the realm of Honda B-series performance, the pursuit of torque and horsepower often leads builders to a fundamental crossroad: forced induction or increased displacement. For those who demand a broad, responsive powerband and the visceral feel of a large, naturally-aspirated engine, stroking is the definitive answer. The BC0026B Honda B18/B20 Stroker Kit from Brian Crower represents the pinnacle of this approach, transforming the legendary 1.8L and 2.0L platforms into a torque-monster 2.1L+ powerhouse. This isn’t merely a collection of parts; it’s a fully engineered system, centered around a massive 92mm stroke billet crankshaft and matched with purpose-built 5.512″ ProH2K long rods and forged pistons. Designed for the serious builder, this kit addresses the core limitations of the factory rotating assembly, delivering not just increased cubic inches, but a robust, high-RPM capable foundation for all-out NA, nitrous, or turbocharged builds.

The Core Engineering Challenge: Stroke vs. Rod Ratio

Increasing an engine’s stroke is the most effective way to gain displacement and, consequently, torque. However, a longer stroke introduces significant secondary forces and alters the engine’s rod ratio—the relationship between connecting rod length and piston stroke. A poor rod ratio can increase piston skirt and cylinder wall loading, hinder high-RPM stability, and promote detonation. The genius of the BC0026B kit lies in its holistic design. Brian Crower doesn’t just slap a long-stroke crank into a block; they engineer the entire rotating assembly to work in harmony. The kit utilizes extra-long 5.512-inch (140mm) ProH2K billet rods. These long rods help preserve a favorable rod ratio even with the increased 92mm stroke, reducing side-loading for decreased friction and improved ring seal. This careful balancing act results in an engine that feels incredibly strong off the corner but remains stable and efficient deep into the 8,000+ RPM range, a critical factor for road racing or high-RPM turbo applications. For a deeper dive into the physics of rod ratio and its effects on engine dynamics, this technical article from Engine Builder Magazine provides excellent context.

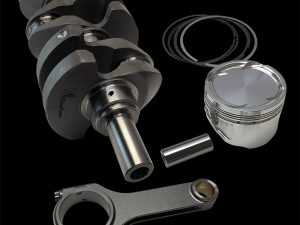

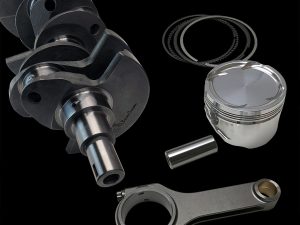

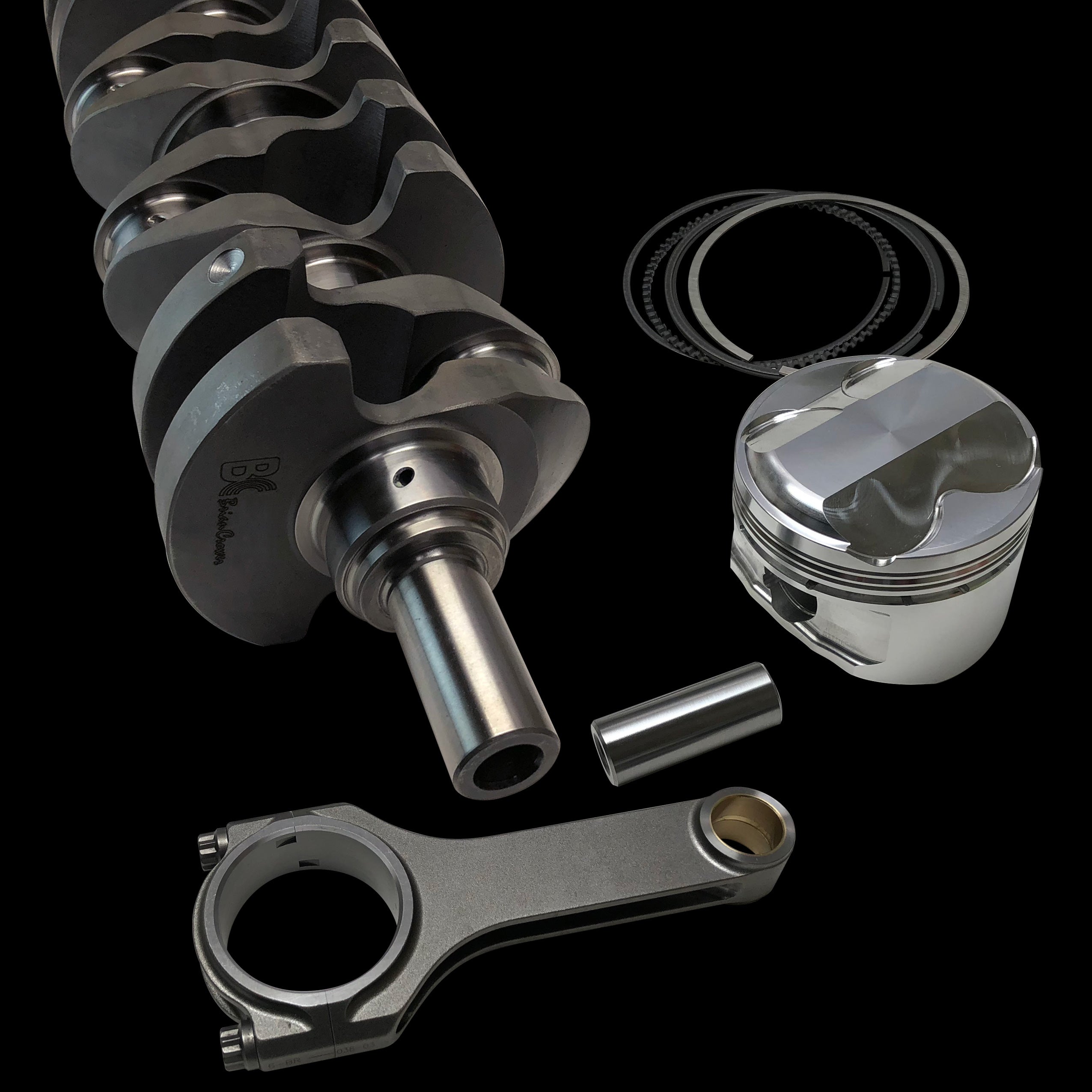

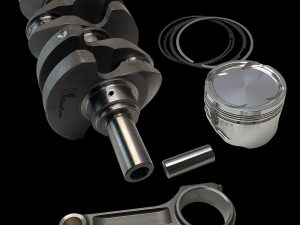

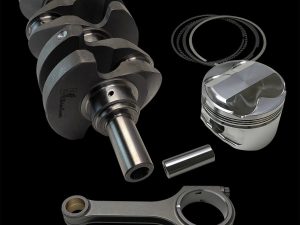

Component Breakdown: A Forged Foundation for Power

Every component in the BC0026B kit is selected and manufactured to withstand the immense stresses generated by a high-performance stroker motor. This is a kit for builders who leave nothing to chance.

• Billet 4340 Steel Crankshaft (92mm Stroke): The heart of the system. Machined from a single billet of premium 4340 chromoly steel, this crank offers superior grain structure and strength over a forged or cast unit. The 92mm stroke yields a dramatic increase in displacement—approximately 2.1L in a B18 block and up to 2.2L in a B20 block. It’s fully counterweighted, precision balanced, and features micro-polished journals for optimal oiling and durability.
• ProH2K 4340 Billet Steel Connecting Rods (5.512″ Length): These are not modified OE-length rods. They are specifically engineered to the 5.512″ length to optimize the rod ratio for the 92mm stroke. Made from 4340 billet steel with a pro-H-beam design, they offer an incredible strength-to-weight ratio, handling the increased inertial loads without flex or failure.
• Forged Aluminum Pistons (Included w/ Rings and Pins): The kit includes custom forged pistons designed to match the increased deck height created by the long rod/long stroke combo. They feature a high-silicon content for thermal stability, precision CNC-machined valve reliefs for your specific cylinder head, and are supplied with high-performance piston rings and wrist pins for a complete, ready-to-assemble package.
• Performance Main and Rod Bearings: A complete set of precision-clearance bearings is included to ensure proper oil film thickness and durability under high-load conditions.

Vehicle Fitment & Block Preparation

The BC0026B kit is engineered for specific Honda B-series engine blocks. Proper identification and block machining are absolutely critical for a successful build. This kit is designed for use in a B18C1, B18C5 (Integra Type R), B18B1, or B20B/Z engine block. It is not compatible with the smaller-journal B16A or B17A crankshafts. Due to the significant increase in stroke, block clearance machining is mandatory. The cylinder block must be clearanced (“notched”) to prevent the connecting rods from contacting the block at the bottom of the stroke. Furthermore, the use of longer rods will change the deck height, requiring careful measurement and likely decking of the block or the use of specific head gaskets to achieve your target compression ratio and quench. Consultation with your machinist is essential before purchase.

Technical Specifications & Final Build Considerations

Understanding the precise specifications of this kit is key to integrating it into your overall engine build strategy. The table below outlines the core technical data.

To realize the full potential of the BC0026B stroker kit, supporting modifications are required. A performance valvetrain (springs, retainers, camshafts) is necessary to manage the higher piston speeds and exploit the increased displacement. Fuel delivery (injectors, pump, management) must be scaled accordingly, especially for forced induction. Finally, a professional engine balance of the entire rotating assembly—including your clutch/flywheel and harmonic balancer—is non-negotiable for longevity and smooth operation. When executed correctly, the Brian Crower BC0026B Stroker Kit delivers a transformative increase in mid-range torque and top-end power, creating a B-series engine that dominates on the street, strip, or circuit.
