BC0040X – Honda K20A/K20Z/F20C/F22C Spring/Titanium Retainer Kit

For the performance Honda engine builder targeting sustained high-RPM operation, valve float is the definitive enemy. It is the mechanical limit that caps power, compromises timing, and risks catastrophic valvetrain failure. The Brian Crower BC0040X Spring and Titanium Retainer Kit is engineered as a definitive solution, transforming the valvetrain of your K20A, K20Z, F20C, or F22C engine into a component of absolute resilience and precision. This isn’t an incremental upgrade; it’s a foundational rebuild of your engine’s breathing apparatus, designed to support radical camshaft profiles, elevated rev limits exceeding 9000 RPM, and the immense cylinder pressures of forced induction or high-compression NA builds. Every component in the BC0040X kit is the result of metallurgical science and relentless dyno testing, providing the controlled valve motion essential for extracting every last horsepower while ensuring bulletproof reliability.

Engineering Analysis: The BC0040X Component Suite

This kit is a complete system, where each component is precision-matched to work in flawless harmony under extreme stress. It addresses the inherent limitations of the stock Honda valvetrain, which, while robust for OEM purposes, becomes the primary failure point under performance loads.

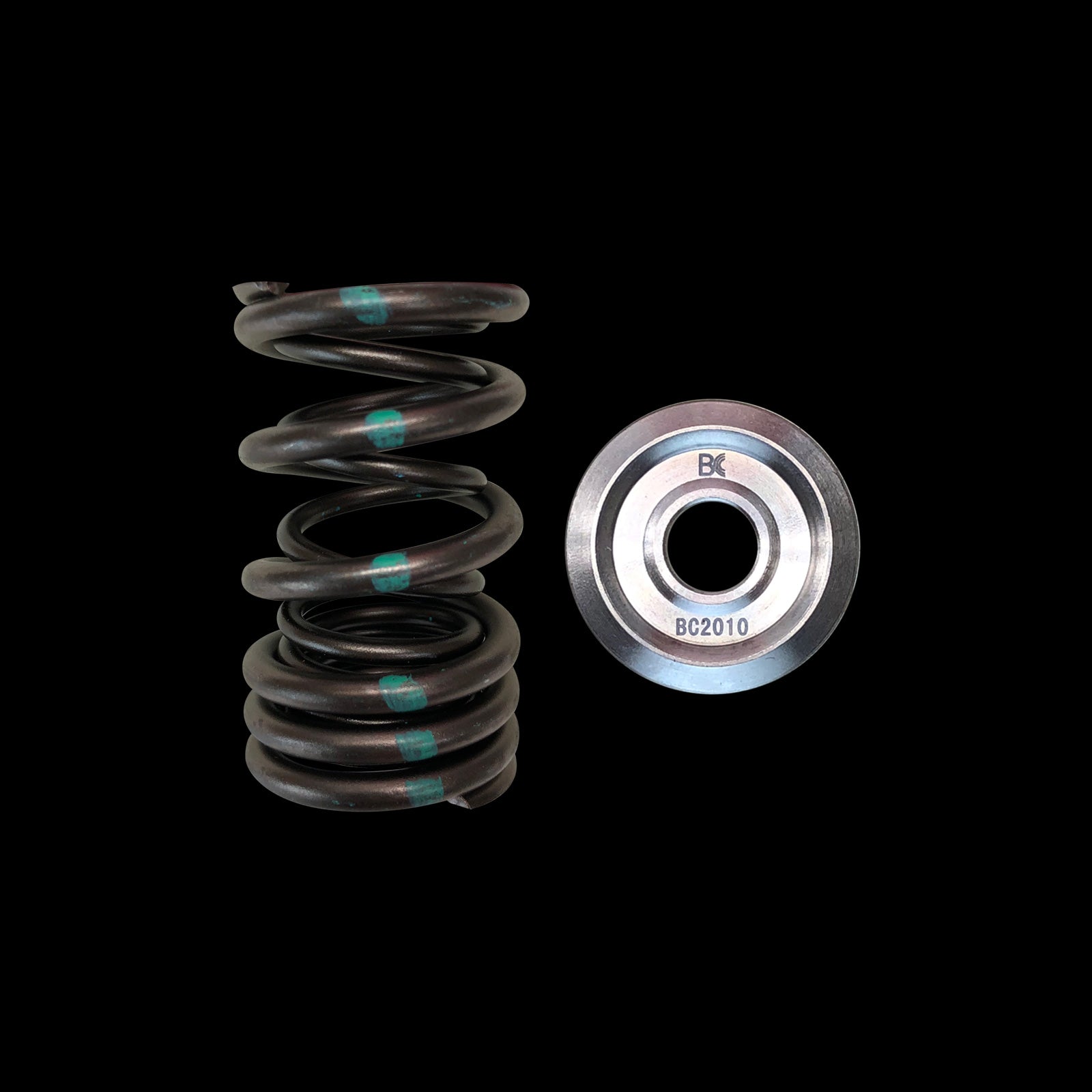

Dual Valve Spring Design & Titanium Retainers

The core of the BC0040X is its proprietary dual valve spring system. Utilizing a primary inner spring and a secondary outer spring, this design provides a significantly higher seat pressure and open pressure compared to any single spring. This aggressive pressure curve ensures the valve follows the cam lobe profile exactly, even with high-lift, rapid-ramp camshafts, preventing valve bounce and float. The springs are manufactured from premium chrome-silicon alloy wire, heat-treated and shot-peened for maximum fatigue resistance and consistent performance cycle after cycle.

Paired with these springs are Brian Crower’s machined titanium retainers. The switch from stock steel to titanium is a critical performance calculation. Titanium offers a supreme strength-to-weight ratio, dramatically reducing the reciprocating mass in the valvetrain. This reduction in inertial load allows the springs to control the valve with less effort, reduces stress on the entire camshaft assembly, and directly contributes to the engine’s ability to achieve and maintain higher RPMs safely. As noted in a technical discussion on valvetrain dynamics by EngineLabs, the mass savings from titanium retainers can have a profound effect on valvetrain stability at extreme engine speeds.

Performance Advantages & Direct Benefits

Installing the BC0040X kit recalibrates the operational envelope of your Honda powerplant. The benefits are measurable, both on the dyno and in terms of long-term durability.

• Eliminate Valve Float to 9500+ RPM: Provides the necessary spring pressure to maintain positive valve control with aggressive camshafts, enabling you to safely raise your rev limit and access power in a higher RPM band.
• Support for Aggressive Cam Profiles: Allows for the use of high-lift, long-duration camshafts without risk of valve bounce, ensuring the cam’s designed airflow profile is fully realized.
• Enhanced Forced Induction & High-Compression Reliability: Prevents valve blow-by under high cylinder pressure, maintaining a proper seal for maximum combustion efficiency and preventing power loss or backfire.
• Reduced Valvetrain Inertia: The titanium retainers decrease reciprocating mass, lowering the stress on springs, cam lobes, and lifters, leading to less wear and longer component life.
• Increased Margin of Safety: Provides a significant safety buffer over stock, protecting your investment in pistons, valves, and the cylinder head from costly valvetrain failure.
• Optimized for Performance Use: Springs are designed for minimal pressure loss over time (sag resistance), ensuring consistent performance throughout the lifespan of the components.

Precise Vehicle & Engine Fitment

The BC0040X kit is specifically engineered for Honda’s premier high-RPM four-cylinder engines. Correct fitment is paramount for proper operation.

Primary Application: This kit is designed for use with standard diameter valves (5mm stem for intake, 5.5mm stem for exhaust, as per OEM specifications). It is a direct replacement for the OEM spring and retainer assembly.

Compatible Honda Engine Codes:

• K20A (JDM Integra Type R DC5, Civic Type R EP3)
• K20A2 (RSX Type S, European Civic Type R)
• K20Z1 (2006-2011 Civic Si)
• K20Z3 (2007+ Acura CSX Type S, Canadian Civic Si)
• F20C (2000-2005 Honda S2000 AP1)
• F22C (2006-2009 Honda S2000 AP2)

Critical Installation Note: Installing these higher-pressure springs mandates corresponding upgrades to other valvetrain components. You must install upgraded valve locks/keepers (such as Brian Crower’s matching BC-2610 7° locks) designed for the retainer’s machined groove. Furthermore, verifying proper installed height and coil bind clearance with your specific camshafts and valves is a non-negotiable step in the build process. Failure to do so will result in component failure.

Technical Specifications & Build Data

The following table details the exact engineering specifications of the BC0040X Kit. This data is essential for engine builders calculating valvetrain geometry and verifying compatibility.

System Integration & Final Build Notes

The Brian Crower BC0040X is not a standalone modification. It is the critical heart of a fully developed performance valvetrain system. For optimal results and absolute reliability, it should be installed alongside Brian Crower or equivalent performance camshafts, hardened steel spring seats (where applicable), and high-quality valve guides and seals. Always perform a meticulous “mock-up” assembly of one cylinder to measure and verify installed height, check for coil bind (ensure there is a minimum of 0.060″ clearance between spring coils at maximum lift), and confirm retainer-to-seal/guide clearance. This kit represents the gold standard for serious Honda performance builds, providing the mechanical integrity needed to transform a potent engine into a relentless, high-RPM masterpiece.
