BC0226 – Nissan VQ35DE Stroker Kit – 86.4mm Stroke/ProH2K Rods – Balanced

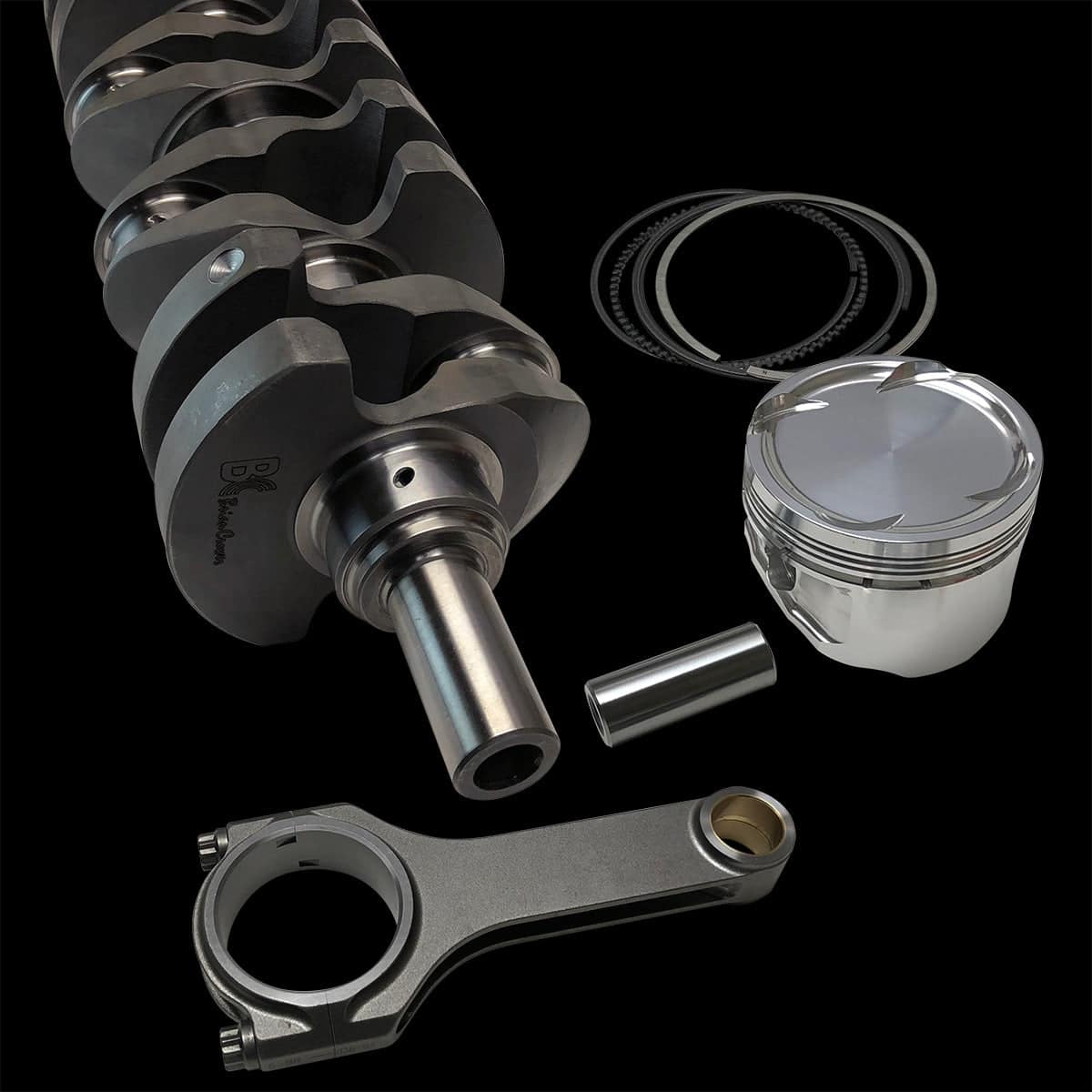

In the pursuit of ultimate naturally aspirated performance from Nissan’s legendary VQ platform, displacement is the undisputed king. For builders of the VQ35DE engine who view factory limits as mere suggestions, the BC0226 Stroker Kit from Brian Crower represents the definitive hardware upgrade, transforming the 3.5-liter foundation into a ground-pounding 4.07-liter masterpiece. This isn’t merely a collection of parts; it is a fully engineered, precision-balanced system designed for one purpose: to deliver massive, reliable gains in torque and horsepower through increased displacement and bulletproof rotating assembly integrity. Engineered for the serious competitor or discerning enthusiast, the BC0226 kit centers on a monumental 86.4mm stroke billet crankshaft, mated to proprietary ProH2K connecting rods and custom forged pistons, creating a synergistic package that redefines the VQ’s performance ceiling. Every component is scrutinized and balanced to exacting tolerances, ensuring that the substantial increase in inertial mass translates seamlessly into rotational force at the crankshaft, not destructive vibration within the block.

Engineering Philosophy: The Billet Crankshaft & 86.4mm Stroke

The heart of any stroker kit is the crankshaft, and the BC0226 utilizes a CNC-machined 4340 chromoly steel billet component—a significant departure from re-ground or cast OEM units. Starting from a solid billet allows for optimal grain structure and material density, resulting in a crank with superior tensile strength and fatigue resistance under extreme loads and RPM. The critical 86.4mm stroke is not an arbitrary figure; it is the calculated maximum practical stroke increase for the VQ35DE block that maintains proper piston-to-rod angularity and skirt clearance, avoiding the pitfalls of excessive side-loading that can compromise ring seal and cylinder wall life. This stroke, combined with the appropriate bore, achieves the coveted 4.07-liter displacement, offering a nearly 16% increase in swept volume. The crank features micro-polished journals and radii, shot-peened fillets for enhanced stress resistance, and is fully counterweighted to manage the increased mass of the longer-stroke assembly. It is the foundation upon which the entire kit’s reliability and performance are built.

ProH2K Connecting Rods & Forged Pistons: The Critical Link

Connecting the aggressive stroke of the crankshaft to the combustion chamber requires a rod that can handle the altered dynamics. Brian Crower’s ProH2K 4340 chromoly steel rods are the perfect solution. The “H2K” designation signifies a specific, high-strength alloy and a high-quality, high-pressure cap design that ensures absolute rigidity at the big end. These rods are weight-matched, magnaflux inspected, and feature ARP 2000 cap screws as standard—the industry benchmark for fastener strength. They are engineered for the increased angularity and loading of the stroker application. The included custom forged pistons are manufactured from high-grade 2618 aluminum alloy, chosen for its superior ductility and strength under high-temperature, high-horsepower conditions. They feature a designed compression height specifically for the 86.4mm stroke and ProH2K rod combination, ensuring correct deck clearance. Valve reliefs are CNC-machined to accommodate aggressive camshaft profiles, and the pistons come complete with a moly-coated skirt for reduced friction and break-in wear, and weight-matched pins.

Complete System Benefits & Balanced Assembly

The true value of the BC0226 kit lies in its completeness and integration. Purchasing disparate components risks dimensional mismatch and imbalance. This kit provides a harmonized rotating assembly where every part is designed to work in concert.

• Substantial Displacement Gain: Achieves a reliable 4.07L (4070cc) from the VQ35DE block, unlocking massive low-end and mid-range torque.
• Unmatched Rotating Assembly Strength: Billet crank, ProH2K rods, and 2618 forged pistons create a foundation capable of supporting 1000+ horsepower with forced induction.
• Professional Blueprinting & Balancing: Each kit is fully balanced as an assembly (crank, rods, pistons, pins, rings). This process minimizes harmonic vibrations, reduces bearing wear, and allows the engine to rev more freely and reliably.
• Optimized Compression & Clearances: Pistons are available in various compression ratios to match your fuel and boost strategy, and all critical clearances (ring end-gap, piston-to-wall) are pre-calculated for performance builds.
• Comprehensive Package: Includes everything needed: crankshaft, connecting rods, pistons, wrist pins, piston rings, and main & rod bearings. This simplifies sourcing and ensures compatibility.

Proper engine balancing is a cornerstone of high-revving, durable performance. An unbalanced rotating assembly creates destructive harmonics that lead to premature bearing failure, cracked components, and power loss. The balancing process for the BC0226 kit is meticulous, involving spinning the entire assembly on a dynamic balancer and removing mass from the crank counterweights as needed to achieve a near-perfect equilibrium. For an in-depth look at this critical process, consider reading about the science of rotating assembly balancing.

Vehicle Fitment & Application Notes

The BC0226 Stroker Kit is engineered specifically for the Nissan VQ35DE engine block. This engine was used in a wide range of popular performance and luxury vehicles. It is critical to verify your engine’s specific variant (e.g., DE, DE Rev-Up) as head and intake components may differ. The kit fits vehicles including, but not limited to:

• Nissan 350Z (2003-2006) – VQ35DE
• Nissan Altima SE-R (2002-2006) – VQ35DE
• Nissan Maxima (2002-2006) – VQ35DE
• Infiniti G35 Sedan/Coupe (2003-2006) – VQ35DE
• Infiniti FX35 (2003-2008) – VQ35DE

Important Considerations: Installation requires complete engine disassembly and machining. The block must be bored and honed to the exact piston diameter specified with your kit, and the crank journals must be precision measured. It is highly recommended that assembly be performed by a professional engine builder familiar with high-performance VQ platforms. Upgraded head gaskets, head studs (like ARP), and a comprehensive engine management tune are mandatory for a successful build.

Technical Specifications: BC0226 Stroker Kit
