BC0249 – Nissan VR38DETT Stroker Kit – 94.4mm Stroke/ProHD Rods (I Beam) – Balanced

In the relentless pursuit of power and durability, the architecture of an engine is its ultimate blueprint. For the legendary Nissan VR38DETT—the heart of the R35 GT-R—extracting significant, reliable horsepower beyond its stock configuration demands a fundamental re-engineering of its rotating assembly. This is not a task for bolt-on components, but for a foundational upgrade that redefines the engine’s core characteristics. The Brian Crower BC0249 Nissan VR38DETT Stroker Kit represents this pinnacle of engineering intent. It is a meticulously balanced system designed to transform the 3.8-liter twin-turbo V6 into a displacement monster, leveraging a substantial 94.4mm stroke coupled with the uncompromising strength of ProHD I-Beam connecting rods. This kit is the definitive choice for builders targeting stratified levels of forced-induction power, where increased displacement provides a broader, more efficient torque curve and the forged rotating assembly ensures absolute integrity under extreme cylinder pressure. It is a calculated step for those who understand that ultimate performance is built from the crankshaft up.

Engineering the Foundation: The Stroke Displacement Advantage

The primary mechanical intervention of the BC0249 kit is the increase in engine displacement through a lengthened stroke. By installing a BC forged steel crankshaft with a stroke increased from the factory 88.4mm to 94.4mm, the kit elevates the VR38DETT’s total displacement to approximately 4.1 liters (or 4,096cc, dependent on final bore size). This is not merely a numbers game; it is a fundamental shift in performance dynamics. The longer stroke increases the engine’s swept volume, meaning each combustion event moves a greater mass of air and fuel. The immediate benefit is a substantial increase in low-end and mid-range torque, as the engine becomes inherently more efficient at generating cylinder pressure. For turbocharged applications, this is transformative. The larger displacement engine will spool larger turbochargers more quickly, reduce turbo lag, and produce more power across a wider RPM band. It allows the engine to make more power with less boost pressure, reducing heat and stress on the entire system—a critical factor for reliability in high-horsepower builds. This approach is detailed in resources discussing displacement tuning in modern performance engines.

The Core Components: Uncompromising Forged Strength

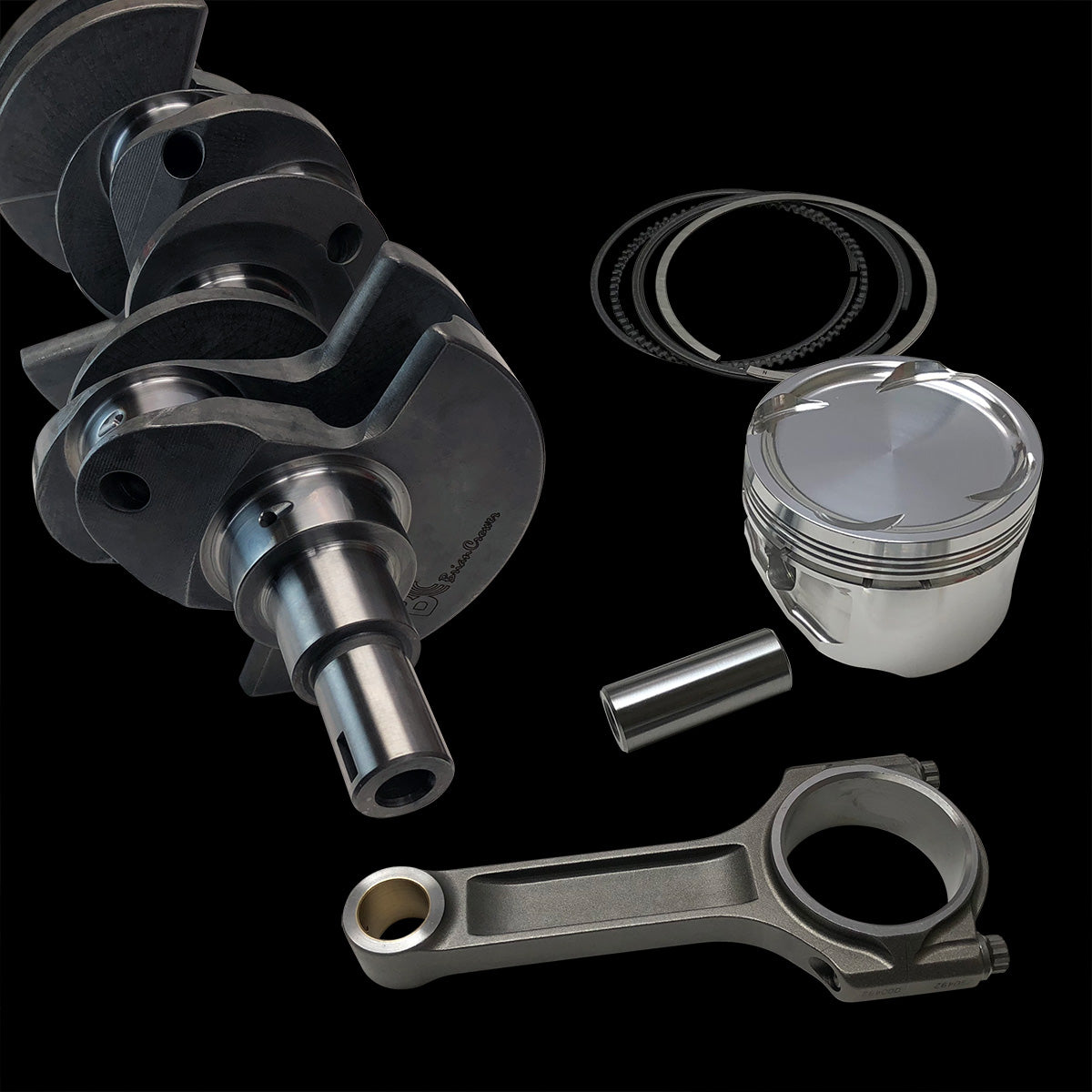

Increased displacement and cylinder pressure mandate components that operate far beyond OEM specifications. The BC0249 kit answers this with a fully forged rotating assembly of exceptional quality and design.

Forged Steel Stroker Crankshaft

The heart of the system is the 4340 forged steel crankshaft. Manufactured to exacting tolerances, it features the extended 94.4mm stroke, fully counterweighted design for optimal balance, and precision-machined journals. Its forged construction provides a superior grain structure compared to cast units, offering immense tensile strength and fatigue resistance to handle the tremendous torsional loads generated by high horsepower and aggressive tuning.

ProHD I-Beam Connecting Rods

Connecting the increased-stroke crank to the pistons are Brian Crower’s renowned ProHD I-Beam rods. Constructed from 4340 chromoly steel, the “I-Beam” design refers to the shape of the rod’s beam section, which maximizes material strength along the axis of force while minimizing weight. This design is exceptionally resistant to buckling and stretching under high cylinder pressure, making it the preferred choice for extreme horsepower, high-RPM, and high-boost applications. Each rod is shot-peened for increased surface hardness and fatigue life, and fitted with high-grade ARP2000 rod bolts as standard—the industry benchmark for fastener strength.

Forged Aluminum Pistons

Completing the assembly are a set of custom forged 2618 aluminum pistons. These are designed specifically for the increased stroke and deck height, ensuring proper compression height and valve clearance. The 2618 alloy is favored for ultimate strength in severe-duty applications, though it requires slightly larger cold piston-to-wall clearances. They feature a robust dome design compatible with increased displacement and are typically supplied with a low-friction skirt coating and appropriate ring grooves for premium piston rings.

Performance Benefits and Build Considerations

Integrating the BC0249 Stroker Kit into a VR38DETT build is a strategic decision that yields a cascade of performance advantages, but requires expert execution.

• Substantial Displacement Increase: Achieve approximately 4.1 liters of capacity, providing a foundational gain in torque and volumetric efficiency.
• Enhanced Turbo Response: Larger displacement significantly improves spool characteristics, reducing lag and improving drivability, especially with large-frame turbo upgrades.
• Increased Power Potential: More displacement allows for greater horsepower production at lower, safer levels of boost pressure, reducing thermal load on cylinders and head.
• Superior Structural Integrity: The fully forged rotating assembly (crank, rods, pistons) is engineered to withstand the extreme stresses of 1,500+ horsepower applications and sustained high-RPM operation.
• Optimized Engine Balance: The kit is sold as a balanced assembly, meaning the crankshaft, rods, and pistons have been dynamically balanced as a set to minimize harmonic vibrations, a critical factor for engine longevity at high power levels.

Critical Build Note: Installing a stroker kit of this magnitude is a comprehensive engine build. It necessitates meticulous blueprinting, precise machine work on the engine block (likely boring/honing), verification of all clearances (piston-to-wall, rod side clearance, crankshaft endplay), and complementary upgrades to the fuel system, turbochargers, engine management, and cooling systems to realize its full potential. Professional assembly is non-negotiable.

Technical Specifications & Vehicle Fitment

The BC0249 is engineered as a complete, balanced system for a specific range of vehicles. Below are the precise technical details and compatible applications.

Vehicle Fitment

This stroker kit is designed specifically for the Nissan VR38DETT engine platform. Its primary application is for:

• Nissan GT-R R35 (2009-Present): All model years utilizing the VR38DETT engine. This includes base, Premium, Track Edition, and NISMO models. Installation requires complete engine removal and teardown.

Disclaimer: Final fitment and performance depend on correct installation, supporting modifications, and proper tuning by a qualified professional. Always verify the latest fitment data with the manufacturer or authorized dealer prior to purchase.

Conclusion: The Strategic Path to Maximum VR38 Potential

The Brian Crower BC0249 Stroker Kit is more than a collection of parts; it is a engineered solution for displacing the boundaries of the VR38DETT platform. By fundamentally increasing engine capacity to 4.1 liters and underpinning that gain with the legendary strength of ProHD I-Beam rods and a forged rotating assembly, it provides the robust mechanical foundation required for four-digit horsepower builds. The benefits—increased torque, improved turbo response, and vastly increased power ceiling—are transformative. For the serious GT-R builder or professional shop, this kit represents the definitive step in constructing an engine capable of dominating the strip, the circuit, or the dyno charts with unshakeable reliability. It is the choice when the objective is not just more power, but the absolute maximum potential built on a foundation of proven, precision engineering.
