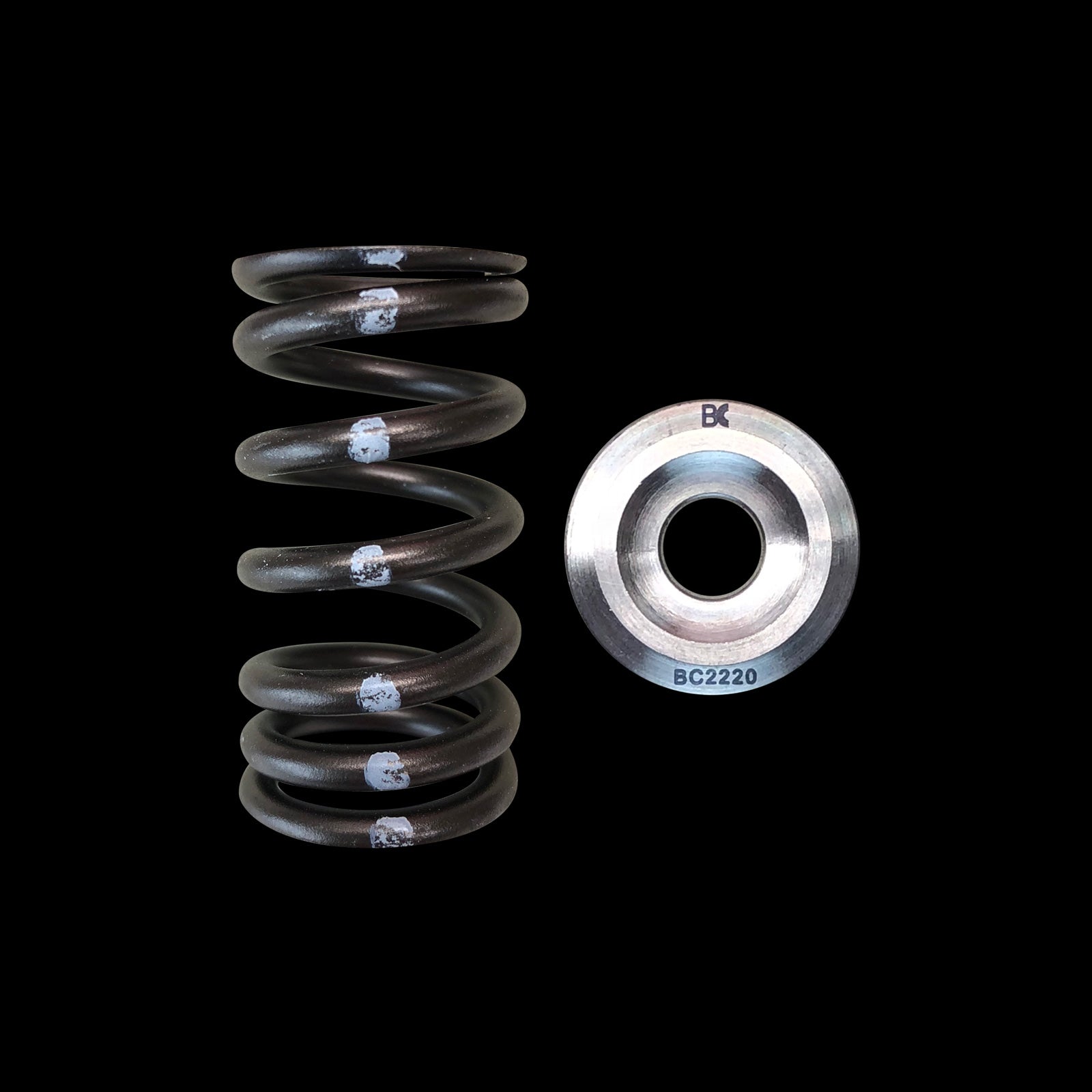

In the realm of high-output naturally aspirated and forced-induction engine builds, the valvetrain is the critical frontier between reliable power and catastrophic failure. For the potent Nissan VK56DE 5.6L V8 engine—found in applications from the formidable Titan truck to the high-revving Infiniti M56 and QX56—the factory valve springs represent a significant bottleneck. The BC0270 Single Spring and Titanium Retainer Kit from Brian Crower is engineered to systematically dismantle this limitation. This is not a generic upgrade; it is a precision-engineered system designed to replace the OE dual-spring setup with a superior, single-wound, high-pressure spring matched with lightweight titanium retainers. The primary mission is to eliminate valve float, ensure precise valve actuation at elevated RPM, and provide the valvetrain stability necessary to unlock the full potential of aggressive camshafts and increased engine speeds, thereby transforming the VK56DE from a robust truck motor into a responsive, high-winding performance powerhouse.
Engineering Analysis: The Weakness of OEM and the BC Solution
The stock Nissan VK56DE utilizes a dual-spring configuration, a common OEM choice aimed at controlling costs and providing adequate dampening for a wide range of factory conditions. However, for performance applications, this design introduces friction, heat, and potential for resonance at high frequencies. Under the increased load of a performance cam profile or the sustained high RPM of track use, the factory springs can succumb to coil bind, surge, and ultimately valve float, where the spring fails to close the valve in time with the cam lobe. The BC0270 kit addresses this with a calculated, single-spring design. Manufactured by PAC Racing Springs, a leader in valvetrain technology, these springs are wound from premium chrome-silicon wire, shot-peened for fatigue resistance, and heat-treated to maintain consistent pressure. The switch to a single spring reduces internal friction and mass, runs cooler, and is specifically wound to avoid harmonic frequencies within the operational RPM range of a built VK56DE.
Core Benefits of the BC0270 Valvetrain System
- Eliminates Valve Float for High-RPM Stability: Provides increased seat and open pressure to securely control the valve at engine speeds exceeding 7,000+ RPM, critical for performance camshafts and maximizing horsepower.
- Lightweight Titanium Retainers for Reduced Inertia: The included 7° titanium retainers significantly reduce reciprocating mass compared to steel, allowing for quicker valve acceleration/deceleration, reduced stress on the spring, and higher achievable RPM.
- Enhanced Durability and Consistency: Chrome-silicon material and advanced manufacturing processes ensure minimal pressure loss over time, providing reliable performance in extreme conditions, including forced induction.
- Optimized for Aftermarket Camshafts: Designed to work in concert with aggressive Brian Crower and other performance cam profiles, preventing coil bind and ensuring the cam’s intended lift and duration are accurately executed.
- Direct, No-Modification Fitment: Engineered as a complete drop-in replacement for the OEM components, utilizing the same spring seats and valve seals, streamlining the installation process.
Technical Specifications and Compatibility Data
Precision is paramount. The BC0270 kit’s effectiveness stems from its exacting specifications, tailored to the VK56DE’s geometry while providing a substantial performance margin. The following table details the critical technical data that defines this kit’s capabilities.
| Specification | Detail |
|---|---|
| Part Number | BC0270 |
| Spring Type | Single, Beehive (PAC Racing 1221X) |
| Retainer Material | Aerospace-Grade Titanium (6AL-4V) |
| Seat Pressure (installed) | Approx. 90-95 lbs @ 1.800″ |
| Open Pressure | Approx. 240-250 lbs @ 1.200″ |
| Coil Bind Height | 1.100″ |
| Retainer Lock Type | 7° (Matches OEM and BC locks) |
| Quantity per Kit | 16 Springs, 16 Titanium Retainers (Full V8 Set) |
Installation Considerations and Valve Spring Geometry
While the BC0270 kit is designed for direct installation, professional measurement is non-negotiable for a performance build. Always verify installed height—the distance from the spring seat to the bottom of the retainer with the valve closed. The target is 1.800 inches. This height ensures the correct seat pressure is achieved. Use a micrometer and a valve spring height tool to measure. Shimming may be required to achieve the exact spec. Crucially, you must check for coil bind clearance: with the valve fully open (at max cam lift), the spring must not compress to its coil bind height of 1.100″. A minimum clearance of .060″ is recommended. This process, along with checking valve-to-piston clearance, is essential. For a deeper technical dive into valvetrain dynamics and the physics of valve float, refer to this authoritative resource on high-performance valve spring engineering.
Vehicle Fitment: Nissan VK56DE Applications
The BC0270 kit is compatible with all variants of the Nissan VK56DE engine. This includes both early and late model applications, though as with any performance upgrade, confirming specific year-model details is advised. Below is the comprehensive fitment list.
Nissan Models:
• Nissan Armada (2004-2015)
• Nissan Titan (2004-2015)
• Nissan Frontier (2008-2014, with VK56DE swap or PRO-4X trim in certain markets)
• Nissan Xterra (2008-2014, with VK56DE swap)
Infiniti Models:
• Infiniti QX56 (2004-2010)
• Infiniti M56 (2011-2013)
• Infiniti QX70 (2014-2017, 5.6L model – formerly FX56)
• Infiniti QX80 (2011-Present)
Note: This kit is essential for any VK56DE undergoing performance modifications, including but not limited to: aftermarket camshaft installations (Brian Crower BC0332, BC0333, etc.), turbocharging, supercharging, nitrous oxide application, or any build targeting a raised RPM limit beyond stock.
