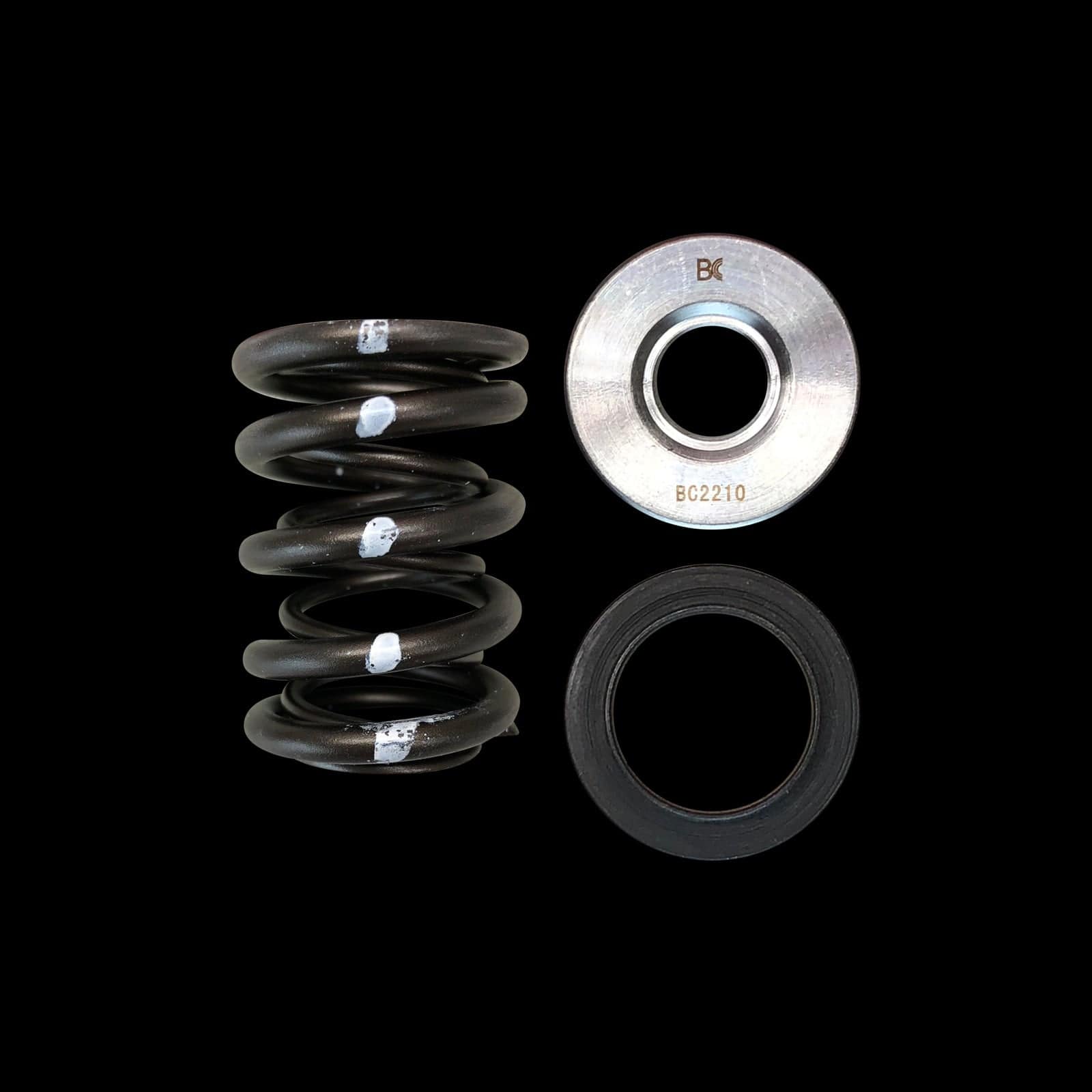

BC0210 – Brian Crower Nissan KA24DE Dual Valve Spring, Titanium Retainer & Seat Kit

When elevating the performance ceiling of the venerable Nissan KA24DE, the valve train is the critical juncture where power potential is either secured or surrendered. The stock valvetrain, designed for reliability and emissions compliance in a 2.4-liter truck engine, becomes a profound liability under the increased piston speeds and aggressive cam profiles of a performance build. The BC0210 Dual Spring, Titanium Retainer, and Seat Kit from Brian Crower is not an upgrade; it is a foundational re-engineering of the KA24DE’s breathing apparatus. Engineered for absolute stability at elevated RPM and under boost, this comprehensive kit replaces the single, modest factory spring with a meticulously calibrated dual-spring system, mated to featherweight titanium retainers and hardened machined seats. It is the definitive solution for eliminating valve float, ensuring precise valve event timing, and unlocking the high-RPM and forced-induction potential inherent in the KA24 platform.

Engineering the Anti-Float Solution: Dual-Spring Dynamics

The primary failure mode of a stock valvetrain at high RPM is valve float—the moment where spring force is overcome by inertial forces, causing the valve to depart from the cam lobe’s profile. The BC0210 kit attacks this problem with a coil-binding calculated dual-spring design. The inner and outer springs are wound with opposing harmonics, effectively damping each other’s resonant frequencies to prevent surge and maintain consistent pressure. This design allows for a higher seat pressure to keep the valve firmly planted on closing, coupled with a carefully increased open pressure to control the valve aggressively during peak lift. Unlike a single, heavily wound spring that can become a heat-treated and stressed unit, the dual-spring setup distributes the load, reducing stress on individual coils and dramatically improving fatigue life under sustained high-RPM operation.

Performance Advantages & System Benefits

Integrating the BC0210 kit transforms the KA24DE’s top-end from a liability into a robust asset. The benefits are systemic, affecting reliability, power output, and tunability.

• Eliminates Valve Float to 9,000+ RPM: The calibrated spring pressures ensure perfect valvetrain geometry fidelity, allowing you to safely exploit aggressive cam profiles and higher redlines.
• Enhanced Boost and Nitrous Tolerance: High cylinder pressure from forced induction or nitrous injection attempts to blow the intake valve open on the compression stroke. The increased seat pressure of the BC springs resists this, preventing power loss and potential piston-to-valve contact.
• Titanium Retainer Weight Savings: Brian Crower’s precision-machined titanium retainers are approximately 50% lighter than their steel counterparts. This drastic reduction in reciprocating mass reduces stress on the valve stem, guide, and spring itself, contributing to higher achievable RPM and reduced wear.
• Hardened Machined Seats for Perfect Alignment: The included hardened steel seats provide a perfectly square, durable mounting surface for the springs, ensuring uniform load distribution and preventing spring “walking” or seat deformation.
• Long-Term Durability and Consistency: Manufactured from premium chrome-silicon alloy wire and heat-treated for optimal performance, these springs resist heat soak and pressure decay over time, ensuring your engine’s power band remains consistent race after race.

Precision Vehicle Fitment

The BC0210 kit is engineered as a direct replacement for OEM components in the following applications. Correct fitment is critical for proper installed height and spring pressure.

• Nissan 240SX (S13 & S14 Chassis) – 1991-1998, equipped with the KA24DE engine.
• Nissan D21 Hardbody Pickup – 1990-1997, equipped with the KA24E (single overhead cam) and KA24DE engines. Note: Verification of cylinder head type (DOHC) is required for D21 application.
• Nissan Pathfinder (R50) – 1996-2000, equipped with the KA24DE engine.
• Infiniti G20 (P10) – 1991-1996, equipped with the KA24DE engine.

Core Application: All dual overhead cam (DOHC) KA24DE engines. Does not fit the single cam KA24E without corresponding head/valvetrain conversion.

Technical Specifications & Construction Details

Installation Notes & System Synergy

Installation of the BC0210 kit requires meticulous attention to installed spring height. This dimension dictates the exact seat pressure and must be verified for each cylinder using a spring height micrometer. Shimming with provided or aftermarket shims under the spring seat is a standard practice to achieve spec. This kit is designed to work with the stock camshafts for bulletproofing a boosted application, but it truly shines when paired with aggressive aftermarket cam profiles from manufacturers like Brian Crower or Tomei. The increased lift and ramp rates of performance cams demand the precise control this kit provides. Furthermore, for a comprehensive valvetrain overhaul, pairing the BC0210 with Brian Crower’s hardened chromoly rocker arms (BC0220) is recommended to handle the increased spring loads across the entire valve actuation system. For a deeper dive into valvetrain physics and spring dynamics, refer to this technical resource on valvetrain geometry and spring theory.

In summary, the Brian Crower BC0210 Kit is the unequivocal choice for anyone serious about building a high-performance, high-RPM, or forced-induction KA24DE. It replaces the factory’s weakest mechanical link with a component set engineered for motorsport-level abuse, ensuring your engine’s power potential is fully realized and reliably contained.
