BC0307 – Brian Crower Toyota 2JZGTE/GE Stroker Kit – 86mm Stroke

In the realm of forced-induction performance, few engine platforms command as much respect as Toyota’s legendary 2JZ. Renowned for its robust iron block and immense tuning potential, the 2JZ-GTE and its naturally aspirated GE counterpart represent the pinnacle of inline-six engineering. However, even legendary architectures have ceilings. The BC0307 Stroker Kit from Brian Crower isn’t merely an upgrade; it is a foundational re-engineering of the 2JZ’s bottom end, systematically dismantling the factory displacement and rotational mass limitations to forge a new standard for horsepower, torque, and durability. This kit transforms the venerable 3.0-liter into a purpose-built 3.2-liter (or larger) powerhouse, utilizing a scientifically calculated 86mm stroke combined with forged ProH625+ connecting rods and custom-forged pistons. For the builder seeking not just to modify, but to master the 2JZ’s potential, the BC0307 is the definitive starting point.

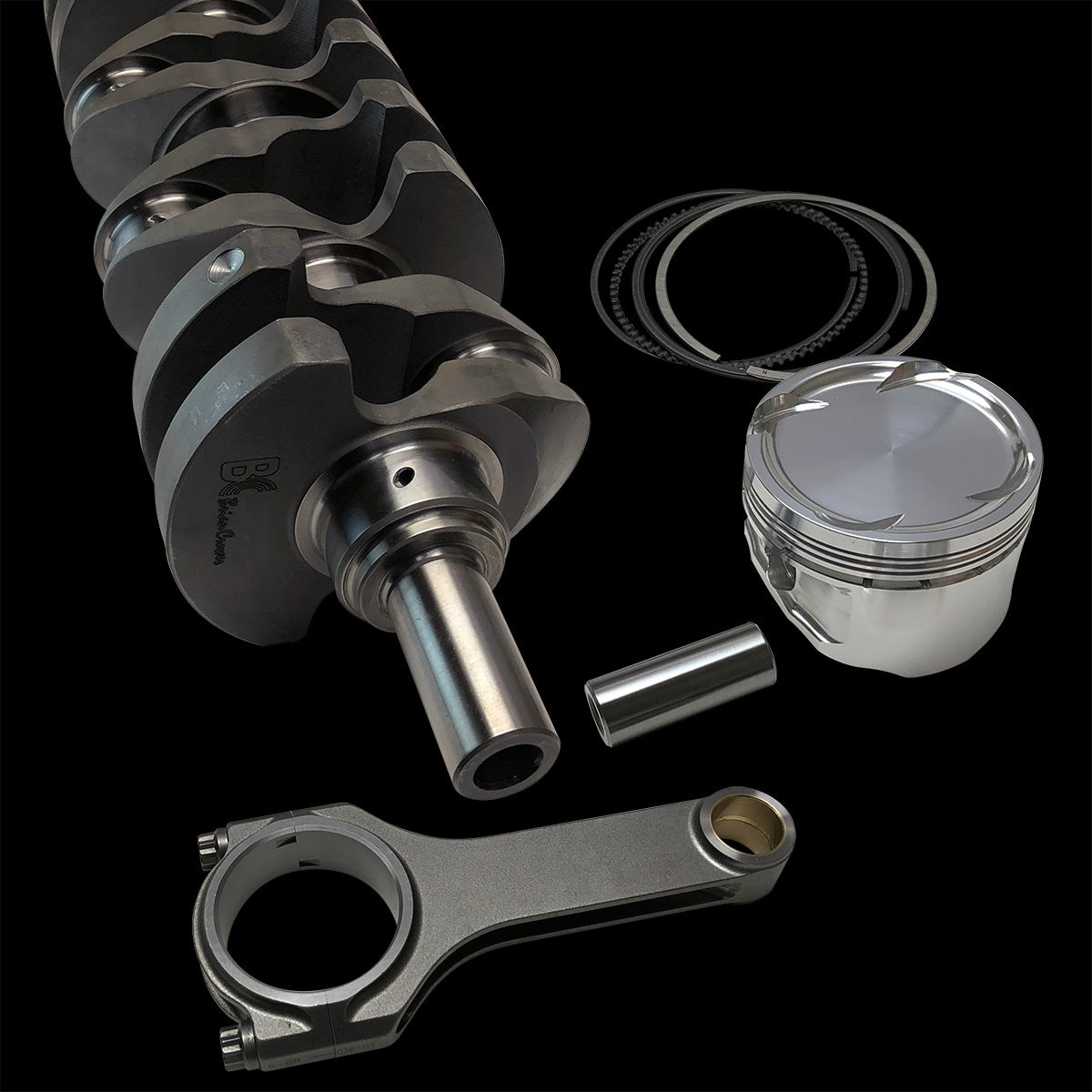

Precision Engineering: The Anatomy of a Dominant Stroker Kit

The BC0307 is engineered as a cohesive system, where every component is designed to work in perfect harmony under extreme cylinder pressures. This is not an assemblage of generic parts; it is a calibrated package built for one purpose: to reliably contain and convert explosive combustion forces into relentless rotational power.

The 86mm Stroker Crankshaft: The Heart of the Increase

At the core of the BC0307 is a 4340 chromoly steel forged crankshaft, precision-machined to increase the stroke from the factory 86mm to a potent 86mm. This specific increase is critical—it provides a substantial bump in displacement and the accompanying low-end torque, while maintaining an optimal rod-to-stroke ratio to minimize piston-side loading and frictional losses. Brian Crower’s machining process ensures exacting journal tolerances, micro-polished surfaces for superior oil film retention, and meticulously balanced counterweights. This results in a rotating assembly that is not only stronger than the OEM nodular iron crank but also smoother at high RPM, reducing harmonic vibrations that can lead to main bearing failure.

ProH625+ Connecting Rods: The Unbreakable Link

Connecting the increased stroke to the piston is the responsibility of the ProH625+ connecting rods. Fabricated from premium 4340 chromoly steel using a proprietary “Pro-H” beam design, these rods represent a significant advancement over standard H-beam units. The design strategically places material to handle immense tensile and compressive loads from both high boost and high RPM. The “625+” designation refers to the rod bolt’s tensile strength, exceeding 260,000 psi, ensuring the big end remains absolutely clamped under all conditions. With ARP 2000 cap screws as standard and precision honed big and small ends, these rods are the definitive link for any serious 2JZ build targeting four-digit horsepower figures.

Custom Forged Pistons: The Controlled Combustion Chamber

To complete the rotating assembly, Brian Crower supplies custom forged pistons engineered specifically for this 86mm stroker combination. Manufactured from high-grade 2618 aluminum alloy, these pistons prioritize ultimate strength and thermal stability for high-horsepower, high-boost applications. They feature a robust dome design compatible with common 2JZ cylinder head configurations, strategic valve reliefs, and a coated skirt to reduce friction and break-in wear. The included tool-steel wrist pins are precisely fitted to ensure zero play. Critically, these pistons are designed to work with the increased rod angle and stroke, maintaining proper squish and quench areas for efficient combustion and detonation resistance—a key consideration explored in depth in technical analyses of stroker motor dynamics, such as this primer on stroker engine mechanics.

Definitive Advantages of the BC0307 Stroker System

• Substantial Displacement Increase: Elevates engine capacity from 3.0L to approximately 3.2L (exact displacement varies with final bore size), generating significantly more torque and horsepower across the entire powerband, particularly in the low-to-mid range where it is most effective for street and track performance.
• Unmatched Bottom-End Durability: The fully forged rotating assembly—crank, rods, and pistons—creates a foundation capable of reliably supporting 1,200+ horsepower, far surpassing the limits of factory or even standard aftermarket internals.
• Optimized Rotational Dynamics: The carefully selected 86mm stroke maintains a favorable rod-to-stroke ratio, preserving engine efficiency and longevity by reducing piston-side thrust and associated cylinder wall wear.
• Enhanced Volumetric Efficiency: The increased displacement acts as a larger air pump, improving airflow at lower RPMs. This allows turbochargers to spool faster and reduces turbo lag, making power delivery more immediate and responsive.
• Complete System Compatibility: Engineered as a complete drop-in solution for the 2JZ block, requiring only standard machine work (bore/hone, balancing). The kit is designed to work seamlessly with OEM or aftermarket cylinder heads, valvetrains, and turbo systems.
• Proven Brian Crower Quality: Every component undergoes rigorous material testing and machining to exacting tolerances, ensuring consistent quality, perfect balance, and reliable performance under extreme conditions.

Vehicle Fitment & Application Notes

Primary Application: The BC0307 kit is designed specifically for the Toyota 2JZ-GTE and 2JZ-GE engine blocks. Proper installation requires professional engine machining and assembly.

Direct Fitment Includes:

• Toyota Supra MKIV (JZA80) – 2JZ-GTE (1993-2002)
• Toyota Aristo (JZS147, JZS161) – 2JZ-GTE
• Toyota Soarer (JZZ30) – 1JZ-GTE (Note: Requires 2JZ block swap)
• Toyota Chaser/Mark II/Cresta (JZX90, JZX100, JZX110) – 1JZ-GTE (Note: Requires 2JZ block swap)
• Various Toyota Sedans & Coupes equipped with the 2JZ-GE engine (e.g., GS300, IS300, SC300)

Critical Installation Notes:

• Machine Work Required: The engine block must be bored and honed to the final target bore size (e.g., 86.5mm, 87mm) with deck plates to ensure perfect cylinder geometry. The rotating assembly must be balanced by a professional machinist.
• Clearance Checking is Mandatory: Piston-to-valve clearance must be verified after installation, especially when used with aggressive camshafts. Rod-to-block and crank-to-block clearances should also be measured during assembly.
• Supporting Modifications: To fully realize the potential of this stroker kit, supporting modifications are essential: an upgraded fuel system, a high-flow turbocharger solution, an appropriate engine management system (EMS), and a robust cooling system.
• Head Gasket Selection: Final compressed volume and compression ratio (CR) are determined by piston dome volume, final deck height, and head gasket thickness. Careful calculation is required to achieve the target CR for your fuel and boost goals.

Technical Specifications: BC0307 Stroker Kit
