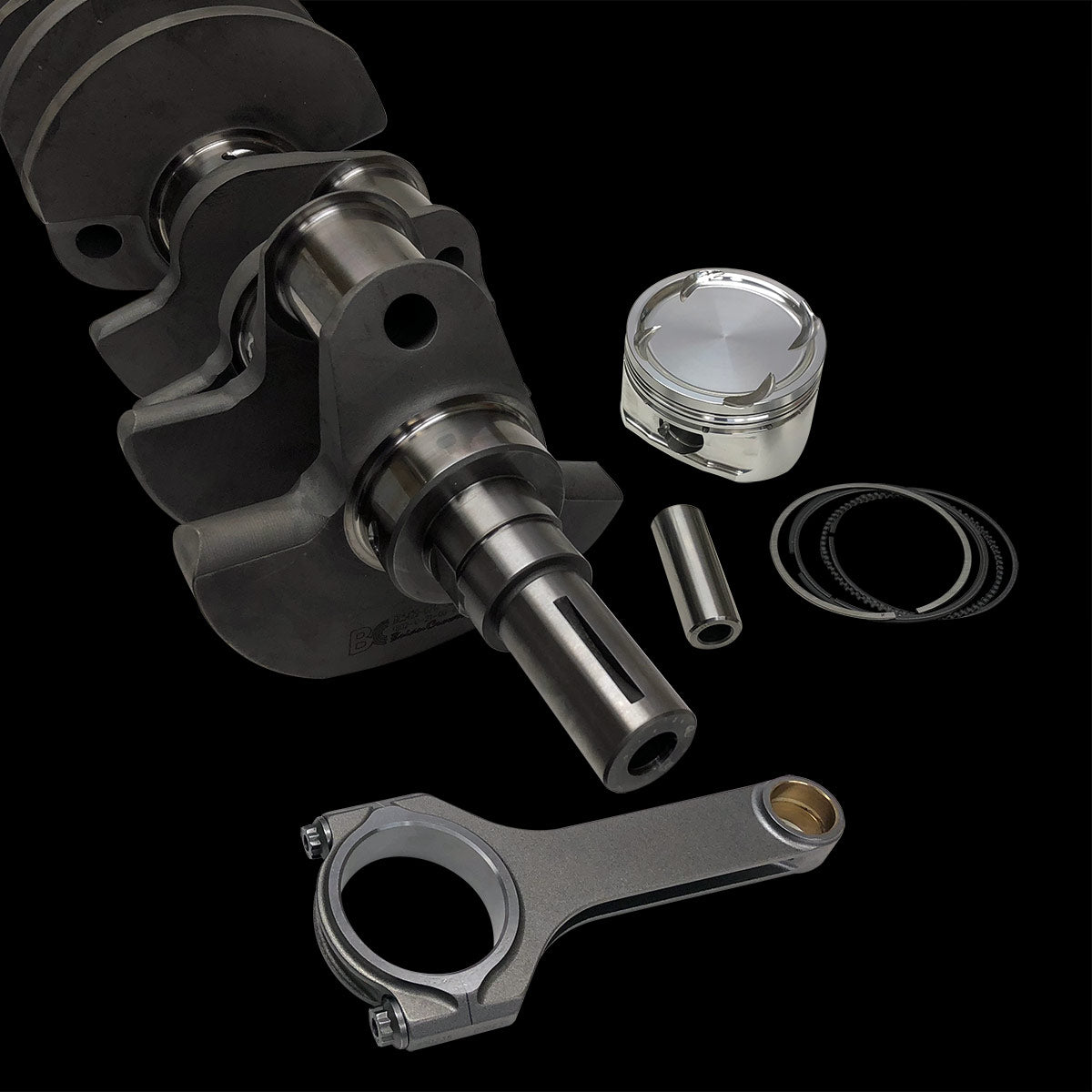

BC0426 – Ford Coyote Stroker Kit – 3.750″ Stroke Crank w/1.888″ Pin/ProHD Rods (5.875″ H Beam with 7/16 fasteners)

For the builder who recognizes that genuine power is engineered from the crankshaft out, the BC0426 Ford Coyote Stroker Kit represents the definitive foundation. This is not merely an assortment of parts; it is a cohesive system engineered by Brian Crower to transform the modern 5.0L Coyote platform into a displacement-on-demand monster. By increasing stroke from the factory 3.650″ to a potent 3.750″, this kit unlocks a significant displacement increase, targeting approximately 5.2 liters with common bore sizes. The BC0426 is engineered for those pursuing maximum naturally aspirated torque, relentless forced induction power, or the absolute pinnacle of racing performance. Every component, from the 4340 billet steel crankshaft to the ProHD H-beam connecting rods, is manufactured to a standard that treats the factory blueprint as a starting point for obsolescence. We will dissect the metallurgy, dimensions, and engineering intent behind each element, providing the technical depth required to justify its selection for your most demanding build.

Core Component Analysis: The Anatomy of a Stroker

The efficacy of any stroker kit lies in the symbiotic relationship between its components. The BC0426 is curated from the highest echelon of performance materials, each selected for a specific mechanical duty within the high-stress environment of a performance engine.

4340 Billet Steel Crankshaft: The Rotating Heart

The centerpiece of the BC0426 kit is the 3.750″ stroke crankshaft, CNC-machined from a single forging of AMS 4340 chromoly billet steel. This material is distinguished by its superior tensile strength and fatigue resistance compared to standard forged or cast units. The billet process allows for grain structure optimization and precise machining of critical areas. Key features include induction-hardened journals for exceptional wear resistance, rolled fillets to drastically reduce stress concentrations at journal transitions, and precision-balanced counterweights. The increased stroke is achieved through a strategic redesign of the rod journal placement, maintaining optimal crankpin overlap for structural integrity. This crank is designed to handle the immense rod angularity and bearing loads associated with a long-stroke application, especially under high cylinder pressure from boost or nitrous.

ProHD H-Beam Connecting Rods: The Critical Link

Connecting the increased-stroke crank to the piston is the responsibility of Brian Crower’s ProHD rods. Designated as 5.875″ in length (center-to-center) and featuring a 1.888″ piston pin diameter, these rods are constructed from premium 4340 chromoly steel and utilize the robust H-beam design. The H-beam profile offers an optimal balance of stiffness and weight, providing tremendous resistance to buckling and bending loads under combustion pressure. The use of 7/16-inch ARP2000 or CAP screw fasteners (kit dependent) is a critical upgrade. These larger, stronger bolts ensure the rod cap remains absolutely fixed, maintaining bearing crush and alignment at RPM levels far beyond factory limits. The machining of the big end and small end is held to tenths-of-a-thousandth tolerances for perfect bearing and wrist pin fit.

Engineered Benefits & Performance Outcomes

Integrating the BC0426 Stroker Kit is a transformational modification. The benefits cascade through the entire engine’s performance profile, affecting torque delivery, power potential, and structural security.

• Substantial Displacement Increase: The +0.100″ stroke, combined with a common overbore (e.g., from 92.2mm to 93.5mm), easily achieves a 5.2L (≈318 cubic inch) displacement. This directly translates to a significant increase in torque output across the entire RPM band.
• Elevated Torque Production: Increased displacement yields greater cylinder filling per combustion cycle. This manifests as a stronger, broader torque curve, improving vehicle acceleration, throttle response, and drivability, particularly in street-driven applications.
• Enhanced Power Ceiling for Forced Induction: More displacement means each cylinder ingests more air per cycle. Under boost, this equates to a greater mass of oxygen available for combustion, directly enabling higher horsepower potential at a given boost pressure compared to a 5.0L short-block.
• Race-Proven Component Strength: The 4340 billet crank and ProHD rod assembly are built to survive in professional racing environments. This provides an immense safety margin for high-RPM, high-horsepower street, strip, or road course builds.
• Optimized Rotating Assembly Geometry: The specific combination of 3.750″ stroke and 5.875″ rod length is engineered to maintain acceptable piston speed and rod angularity, balancing performance gains with mechanical reliability.

Vehicle Fitment & Application Guidelines

The BC0426 Stroker Kit is designed as a core component for a wide range of Ford Coyote engine builds. Correct piston selection is paramount and is dictated by your specific engine variant and goals.

Primary Engine Applications:

• Ford 5.0L Coyote (2011-2014 Mustang GT, F-150)
• Ford 5.0L Coyote Gen 2 (2015-2017 Mustang GT)
• Ford 5.0L Coyote Gen 3 (2018+ Mustang GT, 2018+ F-150)
• Ford Aluminator 5.2L crate engines (non-Predator/Voodoo)

Critical Builder Notes: This kit requires matching pistons with a correct compression height to accommodate the changed stroke and rod length. Piston pin diameter must be 1.888″ (48mm). Cylinder block clearancing, particularly for the increased rod swing, is frequently required and should be anticipated. Always check piston-to-valve clearance and piston-to-deck height during assembly. For a deep dive on the trade-offs and engineering behind stroker crankshafts, including rod ratio analysis, consult this authoritative resource on stroker crankshaft engineering principles.

Technical Specifications & Kit Contents

The following table details the precise specifications for the BC0426 Stroker Kit. These figures are essential for blueprinting your engine assembly and verifying component compatibility.
