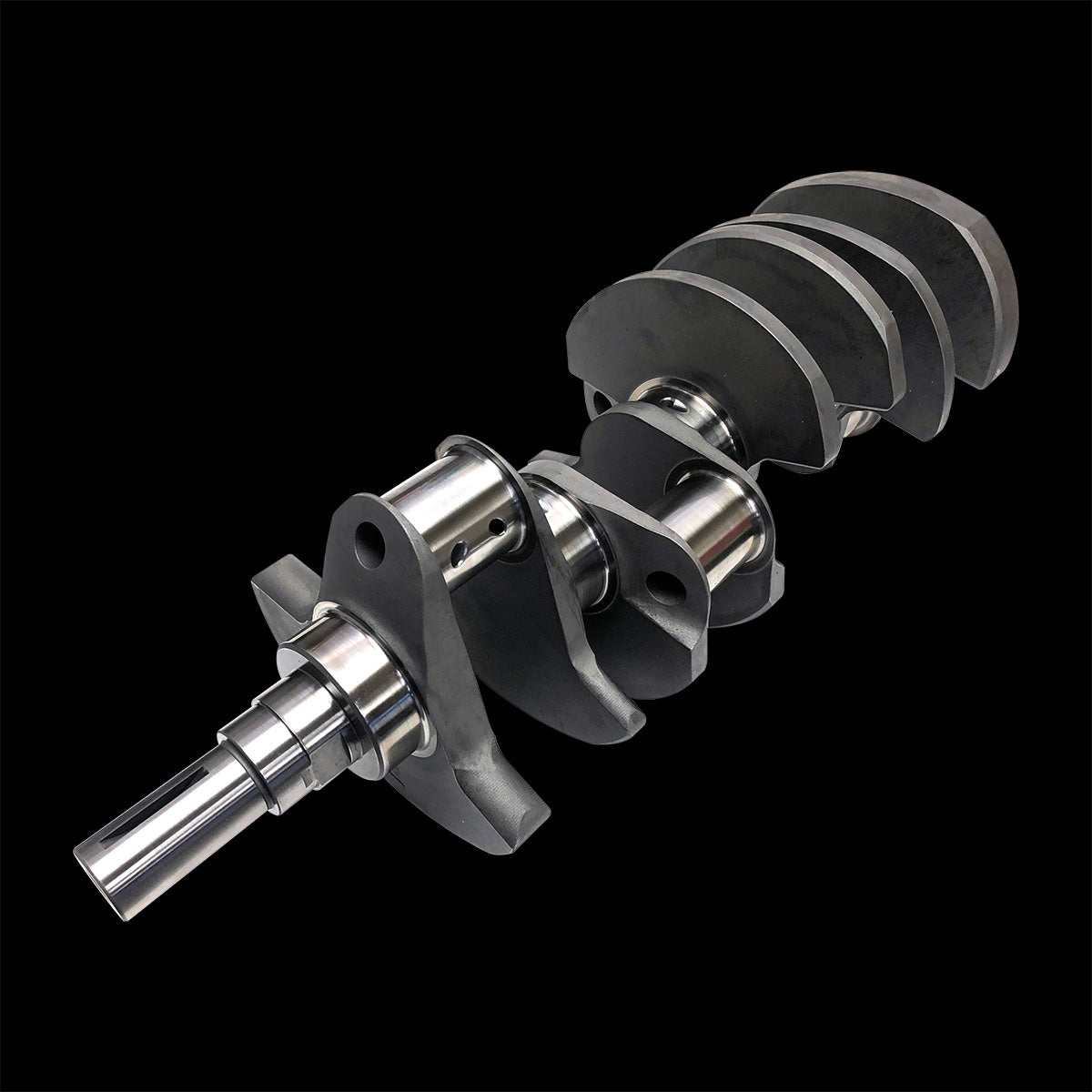

BC5428 – Ford Coyote, 4340 Billet 3.750″ Stroke w/1.888″ Crank Pin – Unbalanced

For the serious Ford Coyote builder seeking to extract maximum performance while maintaining absolute structural integrity, the choice of rotating assembly components is non-negotiable. The BC5428 from Brian Crower represents the pinnacle of this philosophy—a fully machined, 4340 chromoly billet steel crankshaft engineered not for compromise, but for domination. Featuring a strategic 3.750-inch stroke and utilizing a 1.888-inch crank pin diameter, this unbalanced crankshaft is a cornerstone for high-RPM, high-horsepower applications where blueprint-level precision and ultimate strength are the primary objectives. This is not a modified factory casting; it is a purpose-built racing component, designed from a solid billet to provide a foundation that can withstand the immense cylinder pressures and inertial forces generated in modern, aggressively tuned Coyote platforms.

Material Science & Billet Construction: The Foundation of Reliability

At the core of the BC5428’s performance envelope is its construction from premium 4340 chromoly nickel-steel billet. Unlike forged cranks which are shaped under immense pressure, or cast units which are poured, a billet crankshaft is CNC-machined from a single, homogeneous block of vacuum-degassed steel. This process allows for grain structure that is consistent and uninterrupted across the entire part, eliminating potential weak points inherent in other manufacturing methods. The 4340 alloy provides an exceptional balance of tensile strength, fatigue resistance, and ductility. Brian Crower then subjects the finished crankshaft to a rigorous heat-treating and nitriding process. This creates an extremely hard, wear-resistant surface on the journals while maintaining a tough, shock-absorbing core. The result is a component that resists flex, micro-fracturing, and journal wear, even under prolonged exposure to the harmonics and loads of a high-output, forced-induction Coyote engine. For a deeper understanding of billet vs. forged manufacturing, reputable technical resources such as Engine Labs provide a detailed analysis.

Precision Stroke & Journal Geometry for Optimal Performance

The 3.750-inch stroke of the BC5428 is a critical performance parameter. This stroke length, when paired with the appropriate bore size, is engineered to optimize the Coyote’s volumetric efficiency and power band, often targeting a displacement near 5.2 liters. The increased stroke improves torque production without resorting to excessive piston speed, a key consideration for engine longevity. More importantly, the 1.888-inch crank pin (rod journal) diameter is a significant upgrade. This larger, stronger journal provides a greater bearing surface area, drastically improving oil film stability and load distribution. It allows for the use of high-performance connecting rods with larger bearing inserts, which are essential for managing the increased rod angularity and side-loading inherent in a stroker configuration. Every journal—main and rod—is finish-ground to a micro-polish, achieving tolerances measured in ten-thousandths of an inch to ensure perfect oil clearance and minimal parasitic drag.

Key Performance Benefits of the BC5428 Crankshaft

• Unmatched Tensile Strength: 4340 billet construction provides superior resistance to flex and torsional distortion compared to OEM forgings or aftermarket cast units.
• Enhanced Bearing Durability: The larger 1.888″ crank pin and nitrided journals dramatically improve bearing life and oil film integrity under extreme loads.
• Blueprint-Level Precision: CNC machining ensures exacting stroke, journal dimensions, and counterweight placement for perfect balance and reduced harmonic vibration.
• Optimized for High-RPM & Boost: The rigid design and premium material are specifically intended for applications involving turbocharging, supercharging, or sustained high engine speeds.
• Foundation for Maximum Power: Provides the necessary structural margin for builders targeting four-digit horsepower figures, where a stock-based crank would be a liability.
• Unbalanced Configuration: Supplied without any balance pads, allowing a professional engine builder to internally balance the entire rotating assembly to the exact specifications of the pistons and rods being used for optimal smoothness.

Vehicle Fitment & Builder Specification

The Brian Crower BC5428 crankshaft is engineered as a direct-fit replacement for the Gen 1, Gen 2, and Gen 3 Ford Coyote 5.0L V8 engine platforms. Its application is focused on dedicated performance and racing builds. Critical Note: This crankshaft is supplied UNBALANCED. It is intended for professional engine builders who will internally balance the complete rotating assembly (crank, pistons, pins, rods) as a matched set. This allows for perfect balance tailored to the specific components, which is superior to externally balanced or neutrally balanced factory-style setups.

Primary Fitment:

• 2011-2023 Ford Mustang GT (5.0L Coyote)
• 2011-2014 Ford F-150 (5.0L Coyote)
• 2015-2020 Ford F-150 (5.0L Coyote Gen 2)
• Foxbody, SN95, and New Edge Mustang Coyote Swap applications (with appropriate engine swap kits)
• Road Racing, Drag Racing, and High-Performance Street Coyote builds

Builder Requirements: Installation requires expert machining and assembly. Key steps include verifying main journal clearances, selecting and fitting appropriate main and rod bearings (for 1.888″ pins), and performing a full internal dynamic balance of the entire rotating assembly. Compatibility with your chosen piston and rod combination must be confirmed prior to purchase.

Technical Specifications

Installation & Final Engineering Notes

The BC5428 crankshaft is the definitive choice for builders who refuse to accept a rotating assembly as a potential failure point. Its value is not merely in the metal, but in the engineering margin it provides. When paired with quality Brian Crower H-beam or I-beam connecting rods and forged pistons, this crankshaft transforms the Coyote into an ultra-resilient powerplant capable of supporting boost levels and RPM limits far beyond factory design. The unbalanced delivery is a feature, not an omission, granting the meticulous builder total control over the final balance job. This component is engineered for those who measure success not just in horsepower, but in reliability under duress. For your ultimate stroker Coyote build, specify the BC5428—where billet integrity meets performance calculus.
