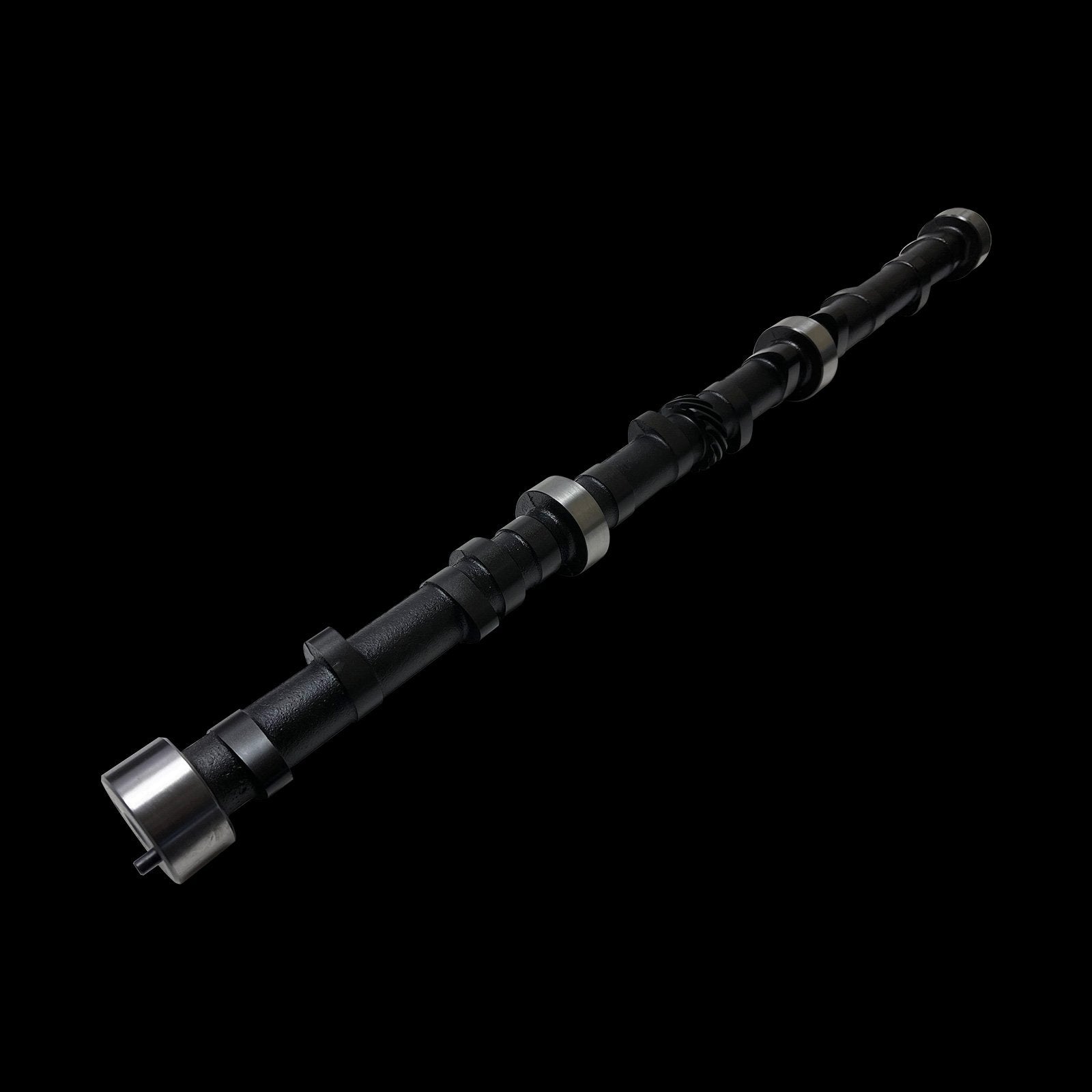

For the builder who views torque as the ultimate currency and engine bay aesthetics as secondary to unshakable reliability, the Brian Crower BC0482 Stage 3 camshaft represents the definitive mechanical upgrade for the legendary AMC 4.0L and 4.2L inline-six engines. This isn’t a mild “street” cam; it’s a purpose-built, aggressive-lobe profile engineered to fundamentally transform the power delivery of your Jeep, Cherokee, Wagoneer, or Comanche. By significantly increasing valve lift and duration, the BC0482 forces the engine to breathe with a deep, volumetric efficiency previously unattainable with factory or mild aftermarket grinds. The result is a dramatic expansion of the torque curve, moving immense power lower into the RPM band where it’s most usable for rock crawling, towing, and off-idle response. Crafted from premium-grade billet steel and finished with a proprietary hardening process, this camshaft is a component that commands respect and requires a complementary build strategy—demanding upgraded valve springs, precise tuning, and an understanding that peak performance is a symphony of correctly matched parts. This is the camshaft you install when compromise is no longer in your vocabulary and your AMC inline-six is destined for legendary status.
Engineering Philosophy: The Stage 3 “Rock Crawler” Grind
The “Stage 3” designation from Brian Crower is not merely marketing; it’s a precise descriptor of aggressive valve timing parameters designed for maximum low-end and mid-range torque. Where factory and Stage 1 cams prioritize seamless daily drivability, and Stage 2 offers a balanced bump, the BC0482’s profile is unapologetically performance-oriented. The core of its design lies in increased duration—the length of time the valves stay open. This allows a greater mass of air-fuel mixture to enter the cylinder and a more complete expulsion of exhaust gases. More critically, the BC0482 features elevated valve lift, physically opening the valves farther to increase the cross-sectional area for airflow. This combination, when paired with the long-stroke design of the AMC 4.0L/4.2L, creates a potent effect: the engine acts as a larger displacement motor at lower RPMs. The power surge is immediate and relentless, providing the tractable, tractor-like pull essential for navigating technical terrain or moving heavy loads without constantly wringing the engine to its redline. For a deeper dive into how duration and lift affect performance, consider this resource on camshaft basics from Brian Crower’s technical library.
Technical Specifications & Build Requirements
Installing the BC0482 is a commitment to a holistic engine build. Its aggressive specifications necessitate supporting modifications to ensure valvetrain stability, prevent coil bind, and realize the cam’s full potential. Below are the critical specifications and the mandatory companion parts.
| Specification | Value | Notes |
|---|---|---|
| Grind Number | BC0482 | Brian Crower Stage 3 Profile |
| Intake Duration | 268° | Advertised Duration |
| Exhaust Duration | 272° | Advertised Duration |
| Intake Lift | 0.445″ | With 1.70:1 Rocker Ratio |
| Exhaust Lift | 0.456″ | With 1.70:1 Rocker Ratio |
| Lobe Separation Angle (LSA) | 112° | Optimizes mid-range torque & vacuum |
| Required Valve Springs | BC0250 or Equivalent | Dual Spring Kit Mandatory |
| Recommended Rocker Arms | Stock or 1.70:1 Roller Rockers | Upgraded pushrods advised |
Mandatory Supporting Modifications
To safely and effectively run the BC0482, you must pair it with Brian Crower’s BC0250 dual valve spring kit or springs of equivalent pressure and installed height specification. The factory single springs will not control the valve at this lift and RPM, leading to valve float, power loss, and catastrophic engine damage. Additionally, verifying and potentially upgrading to hardened pushrods is critical, as the increased spring pressure exerts greater force on the valvetrain. For fuel-injected applications (HO 4.0L), a programmable engine management system or tuned performance chip is highly recommended to correct air-fuel ratios and ignition timing, capitalizing on the improved airflow and preventing detonation.
Performance Benefits & Operational Characteristics
The transformation imparted by the BC0482 is felt more than heard—though the distinctive, lumpy idle is a signature trait. The primary gains are in areas that matter most for utility and off-road performance.
- Substantial Low-RPM Torque Increase: Experience a profound strengthening of the torque curve from as low as 1,500 RPM. This translates to immediate throttle response, reduced need for gear changes on steep inclines, and effortless crawling capability.
- Expanded & Flattened Torque Plateau: Power delivery becomes broad and usable. Instead of a narrow power peak, you gain a wide, flat band of torque that makes the vehicle incredibly predictable and easy to control in technical situations.
- Enhanced Engine Braking & Vacuum: The aggressive overlap improves exhaust scavenging, which provides stronger engine braking on descents—a crucial safety feature off-road. Despite its size, the 112° LSA helps maintain sufficient manifold vacuum for power brakes.
- Improved Volumetric Efficiency: The engine breathes like a larger unit. This not only increases power but can also reduce pumping losses and operating temperatures under load, contributing to long-term durability.
- Authoritative Audible Presence: The choppy, aggressive idle unmistakably signals a serious performance build, setting your Jeep apart from stock-appearing rigs.
Vehicle Fitment & Application Notes
The BC0482 camshaft is a direct-fit replacement for a wide range of Jeep vehicles powered by the AMC/Jeep 4.2L and 4.0L inline-six engines. Correct identification of your engine (carbureted vs. fuel-injected, Renix vs. HO) is essential for planning supporting fuel and ignition tuning.
Direct Fitment Includes:
- Jeep Cherokee (XJ): 1987-1990 4.0L (Renix Fuel Injection), 1991-2001 4.0L (High Output)
- Jeep Wrangler (YJ, TJ): 1991-1995 YJ 4.0L (High Output), 1997-2006 TJ 4.0L (High Output)
- Jeep Grand Cherokee (ZJ, WJ): 1993-1998 ZJ 4.0L, 1999-2004 WJ 4.0L
- Jeep Wagoneer (XJ, SJ), Comanche (MJ), & Full-Size Trucks: 1971-1990 4.2L (258ci) Carbureted, 1991 4.0L (where equipped)
- Note on 4.2L Engines: This camshaft is an excellent performance upgrade for the carbureted 4.2L, but will require appropriate carburetor re-jetting and possibly an intake/exhaust upgrade to realize full benefits.
Installation Imperatives & Final Verdict
Installation of the BC0482 requires standard camshaft replacement procedures: locking the engine at TDC, removing the timing gear, and carefully extracting the old cam. Liberal use of a high-quality cam break-in lubricant is non-negotiable. The engine must be started immediately after assembly and run at varying RPMs (1500-2500) for 20-30 minutes to properly seat the new cam lobes with lifters. Failure to follow a proper break-in procedure will result in premature camshaft wear.
The Brian Crower BC0482 Stage 3 Camshaft is not for the faint of heart or the stock daily driver. It is a specialist’s tool for the dedicated enthusiast who demands maximum mechanical advantage from their AMC inline-six. When paired with the required valvetrain upgrades, a tuned fuel/ignition system, and complementary bolt-ons (header, intake, exhaust), it unleashes the true, torque-monster potential of this iconic engine architecture. For the rock crawler, overlander, or torque aficionado, the BC0482 is the definitive camshaft upgrade, transforming a legendary engine into a modern masterpiece of low-RPM force.
