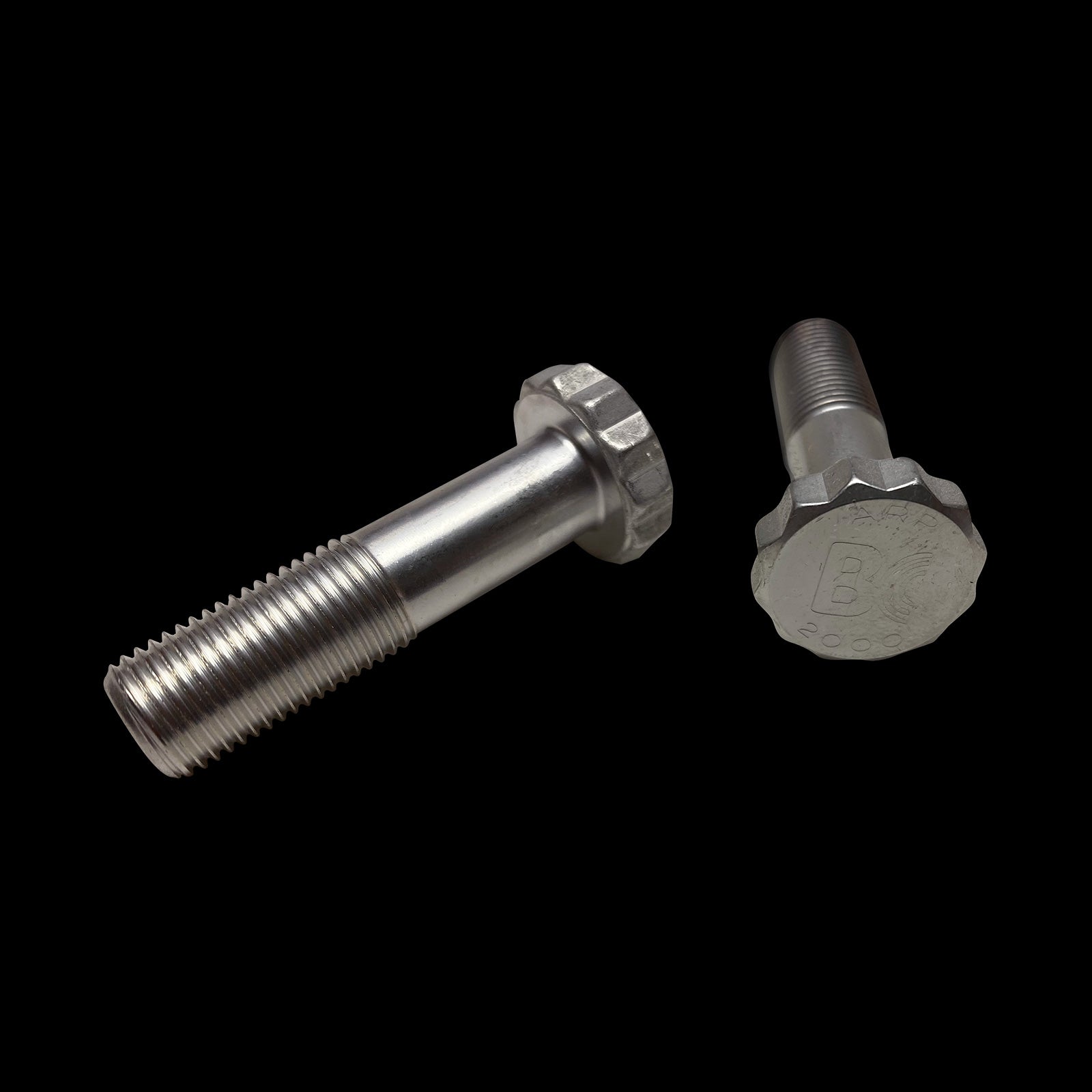

In the high-stakes arena of Subaru EJ series performance engine building, the integrity of every component is non-negotiable. The cam gear bolt, a seemingly simple fastener, is in fact a linchpin of valvetrain stability and timing precision. The BC8898 Cam Gear Bolt from Brian Crower represents the definitive upgrade for non-AVCS applications, engineered to eliminate a critical point of failure. Fabricated from premium ARP2000® alloy steel and processed to exacting aerospace standards, this bolt is not a mere replacement—it is a foundational component for any engine subjected to increased spring pressures, aggressive cam profiles, or sustained high-RPM operation. It is the chosen hardware for builders who understand that true reliability is engineered from the fastener up.
Technical Specifications & ARP2000® Material Science
The BC8898’s superiority is rooted in its core material: ARP2000® alloy steel. This is not standard hardware store fare. ARP2000® is a proprietary, custom-melted chrome-molybdenum alloy subjected to a specialized thermal cycling process. The result is a fastener with an ultimate tensile strength of 220,000 PSI and a yield strength of approximately 200,000 PSI, significantly exceeding the capabilities of OEM-grade bolts. This enhanced strength provides a greater clamp load, ensuring the cam gear remains solidly indexed to the camshaft, preventing any micro-movement that can lead to timing drift and eventual failure.
Beyond raw strength, the material’s fatigue resistance is paramount. The valvetrain generates constant, high-frequency harmonic stresses. Standard bolts can succumb to fatigue cracking over time, a catastrophic failure mode that can destroy an engine. The metallurgical structure of ARP2000® is engineered to withstand these cyclic loads indefinitely, offering a safety margin that stock components simply cannot match. Furthermore, the bolts feature a proprietary Black Oxide finish. This is not merely cosmetic; it provides a measure of corrosion resistance and, crucially, a consistent, calibrated surface that contributes to accurate torque readings during installation, as the finish is factored into the fastener’s friction coefficient.
Precision Engineering for Critical Fitment
Brian Crower manufactures the BC8898 to exacting dimensional tolerances, ensuring a perfect, seamless fit within the stock cam gear and camshaft. The bolt features a precise 10mm x 1.25 pitch thread form that mates flawlessly with the non-AVCS EJ camshaft. The shoulder diameter and length are meticulously controlled to apply clamping force exactly where it is needed without bottoming out or leaving slack. This precision eliminates the need for makeshift solutions like washers and guarantees that the load path is direct and efficient, translating applied torque directly into clamping force on the gear.
Vehicle Fitment: Comprehensive Application Guide
The BC8898 is specifically designed for Subaru EJ series engines equipped with non-AVCS (Active Valve Control System) cylinder heads. Correct application is critical, as AVCS-equipped camshafts use a different bolt design and length. This bolt is a direct, one-for-one replacement for the OE bolt in the following applications:
- Subaru Impreza WRX (USDM): 2002-2005 models with EJ205 engines.
- Subaru Impreza WRX (International Markets): Various GC/GF/GM chassis models utilizing non-AVCS EJ20 engines.
- Subaru Legacy/Outback: Select models through the early 2000s with non-AVCS EJ25x engines (e.g., Phase I & some Phase II SOHC).
- Subaru Forester (SF): Models equipped with the EJ205 or other non-AVCS turbo engines.
- Performance & Race Engines: All aftermarket non-AVCS EJ series engine builds, including stroker configurations and hybrid builds using non-AVCS heads on later blocks.
Note: Always verify your specific camshaft and cylinder head type. AVCS camshafts will have oil passages in the end of the cam and require a different bolt (typically a BC8899 or equivalent). Installing a non-AVCS bolt in an AVCS application will block oil flow and cause immediate, severe damage.
Installation Procedure & Critical Torque Specification
Proper installation is as vital as the component itself. Begin by ensuring the camshaft and gear mating surfaces are clean, dry, and free of old threadlocker residue. Chase the camshaft threads with an appropriate tap if there is any doubt about their condition. Apply a small, uniform drop of a high-quality, medium-strength threadlocker (such as Loctite 242) to the bolt threads. Do not apply lubricant or oil to the threads or under the bolt head, as this will drastically alter the achieved clamp load for a given torque value.
The most critical step is adhering to the specified torque. The Brian Crower BC8898 bolt must be torqued to 55 ft-lbs (74.5 Nm). Use a calibrated, quality torque wrench and tighten in a smooth, steady motion to achieve an accurate and consistent preload. Overtorquing can overstress the bolt or the camshaft threads, while undertorquing risks gear slippage. Once torqued, it is good practice to mark the bolt head and gear with a paint pen for a visual verification that it has not moved during subsequent run-in or operation. For a deeper dive into the science behind fastener torque and clamp load, refer to this authoritative resource on ARP’s technical principles.
Table: BC8898 Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | BC8898 |
| Material | ARP2000® Alloy Steel |
| Thread Size | M10 x 1.25 |
| Ultimate Tensile Strength | 220,000 PSI |
| Finish | Black Oxide |
| Torque Specification | 55 ft-lbs / 74.5 Nm |
| Application | Subaru EJ Non-AVCS Cam Gear |
| Quantity per Kit | 1 (Sold Individually) |
Performance Benefits & Conclusion
The investment in BC8898 bolts delivers unequivocal returns in engine durability and operational security. The core benefits are definitive:
- Eliminates Cam Gear Slippage: The high clamp load from the ARP2000® bolt prevents timing drift, ensuring consistent valve events and engine performance.
- Superior Fatigue Life: The advanced metallurgy provides unparalleled resistance to the cyclic stresses of high-RPM operation, making it a permanent solution.
- Essential for Performance Builds: A mandatory upgrade when installing higher-rate valve springs or aggressive camshaft profiles that increase torsional load on the gear and bolt.
- Precision Fitment: Engineered to OEM dimensions for a hassle-free installation with no modification required.
- Proven Reliability: Manufactured under the stringent quality control of Brian Crower and utilizing ARP’s industry-leading material science, it is the benchmark for valvetrain fastener reliability.
In summary, the Brian Crower BC8898 Cam Gear Bolt is a critical component for any serious Subaru EJ non-AVCS build or maintenance regimen. It addresses a known weakness with a solution grounded in aerospace-grade material science and precision manufacturing. For builders who prioritize foundational strength, this bolt is not an option—it is an essential piece of engineering that safeguards your investment and ensures your engine’s valvetrain operates with absolute precision and unshakable reliability.
