BC0650 – Subaru FA20/Toyota 4UGSE Single Spring/Titanium Retainer Kit

In the relentless pursuit of horsepower and engine longevity, the valvetrain stands as the critical frontier. It is the precise, metronomic system that dictates an engine’s ability to breathe at elevated rpm, directly governing volumetric efficiency and, by extension, power output. For the technologically advanced Subaru FA20 DIT and Toyota 4UGSE (2.0L FA20) powerplants, the factory valvetrain represents a calculated compromise between daily driveability and performance potential. The BC0650 Single Spring and Titanium Retainer Kit from Brian Crower is engineered to decisively eliminate that compromise. This is not a mere upgrade; it is a fundamental re-engineering of the valve closure event, designed for forced-induction applications, aggressive camshaft profiles, and sustained high-rpm operation. By replacing the OEM dual-spring setup with a meticulously calibrated single spring and featherweight titanium retainers, the BC0650 kit ensures absolute valve control, reduces parasitic loss, and unlocks the true high-rpm capability of these iconic engines, setting a new benchmark for valvetrain stability and durability.

Valvetrain Dynamics and the Science of Valve Float

To understand the necessity of the BC0650 kit, one must first comprehend the phenomenon of valve float and its catastrophic consequences. As engine speed increases, the valvetrain components undergo extreme acceleration and deceleration forces. The spring’s primary function is to overcome the inertia of the valve, retainer, and keepers, ensuring the valve follows the cam lobe profile exactly and seats positively. Factory springs are designed with a significant safety margin for stock redlines but lack the necessary pressure and rate to control heavier aftermarket valves or more aggressive cam lift profiles. When spring force is insufficient, the valve fails to follow the closing ramp of the cam—this is valve float. The valve hangs open, can collide with the piston (resulting in catastrophic interference), loses seal with the seat (causing power loss and combustion gas leakage), and induces severe harmonics that can destroy springs, break retainers, and wipe cam lobes. The BC0650 kit addresses this through physics: increased seat pressure for positive closure, a higher spring rate to manage increased lift and rpm, and a meticulously designed single-spring architecture that eliminates the inter-coil harmonics and heat retention issues inherent in dual-spring designs.

Technical Specifications & Component Breakdown

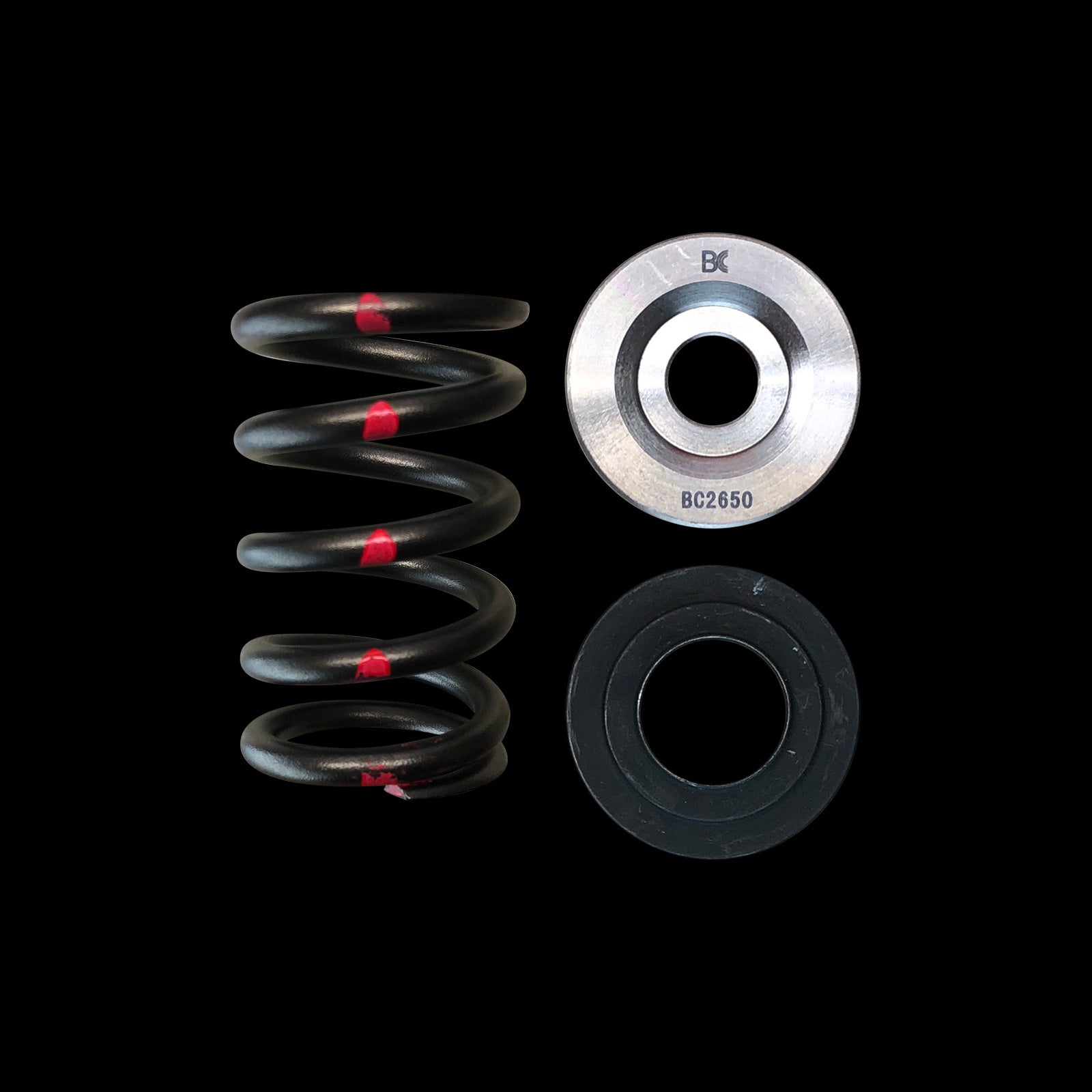

Every component within the BC0650 kit is the result of advanced metallurgy and precision manufacturing. This kit is a complete solution, supplied with 16 springs, 16 titanium retainers, and 16 Viton® valve stem seals, ensuring a matched and balanced valvetrain assembly.

Performance Benefits & Engineering Advantages

The synergistic effect of these high-spec components translates into direct, measurable performance gains and enhanced engine resilience.

• Elimination of Valve Float to 8,500+ RPM: The core mandate. The increased pressure and optimized rate of the single spring provide absolute valve control well beyond the factory fuel cut, enabling safe powerband extension for turbo applications.
• Reduced Valvetrain Mass and Parasitic Loss: Titanium retainers significantly lower the reciprocating mass. This reduces the inertia the spring must overcome, lessens stress on the cam lobes and followers, and frees horsepower otherwise wasted accelerating heavier components.
• Enhanced Compatibility with Aggressive Camshafts: This kit is the mandatory supporting modification for installing aftermarket performance camshafts in the FA20/4UGSE. It provides the necessary pressure to handle increased lift and more radical lobe profiles without coil bind.
• Superior Heat Dissipation and Durability: The single-spring design allows for better airflow and heat dissipation around the spring compared to a nested dual-spring setup. Chrome silicon material retains its temper and pressure characteristics at extreme under-hood temperatures. For an in-depth look at valvetrain material science, refer to this technical resource on valve spring selection and technology.
• Prevents “Spring Surge” and Harmonic Failure: The ovate-wire design and precise engineering minimize harmful harmonic vibrations (surge) within the spring at high rpm, a common failure point in overtaxed OEM-style springs.

Vehicle Fitment & Application Specifics

The BC0650 kit is application-specific, engineered to precise dimensions for a direct, drop-in installation on the following platforms. It is crucial to note that this kit is designed for use with the stock diameter valve stems.

Primary Application:

• Subaru FA20 DIT (2.0L Direct Injection Turbo) – Found in the 2015+ Subaru WRX (non-STI).
• Toyota 4UGSE (2.0L FA20) – Found in the 2012+ Toyota 86, Scion FR-S, and Subaru BRZ (when paired with forced induction and/or high-rpm camshaft upgrades).

Critical Installation Note: While the components are a direct fit, installation requires complete disassembly of the cylinder heads. Proper spring height and installed pressure must be verified with a spring height micrometer and pressure tester. We strongly recommend this procedure be performed by a professional engine builder or machine shop with experience in performance valvetrain assembly. Clearance for the retainer to valve guide seal and retainer to spring perch must also be confirmed, especially when used with aftermarket valves.

Why the BC0650 Kit Surpasses OEM and Common Alternatives

The OEM dual-spring setup is adequate for a stock engine but becomes the weak link in any serious performance build. The BC0650 kit offers a more robust and performance-focused solution than simply installing “heavy-duty” OE-style springs. The shift to a single, high-quality spring eliminates the potential for heat buildup between coils in a dual setup and provides a more linear and predictable pressure curve. Compared to other aftermarket single-spring kits, Brian Crower’s use of premium chrome silicon, proprietary coatings, and genuine aerospace titanium for retainers ensures best-in-class material integrity. The inclusion of high-performance Viton® seals completes the system, addressing oil control—a frequent oversight in partial upgrade kits. This holistic approach guarantees component harmony, ensuring the springs, retainers, and seals work in concert under extreme conditions, providing a reliability ceiling far above that of the factory valvetrain or piecemeal upgrades.

For the builder seeking to extract maximum performance from the Subaru FA20 or Toyota 4UGSE platform—whether for a high-boost street build, a road racing engine, or a purpose-built drag application—the Brian Crower BC0650 Single Spring and Titanium Retainer Kit is an non-negotiable foundation. It transforms the valvetrain from a liability into an asset, providing the mechanical assurance needed to explore the upper limits of rpm and boost with confidence. This investment directly safeguards the engine’s most vulnerable system during high-stress operation, enabling sustainable power gains and ensuring the mechanical integrity of the entire rotating assembly.
