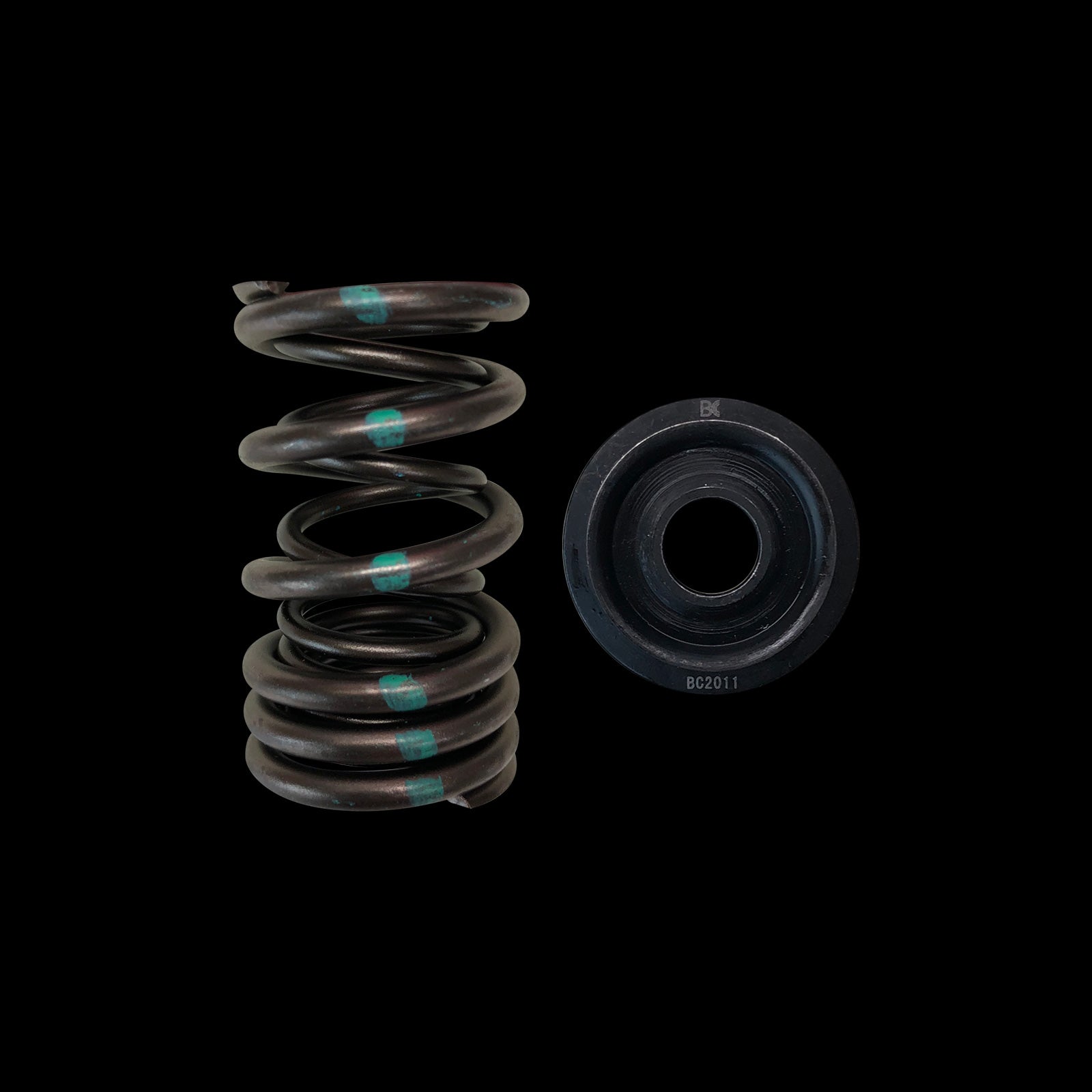

In the stratified realm of high-RPM, high-output Honda F-Series and K-Series engines, the valve train is the final frontier of reliability and power. The stock valve spring and retainer assembly, while exemplary for OEM applications, represents a definitive ceiling—a mechanical fuse designed to blow before catastrophic engine failure. For the builder targeting sustained operation beyond 8,000 RPM, forced induction, or aggressive cam profiles, this ceiling must be demolished. The Brian Crower BC0040SX Spring & Steel Retainer Kit is not an upgrade; it is a fundamental re-engineering of the valve train’s most critical stress point. Engineered in collaboration with PAC Racing Springs, this kit transforms the valve closure event from a potential failure mode into a pillar of absolute valvetrain stability, enabling your K20A, K20Z, F20C, or F22C to achieve its true mechanical potential with uncompromising precision.
Engineering Philosophy: The Physics of Valve Control
Valve float is not merely a limit; it is a complex dynamic instability. As engine speed increases, the inertia of the valvetrain components (valve, retainer, locks) begins to overcome the spring’s closing force. The result is the valve failing to follow the cam lobe’s base circle, leading to loss of control, catastrophic collision with the piston, and total engine failure. The BC0040SX kit addresses this through a holistic system approach. It replaces the OEM single spring with a PAC Racing dual spring configuration, featuring a primary inner spring and a secondary outer spring. This design provides a significantly higher initial seat pressure and a vastly increased open pressure, creating a progressive and massive increase in control force throughout the lift curve. The kit’s 10.5mm steel retainers are not just stronger than stock; they are precision-machined to reduce mass while increasing tensile strength, directly countering the inertial forces that cause float. This synergy between spring force and component mass is what separates a collection of parts from a true performance system.
Technical Specifications & Component Analysis
Every component in the BC0040SX kit is specified to a toleranced standard far beyond OEM, with material science as the cornerstone.
| Component | Material & Specification | Performance Data |
|---|---|---|
| Outer Valve Spring | Chrome Silicon Alloy (PAC 1206X) | Seat Pressure: ~80 lbs. | Open Pressure: ~220 lbs. |
| Inner Valve Spring | Chrome Silicon Alloy (PAC 1215X) | Designed for harmonic damping and redundancy. |
| Spring Retainers | CNC-Machined 10.5mm 8630 Chromoly Steel | Heat-treated, shot-peened for ultimate fatigue resistance. |
| Spring Seats (Shims) | Precision-Ground Steel | For perfect spring alignment and installed height calibration. |
| Valve Locks | 10.5mm Heat-Treated Steel | Positive-lock design to match retainers. |
Critical Note on Pressure: The listed spring pressures are baseline figures. Final installed seat pressure is paramount and must be verified and shimmed to specification during assembly, as block and head machining affect installed height. This kit is designed to work with stock and most aftermarket valves, but checking valve stem tip height for proper lock engagement is non-negotiable.
Primary Performance Benefits
The integration of these components yields transformative benefits for the performance engine:
- Eliminates Valve Float to 10,000+ RPM: The dual-spring system provides the immense and predictable force required to control the valve at extreme engine speeds, far beyond the 8,200-8,600 RPM limit of OEM springs.
- Enables Aggressive Camshaft Profiles: High-lift, fast-ramp camshafts demand rapid valve acceleration and deceleration. The BC0040SX springs provide the control margin needed to utilize this lift and duration without bounce or harmonic resonance.
- Mandatory for Forced Induction & Nitrous: Boost and nitrous create extreme cylinder pressures that can violently attempt to blow the intake valve open (reversion). The high seat pressure acts as a mechanical clamp, preventing this and ensuring proper sealing under peak cylinder load.
- Dramatically Increases Valvetrain Longevity: Chrome silicon alloy springs are renowned for resistance to heat fatigue and stress relaxation. Combined with the robust retainers, this kit prevents the gradual loss of seat pressure that plagues lesser springs, maintaining its performance over countless cycles.
- Foundational Safety for High-Investment Builds: This kit is insurance. It protects your investment in forged internals, precision-machined heads, and turbocharger systems by ensuring the valvetrain is the strongest link, not the weakest.
Vehicle Fitment: Precision Application
The BC0040SX is engineered for specific Honda VTEC engines known for their high-RPM heritage and tuning potential. Correct fitment is critical.
Direct Application: This kit is designed as a direct, no-modification replacement for the valve springs, retainers, locks, and seats in the following applications:
- Honda K20A: 2001-2006 Integra Type R (DC5), 2004-2008 Civic Type R (EP3, FN2 – JDM variants).
- Honda K20Z: 2006-2011 Civic Si (FA5/K20Z3).
- Honda F20C: 2000-2009 S2000 (AP1).
- Honda F22C: 2004-2009 S2000 (AP2).
Compatibility Notes: While designed for stock diameter valves, this kit is fully compatible with aftermarket +1mm oversize valves from reputable manufacturers like Brian Crower, Supertech, and Ferrea. Always verify installed height and pressure. It is compatible with OEM and performance camshafts, but checking for coil bind clearance at maximum lift is an essential assembly step. For a deeper dive into valvetrain dynamics and setup, refer to this authoritative resource on high-performance valvetrain geometry.
Installation & Technical Calibration Insights
Installing the BC0040SX kit demands the methodology of a machinist, not a parts swapper. Professional assembly and measurement are strongly recommended.
1. Disassembly & Inspection: Fully disassemble the cylinder head. Clean all valve guide and seat areas meticulously. Inspect valve guides for wear and valves for stem scoring.
2. Critical Measurement – Installed Height: This is the distance from the spring seat (machined surface in the head) to the bottom of the retainer with the valve closed. Measure this for each valve location with the new springs and seats. The target is typically between 1.080″ – 1.100″, but the shop manual or cam manufacturer’s spec is law.
3. Shimming for Precision: Use the provided steel shims (seats) to adjust each spring’s installed height to the exact specification. Uniform height ensures uniform pressure across all cylinders.
4. Verification – Coil Bind Clearance: With the valve at maximum lift (using a cam or a dial indicator), ensure there is a minimum of 0.060″ clearance between the coils of the spring. Less clearance risks the springs becoming a solid column, destroying itself and the cam.
5. Final Assembly: Use proper valve spring compressor tools. Lubricate valve stem tips and locks. Ensure the 10.5mm locks are fully and evenly seated in the retainer groove. A meticulous, clean, and measured approach here is what separates a successful build from a costly failure.
The Definitive Upgrade for Defined Goals
The Brian Crower BC0040SX Spring & Steel Retainer Kit is a targeted solution for a specific set of performance objectives. It is essential for any K-series or F-series build where the RPM limit will exceed 8,500, where forced induction or nitrous is present, or where aftermarket camshafts with a lift over ~12mm are employed. For the street-driven vehicle on a stock cam and redline, it is overkill. But for the track weapon, the drag strip contender, or the high-boost street monster, it is a fundamental component of engine integrity. By mastering the physics of valve closure with superior materials and precision engineering, this kit provides the confidence to explore the upper limits of your Honda engine’s performance envelope, backed by the collaborative expertise of Brian Crower and PAC Racing Springs.
