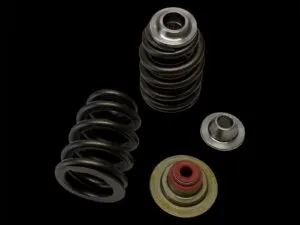

BC0930X – Can-Am X3 / ROTAX 900 ACE Beehive Spring/Steel Retainer Kit (NO SEAT)

In the relentless pursuit of horsepower and reliability within the forced-induction crucible of the Can-Am Maverick X3’s ROTAX 900 ACE engine, the valvetrain represents a critical, often overlooked, frontier. The stock valve springs and retainers are engineered for a broad spectrum of duty, balancing cost, noise, and longevity under factory power and RPM limits. However, for the enthusiast pushing beyond—whether through aggressive turbo tuning, high-RPM NA builds, or simply demanding absolute valvetrain stability—the factory components become the weakest link. This is where the BC0930X Beehive Spring & 4140 Steel Retainer Kit enters the arena. It is not a modification; it is a foundational upgrade engineered to transform your engine’s breathing ceiling and mechanical integrity. Designed as a direct, no-seat replacement for models utilizing the OE-style beehive spring, this kit from BC Racing is the definitive solution for eliminating valve float, securing valve timing, and unlocking the true high-RPM potential of your performance-built ROTAX mill.

The Valvetrain Bottleneck: Understanding the Need for the BC0930X

At elevated engine speeds, the valvetrain operates under extreme dynamic stress. The opening and closing of valves is a carefully orchestrated dance of acceleration and deceleration, controlled by the cam lobe and resisted by the valve spring. The stock valve spring must be compressed enough to allow full valve lift without coil bind, yet provide sufficient pressure to keep the lifter in contact with the cam lobe during the closing ramp—a phenomenon known as “valve float.” When valve float occurs, the valvetrain loses synchronization; the valve crashes back onto the seat uncontrolled, leading to immediate power loss, potentially catastrophic engine damage from piston-to-valve contact, and accelerated wear. The ROTAX 900 ACE, especially in turbocharged X3 applications making significant power over stock, exacerbates this issue with increased cylinder pressure fighting valve closure. The BC0930X kit directly attacks this limitation through a holistic redesign of the spring and retainer system.

Engineering the Upgrade: Beehive Springs & Forged Steel Retainers

The core of the BC0930X’s performance lies in its synergistic component design. The beehive-shaped springs offer a significant advantage over traditional cylindrical springs. Their tapered design, wider at the base and narrower at the top, reduces moving mass at the critical retainer end, lowering inertia. This allows for a higher natural frequency, making them more resistant to surge and harmonic instability at high RPM. Furthermore, BC Racing/PAC Racing springs within this kit are manufactured from premium chrome-silicon wire, shot-peened for fatigue resistance, and precisely calibrated to deliver increased seat and open pressure. This ensures positive valve closure against rising cylinder pressures and maintains cam follower contact.

Paired with these springs are matching 4140 chromoly steel retainers. The stock powdered metal retainers are adequate for OEM use but can flex and fail under the higher stresses of a performance spring. The 4140 steel retainers are significantly stronger and more rigid, providing a secure, unwavering platform for the spring. This combination—high-rate beehive spring and forged steel retainer—creates a valvetrain package that is lighter, stronger, and more responsive than the factory assembly, effectively raising the engine’s functional RPM limit and ensuring valve timing accuracy under boost.

Performance Benefits & Applications

Installing the BC0930X Kit is a transformative upgrade for specific, high-output scenarios. Its benefits are measurable and critical for engine survival and performance.

• Eliminates High-RPM Valve Float: The increased seat pressure maintains valvetrain control at engine speeds far beyond the stock capability, ensuring clean power delivery to the rev limiter.
• Enables Aggressive Turbo/Boost Tuning: Higher cylinder pressures from big turbo or tuned setups require more spring force to keep valves sealed during combustion. This kit provides that margin of safety.
• Supports Performance Camshaft Upgrades: More aggressive cam profiles with faster ramp rates demand a spring that can keep pace. The BC0930X is the necessary supporting mod for any aftermarket cam installation.
• Enhances Valvetrain Stability & Longevity: By controlling valve motion precisely, you reduce destructive harmonics and impact forces, leading to less wear on cam lobes, lifters, and valve seats.
• Direct Replacement for OEM Beehive Springs: For vehicles already using a beehive spring design, this is a straightforward upgrade requiring no additional machining or parts, just expert assembly.

This kit is essential for: Turbo systems exceeding ~200 HP, high-RPM naturally aspirated builds, engines with aftermarket camshafts, and any application where the existing valvetrain is suspected to be a limiting factor in power or reliability.

Vehicle Fitment & Installation Notes

Vehicle Fitment: The BC0930X Kit is engineered specifically for the Can-Am Maverick X3 models equipped with the ROTAX 900 ACE engine that utilize a beehive-style valve spring from the factory. It is crucial to verify your engine’s existing spring type before purchase. This kit does not include valve seats and is designed as a spring and retainer set only for applications where the stock beehive seat is retained.

Installation Warning: Valve spring replacement is a precision engine building task. It requires disassembly of the top end (cylinder head removal), proper valve spring compressor tools, and meticulous attention to detail. Incorrect installation, such as misaligned springs or improper shimming, can lead to immediate engine failure. It is highly recommended that this installation be performed by a qualified performance mechanic with experience in ROTAX engine platforms. Always check and set installed height specifications using appropriate shims to achieve the spring pressure recommended by your camshaft or engine builder.

Technical Specifications: BC0930X Kit

The Final Verdict on Valvetrain Security

For the serious Can-Am X3 builder, the valvetrain is not a system to be gambled with. The BC0930X Beehive Spring & Retainer Kit is a calculated, engineering-driven investment in your engine’s highest-performance potential and its fundamental durability. By addressing the dual weaknesses of spring pressure and retainer strength, it provides the mechanical confidence to explore the upper limits of boost and RPM. This upgrade is the bedrock upon which reliable, high-horsepower ROTAX 900 ACE engines are built. Before pushing your tune further or installing a more aggressive cam, securing the valvetrain with this kit is not just advisable—it is imperative. For a deeper dive into the physics of valvetrain dynamics and spring selection, consider this authoritative resource on valvetrain basics and spring selection from EngineLabs.
